ZF 0501.320.714 SCREW-IN SLEEVE
ZF Part Number: 0501.320.714 (also written as 0501320714 / 0501.320.714 / 0501 320 714)
Compatible ZF Transmission Models
This screw-in sleeve is used in the following ZF transmission models:
- ZF 4 WG 115
- ZF 4 WG 130
- ZF 4 WG 160
- ZF 6 WG 115
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Parking Brake | 180 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 2)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.214.894 — GEAR PUMP (Qty: 1)
- 0501.216.078 — BRAKE (Qty: 1)
- 0501.333.764 — PRESSURE FILTER (Qty: 1)
- 0730.365.279 — TYPE PLATE (Qty: 1)
- 4168.030.271 — CONVERTER (Qty: 1)
- 4656.201.075 — HOUS.FRONT SECT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.320.714?
ZF 0501.320.714 is an OEM screw-in sleeve produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 115, 4 WG 130, 4 WG 160, 6 WG 115. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.320.714?
This screw-in sleeve is found in 4 ZF transmission variants, including: 4 WG 115, 4 WG 130, 4 WG 160, 6 WG 115. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.320.714 installed in the transmission?
This screw-in sleeve is located in the parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 180 in the Parking Brake section.
How do I look up ZF part 0501.320.714?
This part can be found under several formats: 0501320714 / 0501.320.714 / 0501 320 714. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.320.714).
Where can I buy ZF 0501.320.714?
You can purchase genuine ZF 0501.320.714 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

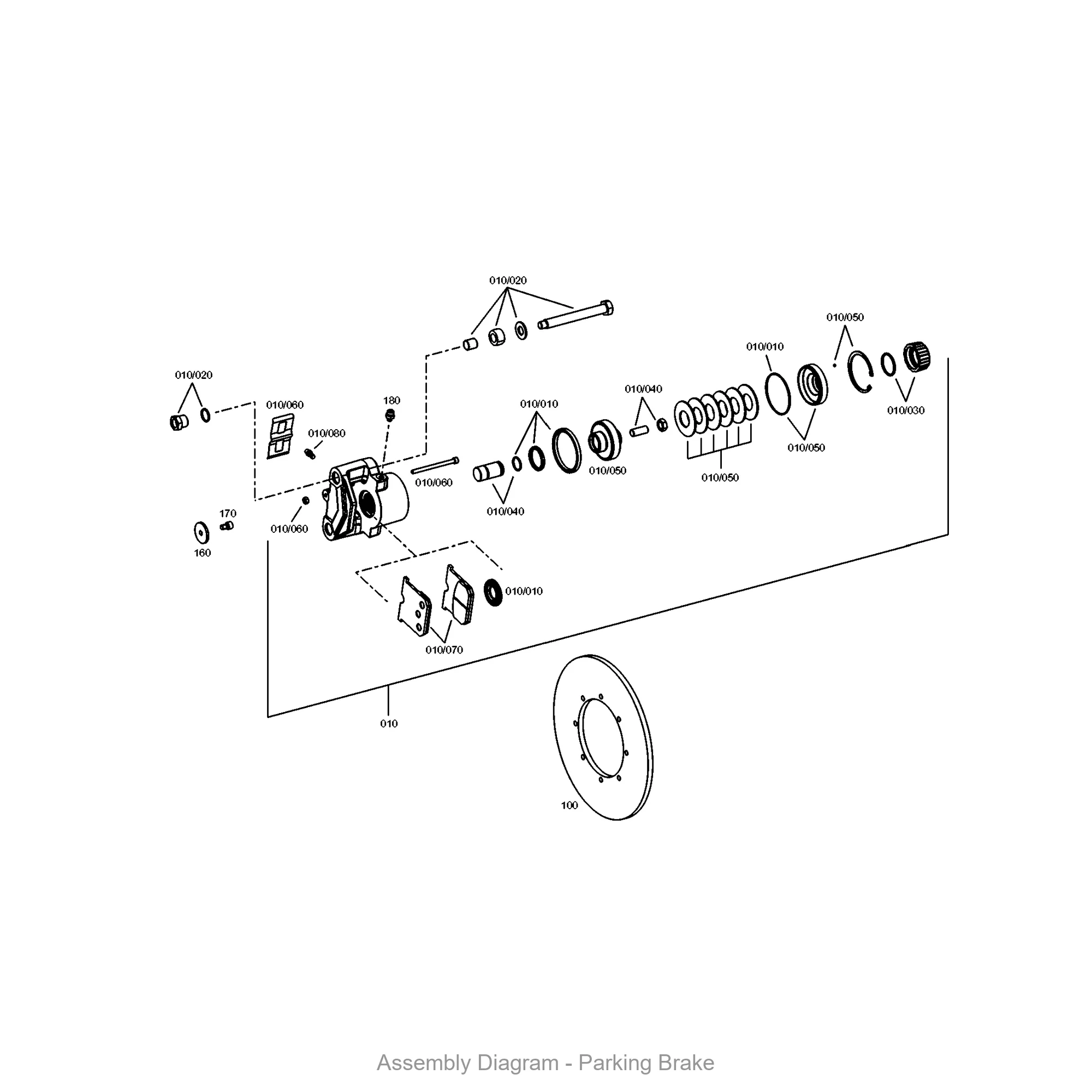

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.320.714 is located within the transmission assembly.
