ZF 0501.322.532 TEMPERATURE SENSOR
ZF Part Number: 0501.322.532 (also written as 0501322532 / 0501.322.532 / 0501 322 532)
OEM Cross Reference / Interchange Numbers
ZF 0501.322.532 (TEMPERATURE SENSOR) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860521041 | OEM Cross Ref |
| 徐工铲运RZ | 860332430 | OEM Cross Ref |
| 徐工铲运 | 860145616 | OEM Cross Ref |
| 徐工铲运 | 860569428 | OEM Cross Ref |
| 柳工 | SP123107 | OEM Cross Ref |
This ZF part (0501.322.532) directly replaces the following OEM numbers: 徐工铲运RZ: 860521041, 860332430; 徐工铲运: 860145616, 860569428; 柳工: SP123107. All listed cross-reference numbers are confirmed compatible with ZF 0501.322.532.
Compatible ZF Transmission Models
This temperature sensor is used in the following ZF transmission models:
- ZF 3 WG 261
- ZF 4 WG 261
- ZF 4 WG 261(4)
- ZF 4 WG 311
- ZF 5 WG 261
- ZF 5 WG 311
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Accessories | 010 | 1 |
| Accessories | 090 | 1 |
| Inductive Sensor | 030 | 1 |
| Inductive Sensor | 054 | 1 |
| Input | 260 | 1 |
| Input | 400 | 1 |
| Peripherals | 010 | 1 |
| Pressure Regulator | 160 | 1 |
| Sensors | 030 | 1 |
| Sensors | 070 | 1 |
| Sensors | 080 | 1 |
| Shift System | 054 | 1 |
Related Parts in Same Assembly
- 4475.280.023 — SCREW PLUG (Qty: 1)
- 4475.280.021 — SCREW PLUG (Qty: 1)
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0501.216.209 — RANGE SELECTOR (Qty: 1)
- 0636.015.124 — HEXAGON SCREW (Qty: 8)
- 0636.015.130 — HEXAGON SCREW (Qty: 8)
Frequently Asked Questions
What is ZF part number 0501.322.532?
ZF 0501.322.532 is an OEM temperature sensor produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 261, 4 WG 261, 4 WG 261(4), 4 WG 311, 5 WG 261. Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 0501.322.532?
This temperature sensor is found in 6 ZF transmission variants, including: 3 WG 261, 4 WG 261, 4 WG 261(4), 4 WG 311, 5 WG 261, 5 WG 311. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.322.532 installed in the transmission?
This temperature sensor is located in the temperature sensor area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 010 in the Accessories section.
How do I look up ZF part 0501.322.532?
This part can be found under several formats: 0501322532 / 0501.322.532 / 0501 322 532. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.322.532).
Where can I buy ZF 0501.322.532?
You can purchase ZF 0501.322.532 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

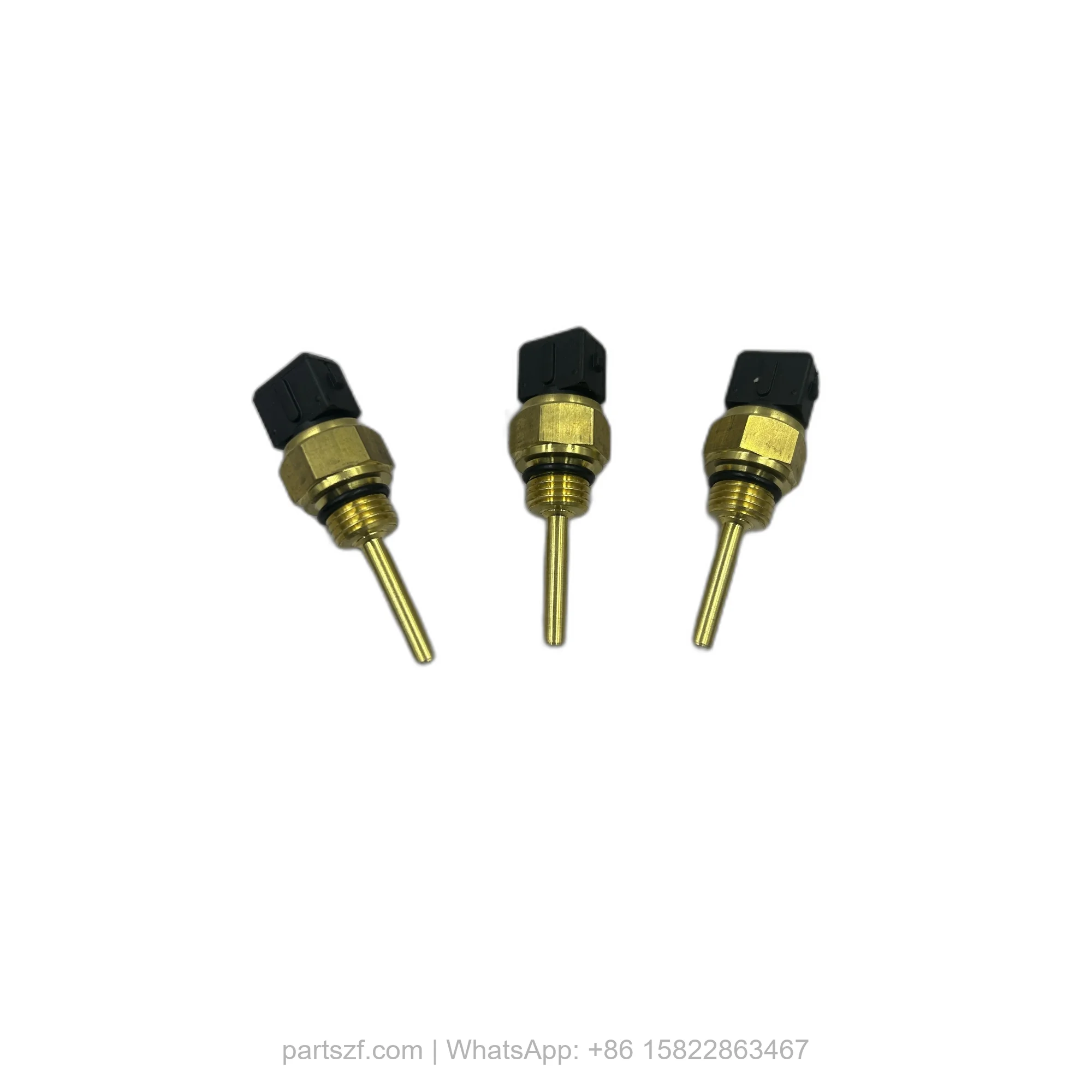

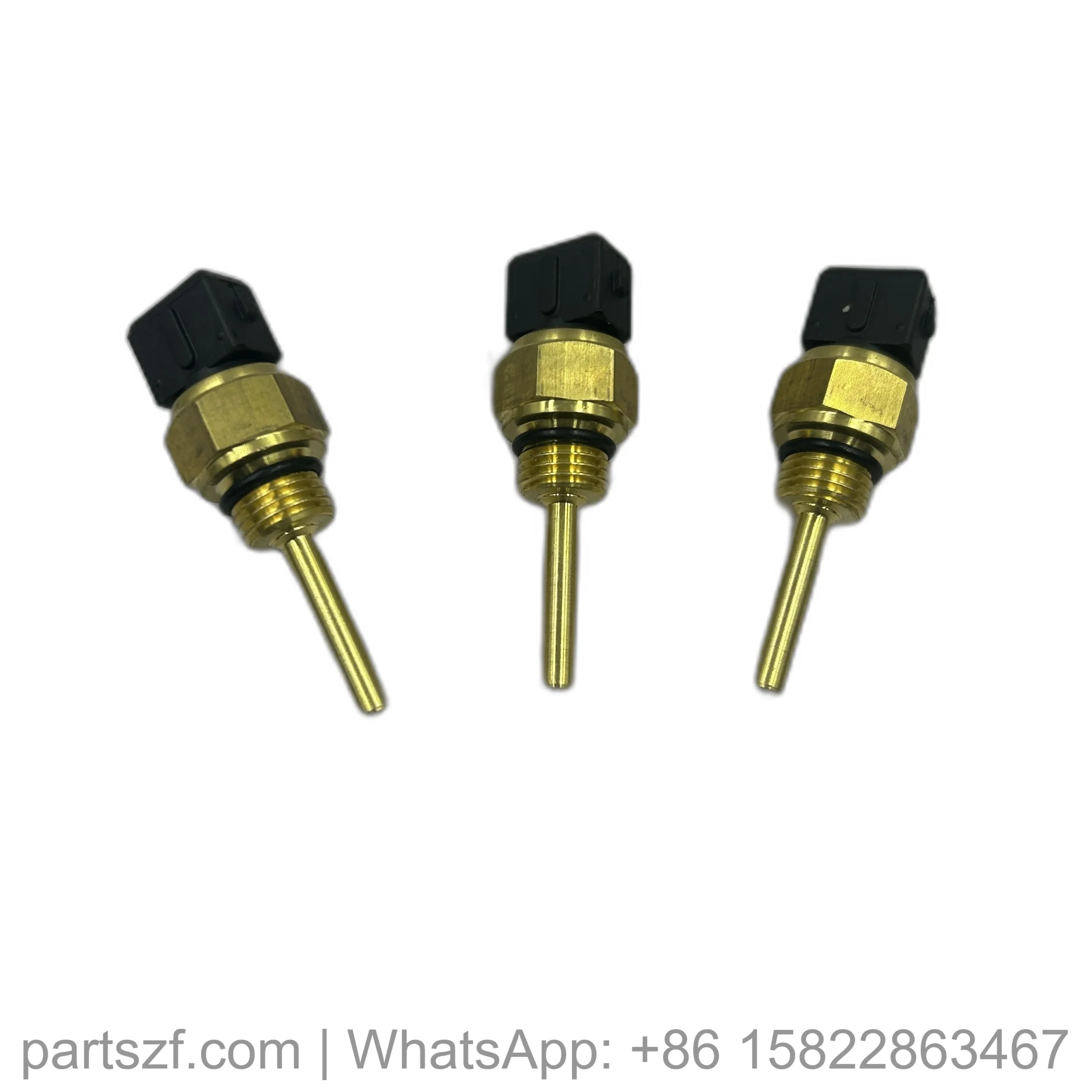

Product Photos

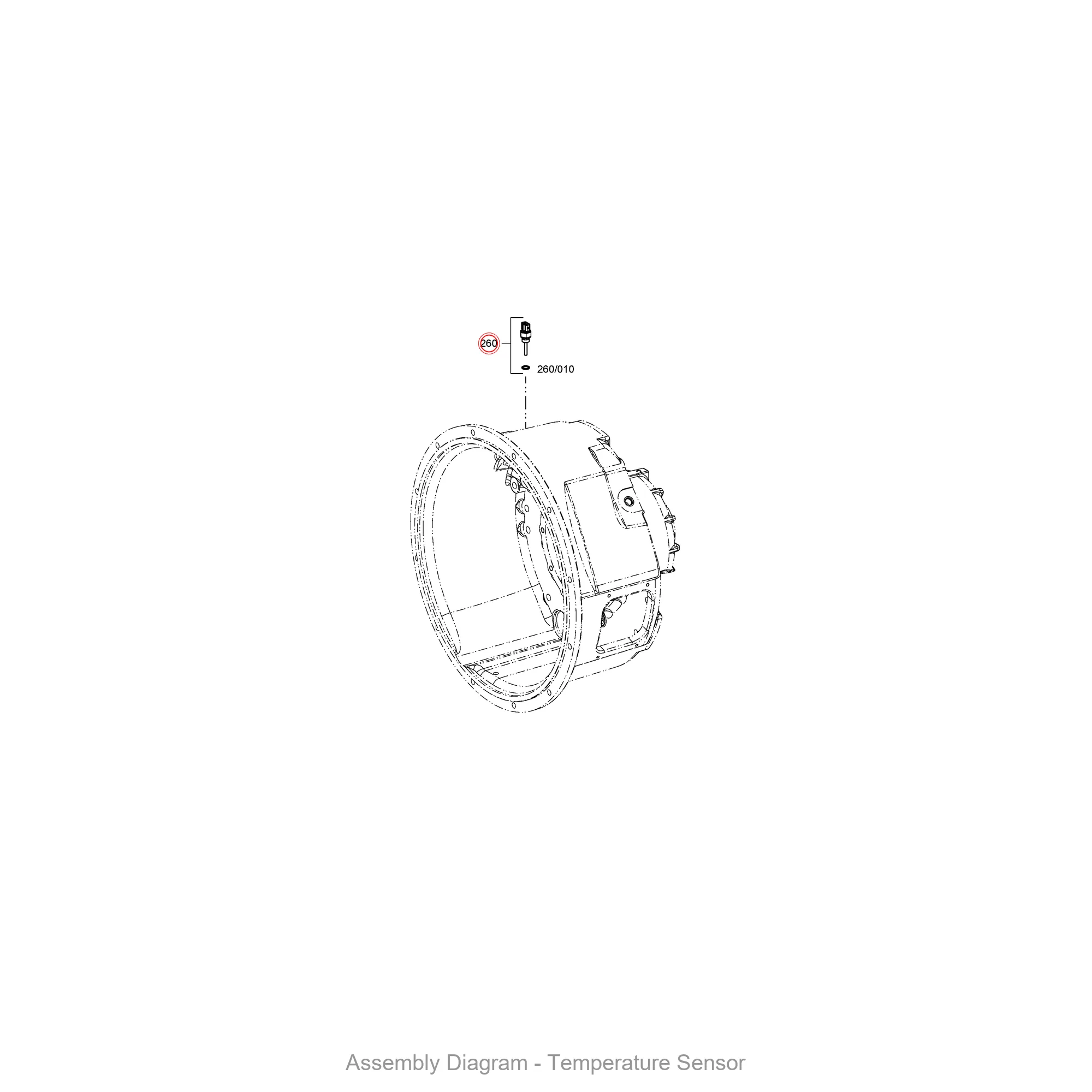

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.322.532 is located within the transmission assembly.
ZF 0501.322.532 Part Context
ZF 0501.322.532 is listed in the local BOM as TEMPERATURE SENSOR. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
3 WG 261, 4 WG 261, 4 WG 261(4), 4 WG 311, 5 WG 261, 5 WG 311
Cross Reference
860521041, 860332430, 860145616, 860569428, SP123107
Replacement Scenario
Use this temperature sensor listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0501.322.532 |
|---|---|
| Name | TEMPERATURE SENSOR |
| Sections | TEMPERATURE SENSOR |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
