ZF 0501.332.096 OUTER CLUTCH DISK
ZF Part Number: 0501.332.096 (also written as 0501332096 / 0501.332.096 / 0501 332 096)
OEM Cross Reference / Interchange Numbers
ZF 0501.332.096 (OUTER CLUTCH DISK) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860324863 | OEM Cross Ref |
| 徐工铲运 | 860558046 | OEM Cross Ref |
| 柳工 | SP177021 | OEM Cross Ref |
This ZF part (0501.332.096) directly replaces the following OEM numbers: 徐工铲运RZ: 860324863; 徐工铲运: 860558046; 柳工: SP177021. All listed cross-reference numbers are confirmed compatible with ZF 0501.332.096.
Compatible ZF Transmission Models
This outer clutch disk is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 4 WG 200(555)
- ZF 6 WG 180(555)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Clutch | 420 | 9 |
| Clutch | 440 | 8 |
| Coupling | 420 | 9 |
| Coupling | 440 | 8 |
| Coupling | 52.420 | 10 |
| Coupling | 52.440 | 8 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.104 — CONVERTER (Qty: 1)
- 4642.306.050 — COVER PLATE (Qty: 1)
- 4642.306.161 — VALVE HOUSING (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.231.059 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.333 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.332.096?
ZF 0501.332.096 is an OEM outer clutch disk produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.332.096?
This outer clutch disk is found in 6 ZF transmission variants, including: 3 WG 200, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555), 6 WG 180(555). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.332.096 installed in the transmission?
This outer clutch disk is located in the clutch, coupling area of the transmission. It appears in 18 different assembly configurations. In the service manual, look for position number 420 in the Clutch section.
How do I look up ZF part 0501.332.096?
This part can be found under several formats: 0501332096 / 0501.332.096 / 0501 332 096. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.332.096).
When should clutch disks be replaced?
Replace clutch disks when thickness is below the minimum specification in the ZF service manual, or if you observe slipping, burnt smell, or glazing on friction surfaces. Always replace the complete disk pack 鈥?never mix old and new disks.
Where can I buy ZF 0501.332.096?
You can purchase genuine ZF 0501.332.096 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

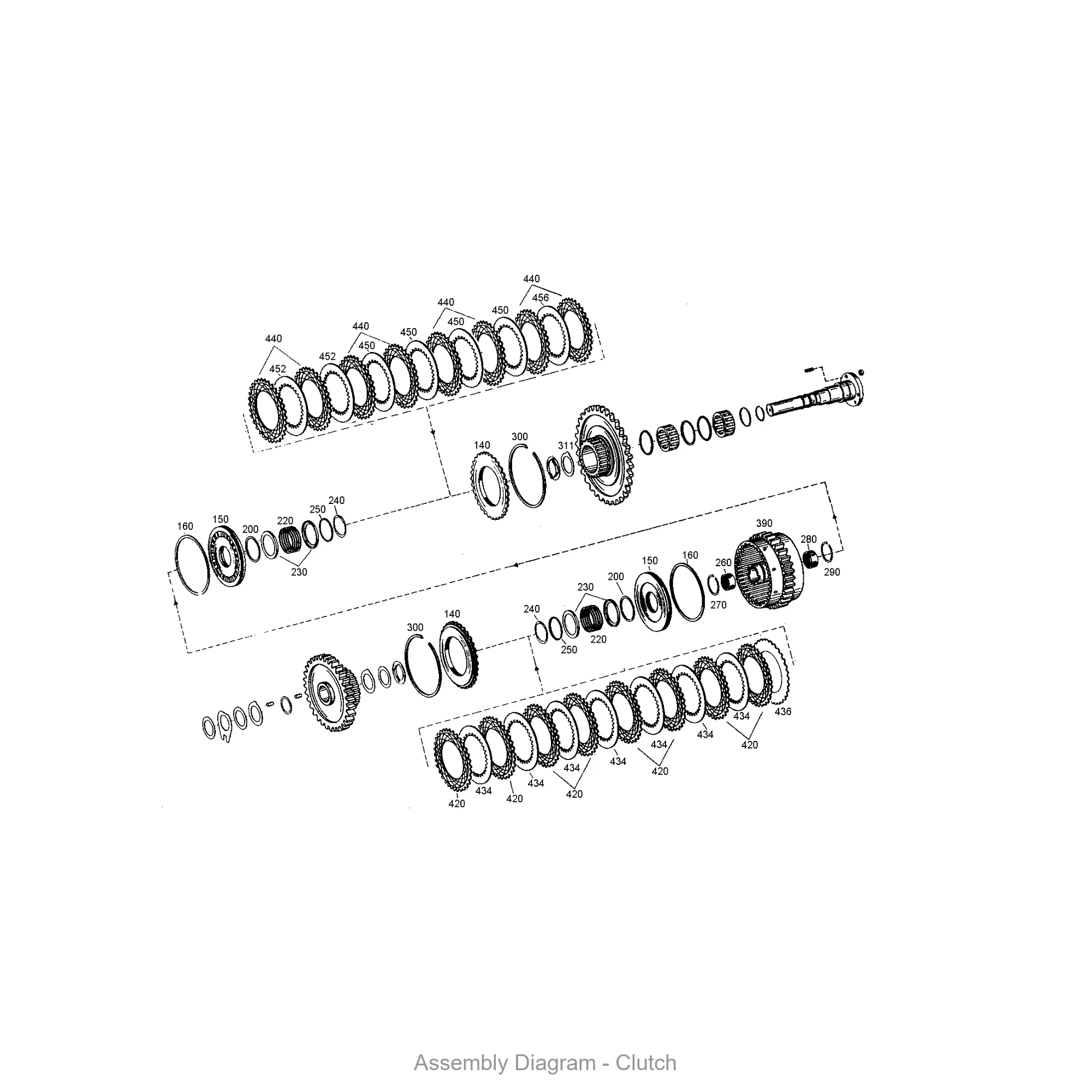

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.332.096 is located within the transmission assembly.
