ZF 0630.001.046 WASHER
ZF Part Number: 0630.001.046 (also written as 0630001046 / 0630.001.046 / 0630 001 046)
Compatible ZF Transmission Models
This washer is used in the following ZF transmission models:
- ZF 4 WG 260
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Shift System | 174 | 18 |
| Shift System | 235 | 18 |
| Shift System | 305 | 14 |
| Shift System | 345 | 14 |
| Shift System | 392 | 2 |
Related Parts in Same Assembly
- 5838.300.584 — REAR AXLE HOUS. (Qty: 1)
- 0636.102.752 — SCREW PLUG (Qty: 2)
- 0501.329.994 — OIL SIGHT GLASS (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 5838.300.204 — KERNL VERSCHLUSS (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.001.046?
ZF 0630.001.046 is an OEM washer produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 260. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.001.046?
This washer is found in 1 ZF transmission variants, including: 4 WG 260. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.001.046 installed in the transmission?
This washer is located in the shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 174 in the Shift System section.
How do I look up ZF part 0630.001.046?
This part can be found under several formats: 0630001046 / 0630.001.046 / 0630 001 046. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.001.046).
Where can I buy ZF 0630.001.046?
You can purchase genuine ZF 0630.001.046 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

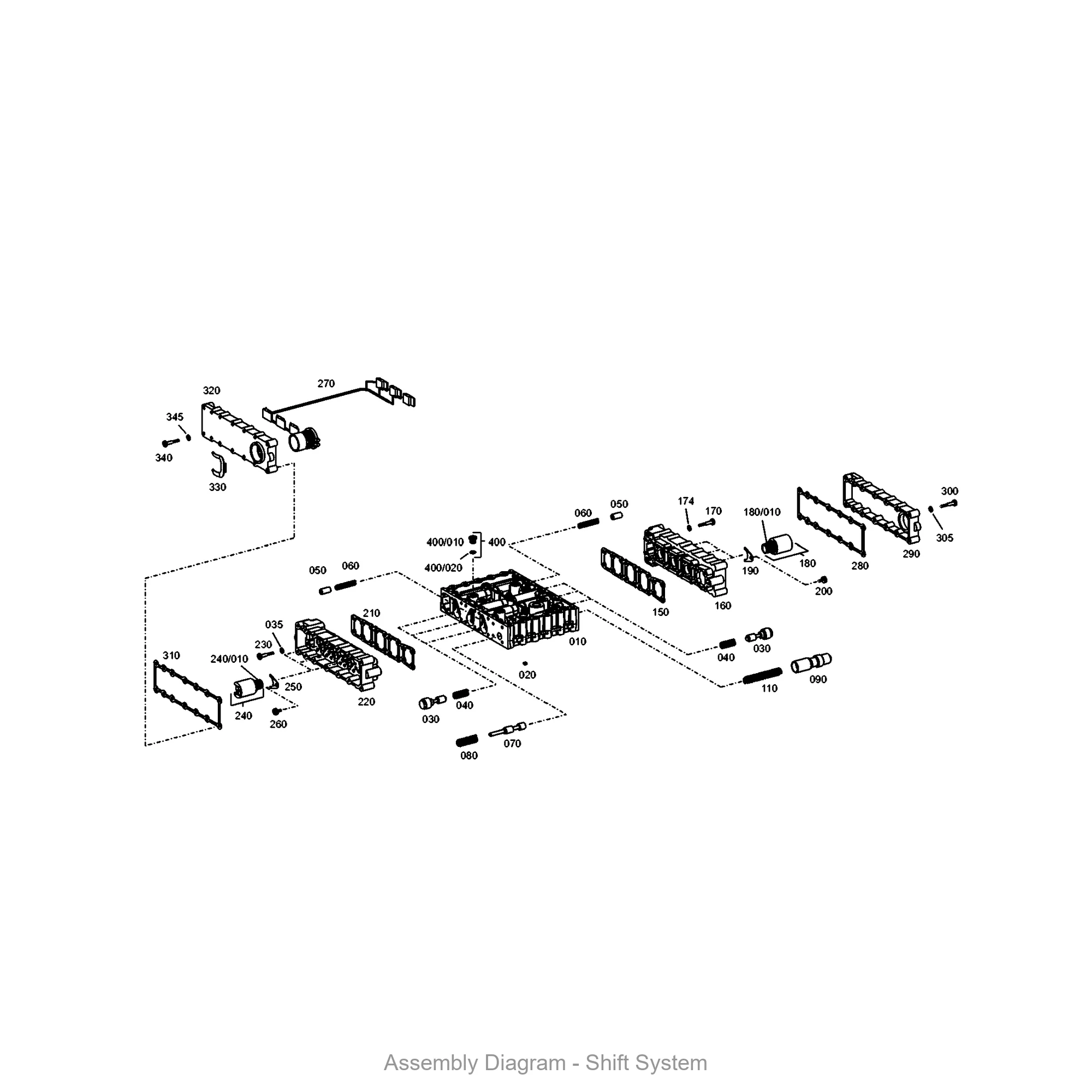

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.001.046 is located within the transmission assembly.
