ZF 0630.501.028 RETAINING RING
ZF Part Number: 0630.501.028 (also written as 0630501028 / 0630.501.028 / 0630 501 028)
OEM Cross Reference / Interchange Numbers
ZF 0630.501.028 (RETAINING RING) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860325009 | OEM Cross Ref |
| 徐工铲运 | 800364972 | OEM Cross Ref |
| 柳工 | SP107500 | OEM Cross Ref |
This ZF part (0630.501.028) directly replaces the following OEM numbers: 徐工铲运RZ: 860325009; 徐工铲运: 800364972; 柳工: SP107500. All listed cross-reference numbers are confirmed compatible with ZF 0630.501.028.
Compatible ZF Transmission Models
This retaining ring is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 4 WG 150
- ZF 4 WG 258
- ZF 4 WG 260
- ZF 4 WG 260(2)
- ZF 4 WG 260(4)
- ZF 4 WG 261
- ZF 4 WG 261(4)
- ZF 4 WG 308
- ZF 4 WG 310
- ZF 4 WG 310(4)
- ZF 4 WG 311
- ZF 5 WG 260
- ZF 5 WG 310
- ZF 6 WG 150
…and 4 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Abtrieb | 180 | 18 |
| Emergency Steering Pump | 230 | 1 |
| Front Wh.Drive | 480 | 1 |
| Input | 060 | 1 |
| Output | 180 | 18 |
| Output | 210 | 1 |
| Output | 210/180 | 6 |
| Output | 220 | 1 |
| Output | 230 | 1 |
| Power Take Off | 040 | 1 |
| Power Take Off | 080 | 1 |
| Power Take Off | 55.080 | 1 |
Related Parts in Same Assembly
- 0637.101.206 — BULKHEAD UNION (Qty: 1)
- 2052.209.109 — DIFFERENTIAL HOUSING (Qty: 1)
- 2094.303.055 — COUNTERSHAFT (Qty: 1)
- 2094.304.080 — MAIN SHAFT (Qty: 1)
- 2094.306.026 — GEARSHIFT SHAFT (Qty: 1)
- 2094.313.068 — CLUTCH SHAFT (Qty: 1)
- 2094.340.003 — LIFTING SHAFT (Qty: 1)
- 2094.352.046 — VALVE HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.501.028?
ZF 0630.501.028 is an OEM retaining ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 4 WG 150, 4 WG 258, 4 WG 260, 4 WG 260(2). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.501.028?
This retaining ring is found in 19 ZF transmission variants, including: 3 WG 260, 4 WG 150, 4 WG 258, 4 WG 260, 4 WG 260(2), 4 WG 260(4), 4 WG 261, 4 WG 261(4), 4 WG 308, 4 WG 310. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.501.028 installed in the transmission?
This retaining ring is located in the abtrieb, front wh.drive, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 180 in the Abtrieb section.
How do I look up ZF part 0630.501.028?
This part can be found under several formats: 0630501028 / 0630.501.028 / 0630 501 028. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.501.028).
Where can I buy ZF 0630.501.028?
You can purchase genuine ZF 0630.501.028 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

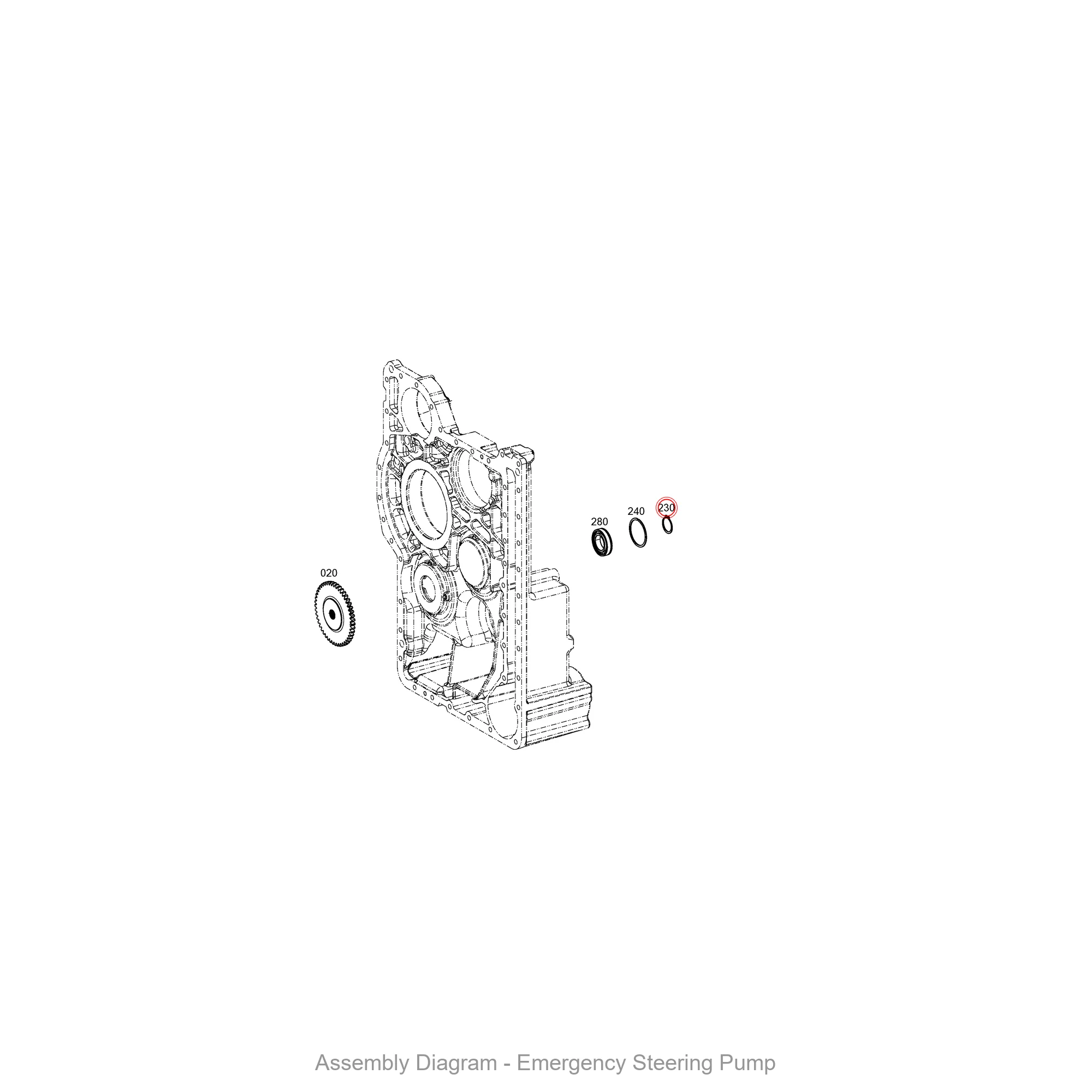

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.501.028 is located within the transmission assembly.
