ZF 0634.307.747 GROOVED RING
ZF Part Number: 0634.307.747 (also written as 0634307747 / 0634.307.747 / 0634 307 747)
Compatible ZF Transmission Models
This grooved ring is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 4 WG 65
- ZF 6 WG 200(555/5)
- ZF 6 WG 250
- ZF 6 WG 260
- ZF 6 WG 260(4)
- ZF 6 WG 310
- ZF 6 WG 65
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Pressure Regulator | 028 | 2 |
| Pressure Regulator | 20.028 | 2 |
| Pressure Regulator | 490 | 2 |
Related Parts in Same Assembly
- 4616.101.111 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.405 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.048 — INPUT (Qty: 1)
- 4616.102.420 — INPUT (Qty: 1)
- 4616.103.048 — OUTPUT (Qty: 1)
- 4616.105.047 — OUTPUT (Qty: 1)
- 4616.106.016 — SHIFT SYSTEM (Qty: 1)
- 4616.159.022 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 0634.307.747?
ZF 0634.307.747 is an OEM grooved ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 3 WG 310, 4 WG 65, 6 WG 200(555/5), 6 WG 250. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0634.307.747?
This grooved ring is found in 9 ZF transmission variants, including: 3 WG 260, 3 WG 310, 4 WG 65, 6 WG 200(555/5), 6 WG 250, 6 WG 260, 6 WG 260(4), 6 WG 310, 6 WG 65. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0634.307.747 installed in the transmission?
This grooved ring is located in the pressure regulator area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 028 in the Pressure Regulator section.
How do I look up ZF part 0634.307.747?
This part can be found under several formats: 0634307747 / 0634.307.747 / 0634 307 747. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0634.307.747).
Where can I buy ZF 0634.307.747?
You can purchase genuine ZF 0634.307.747 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

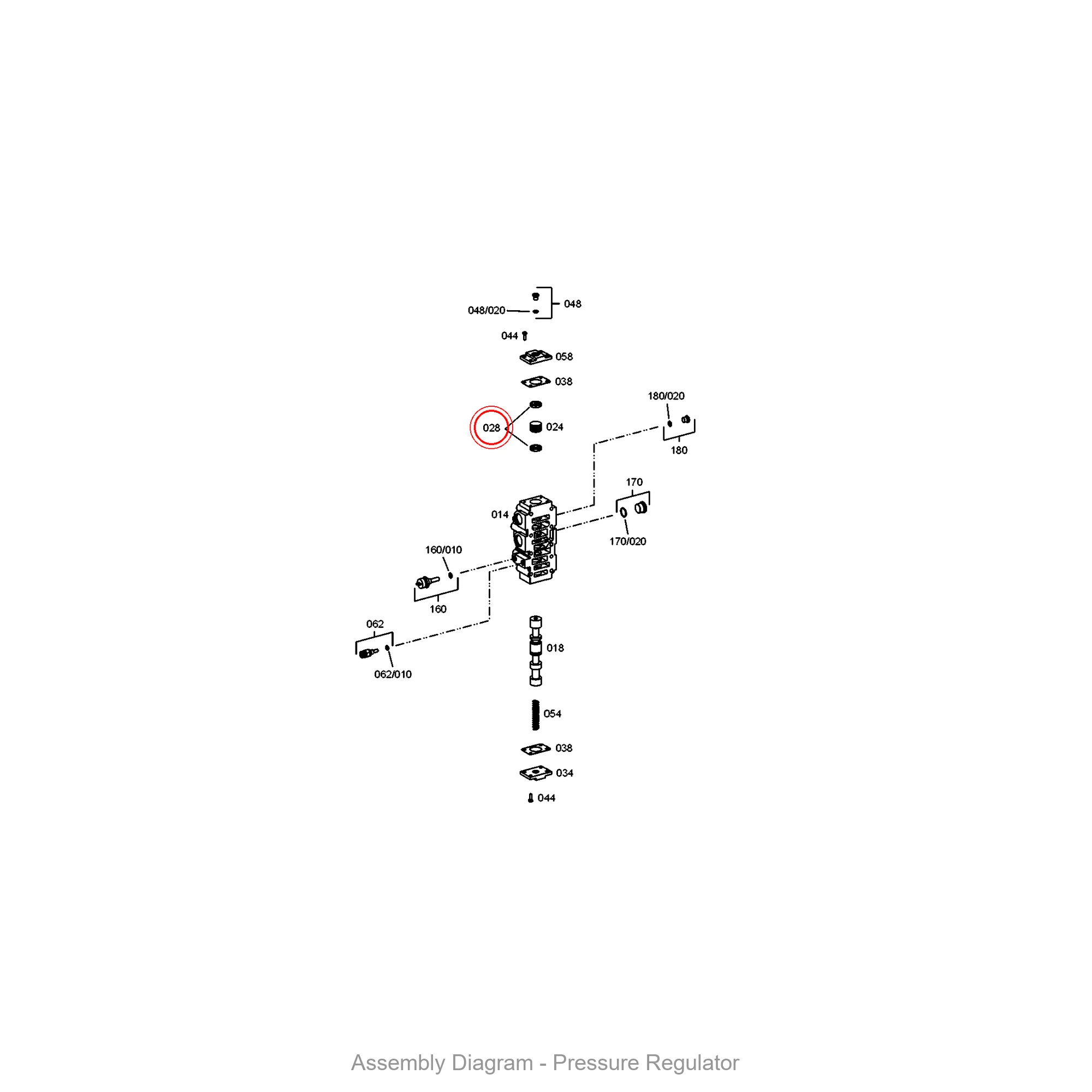

Exploded View / Assembly Diagram
The diagram below shows where ZF 0634.307.747 is located within the transmission assembly.
