ZF 0635.290.058 CASING DISK
ZF Part Number: 0635.290.058 (also written as 0635290058 / 0635.290.058 / 0635 290 058)
Compatible ZF Transmission Models
This casing disk is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 180(500)
- ZF 6 WG 180(555)
- ZF 6 WG 200
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 270 | 2 |
| Converter | 32.270 | 2 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4166.232.027 — CIRCUIT COVER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.090 — FILLER TUBE (Qty: 1)
- 4642.301.207 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.118 — INPUT SHAFT (Qty: 1)
- 4642.303.095 — OUTPUT SHAFT (Qty: 1)
- 4642.305.011 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0635.290.058?
ZF 0635.290.058 is an OEM casing disk produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 200(555/5), 6 WG 150, 6 WG 180(500), 6 WG 180(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0635.290.058?
This casing disk is found in 10 ZF transmission variants, including: 3 WG 200, 4 WG 200(555/5), 6 WG 150, 6 WG 180(500), 6 WG 180(555), 6 WG 200, 6 WG 200(500), 6 WG 200(555), 6 WG 200(555/4), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0635.290.058 installed in the transmission?
This casing disk is located in the converter area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 270 in the Converter section.
How do I look up ZF part 0635.290.058?
This part can be found under several formats: 0635290058 / 0635.290.058 / 0635 290 058. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0635.290.058).
When should clutch disks be replaced?
Replace clutch disks when thickness is below the minimum specification in the ZF service manual, or if you observe slipping, burnt smell, or glazing on friction surfaces. Always replace the complete disk pack 鈥?never mix old and new disks.
Where can I buy ZF 0635.290.058?
You can purchase genuine ZF 0635.290.058 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

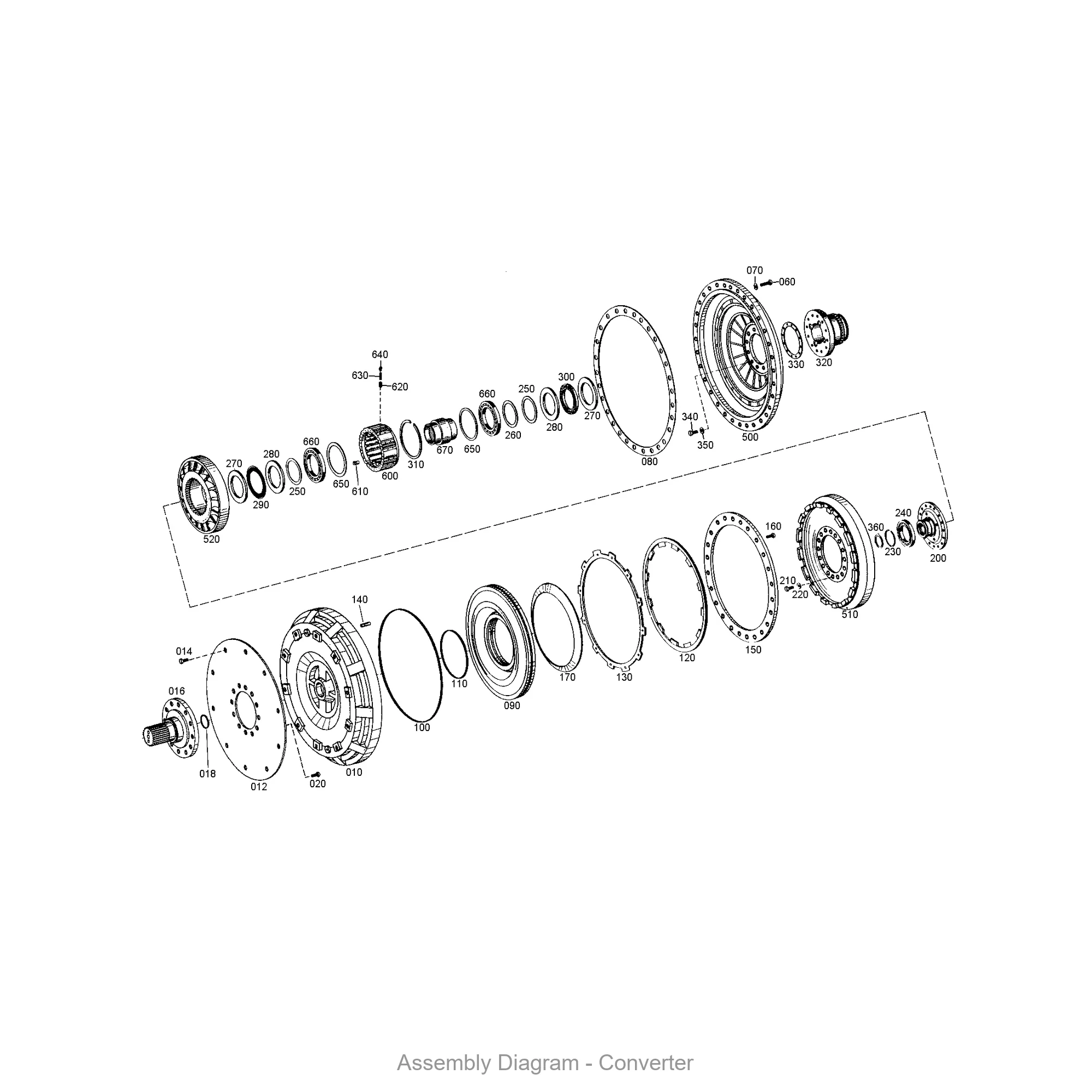

Exploded View / Assembly Diagram
The diagram below shows where ZF 0635.290.058 is located within the transmission assembly.
