ZF 0636.102.496 STUD
ZF Part Number: 0636.102.496 (also written as 0636102496 / 0636.102.496 / 0636 102 496)
OEM Cross Reference / Interchange Numbers
ZF 0636.102.496 (STUD) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 柳工 | SP155059 | OEM Cross Ref |
If you are looking for 柳工 SP155059, the correct ZF original part number is 0636.102.496. This is a 100% genuine ZF replacement, guaranteed to be fully compatible with 柳工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This stud is used in the following ZF transmission models:
- ZF 4 WG 115
- ZF 6 WG 115
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Power Take Off | 230 | 2 |
| Shift System | 050 | 15 |
| Shift System | 051 | 14 |
| Shift System | 080 | 19 |
| Transmission Housing | 240 | 12 |
| Transmission Housing | 280 | 12 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 2)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.214.894 — GEAR PUMP (Qty: 1)
- 0501.333.764 — PRESSURE FILTER (Qty: 1)
- 4168.030.267 — CONVERTER (Qty: 1)
- 4651.231.011 — OIL DIPSTICK (Qty: 1)
- 4656.201.075 — HOUS.FRONT SECT (Qty: 1)
- 4656.303.022 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0636.102.496?
ZF 0636.102.496 is an OEM stud produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 115, 6 WG 115. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0636.102.496?
This stud is found in 2 ZF transmission variants, including: 4 WG 115, 6 WG 115. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0636.102.496 installed in the transmission?
This stud is located in the shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 230 in the Power Take Off section.
How do I look up ZF part 0636.102.496?
This part can be found under several formats: 0636102496 / 0636.102.496 / 0636 102 496. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0636.102.496).
Where can I buy ZF 0636.102.496?
You can purchase genuine ZF 0636.102.496 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

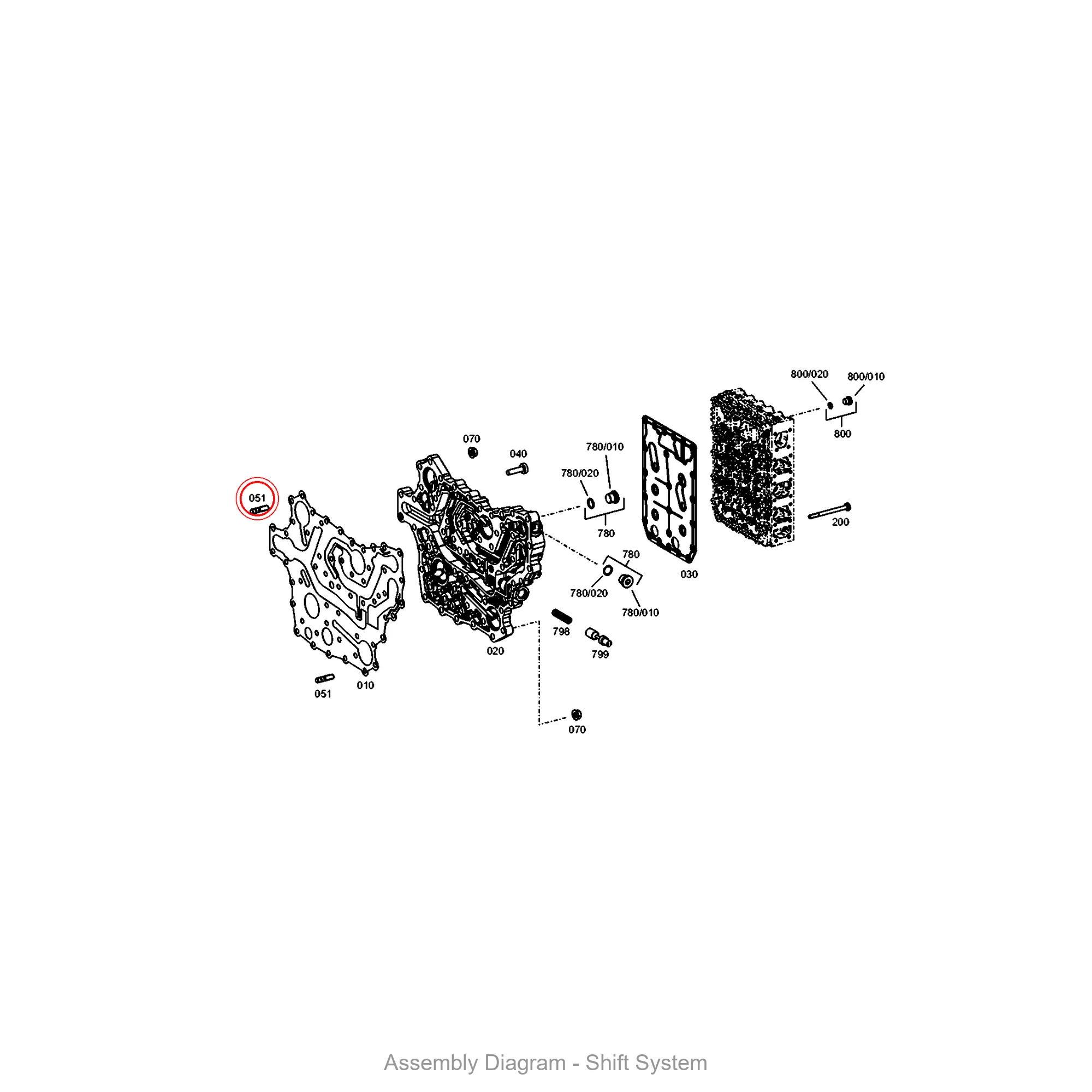

Exploded View / Assembly Diagram
The diagram below shows where ZF 0636.102.496 is located within the transmission assembly.
