ZF 0730.011.028 SUPPORTING RING
ZF Part Number: 0730.011.028 (also written as 0730011028 / 0730.011.028 / 0730 011 028)
OEM Cross Reference / Interchange Numbers
ZF 0730.011.028 (SUPPORTING RING) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运 | 860521008 | OEM Cross Ref |
| 柳工 | SP155046 | OEM Cross Ref |
This ZF part (0730.011.028) directly replaces the following OEM numbers: 徐工铲运: 860521008; 柳工: SP155046. All listed cross-reference numbers are confirmed compatible with ZF 0730.011.028.
Compatible ZF Transmission Models
This supporting ring is used in the following ZF transmission models:
- ZF 4 WG 115
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Clutch | 040/080 | 1 |
| Clutch | 080/150 | 1 |
| Coupling | 030/080 | 1 |
| Coupling | 040/080 | 1 |
| Coupling | 080/150 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 2)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.214.894 — GEAR PUMP (Qty: 1)
- 0501.333.764 — PRESSURE FILTER (Qty: 1)
- 4168.030.267 — CONVERTER (Qty: 1)
- 4651.231.011 — OIL DIPSTICK (Qty: 1)
- 4656.201.075 — HOUS.FRONT SECT (Qty: 1)
- 4656.303.022 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0730.011.028?
ZF 0730.011.028 is an OEM supporting ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 115. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0730.011.028?
This supporting ring is found in 1 ZF transmission variants, including: 4 WG 115. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0730.011.028 installed in the transmission?
This supporting ring is located in the clutch area of the transmission. It appears in 15 different assembly configurations. In the service manual, look for position number 040/080 in the Clutch section.
How do I look up ZF part 0730.011.028?
This part can be found under several formats: 0730011028 / 0730.011.028 / 0730 011 028. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0730.011.028).
Where can I buy ZF 0730.011.028?
You can purchase genuine ZF 0730.011.028 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

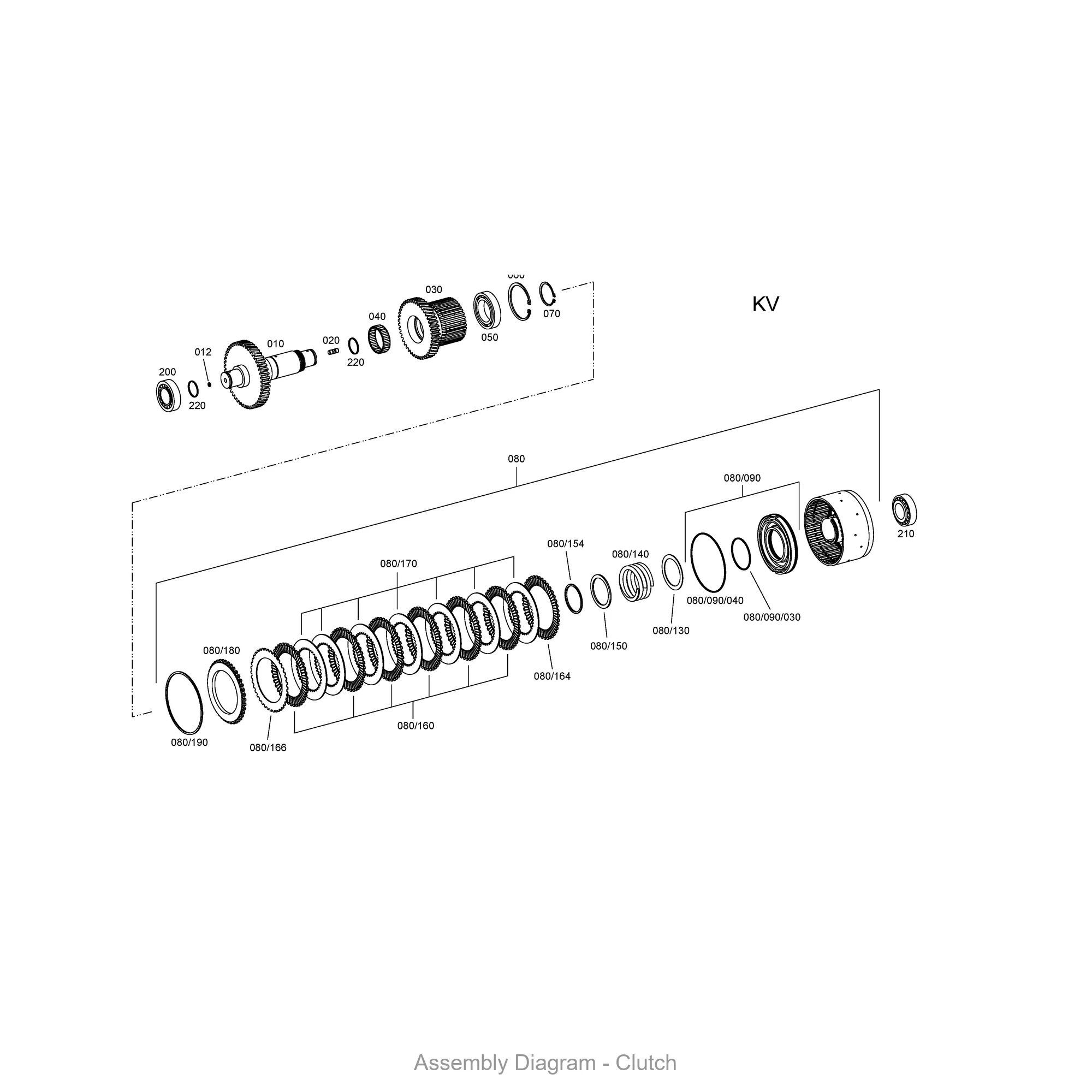

Exploded View / Assembly Diagram
The diagram below shows where ZF 0730.011.028 is located within the transmission assembly.
