ZF 0730.102.611 ADJUSTMENT PLATE
ZF Part Number: 0730.102.611 (also written as 0730102611 / 0730.102.611 / 0730 102 611)
Compatible ZF Transmission Models
This adjustment plate is used in the following ZF transmission models:
- ZF 3 WG 201
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 181
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 6 WG 181
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/5)
- ZF 6 WG 201
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Engine Connection | 518/030 | 1 |
Related Parts in Same Assembly
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4168.030.105 — CONVERTER (Qty: 1)
- 4642.307.005 — SPEEDO CONN.PCE (Qty: 1)
- 4644.221.196 — SUCTION TUBE (Qty: 1)
- 4644.231.023 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.226 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.229 — INPUT SHAFT (Qty: 1)
- 4644.303.239 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0730.102.611?
ZF 0730.102.611 is an OEM adjustment plate produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 201, 4 WG 180, 4 WG 180(500), 4 WG 181, 4 WG 200(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0730.102.611?
This adjustment plate is found in 10 ZF transmission variants, including: 3 WG 201, 4 WG 180, 4 WG 180(500), 4 WG 181, 4 WG 200(555), 4 WG 200(555/5), 6 WG 181, 6 WG 200(555), 6 WG 200(555/5), 6 WG 201. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0730.102.611 installed in the transmission?
This adjustment plate is located in the engine connection area of the transmission. It appears in 19 different assembly configurations. In the service manual, look for position number 518/030 in the Engine Connection section.
How do I look up ZF part 0730.102.611?
This part can be found under several formats: 0730102611 / 0730.102.611 / 0730 102 611. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0730.102.611).
Where can I buy ZF 0730.102.611?
You can purchase genuine ZF 0730.102.611 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

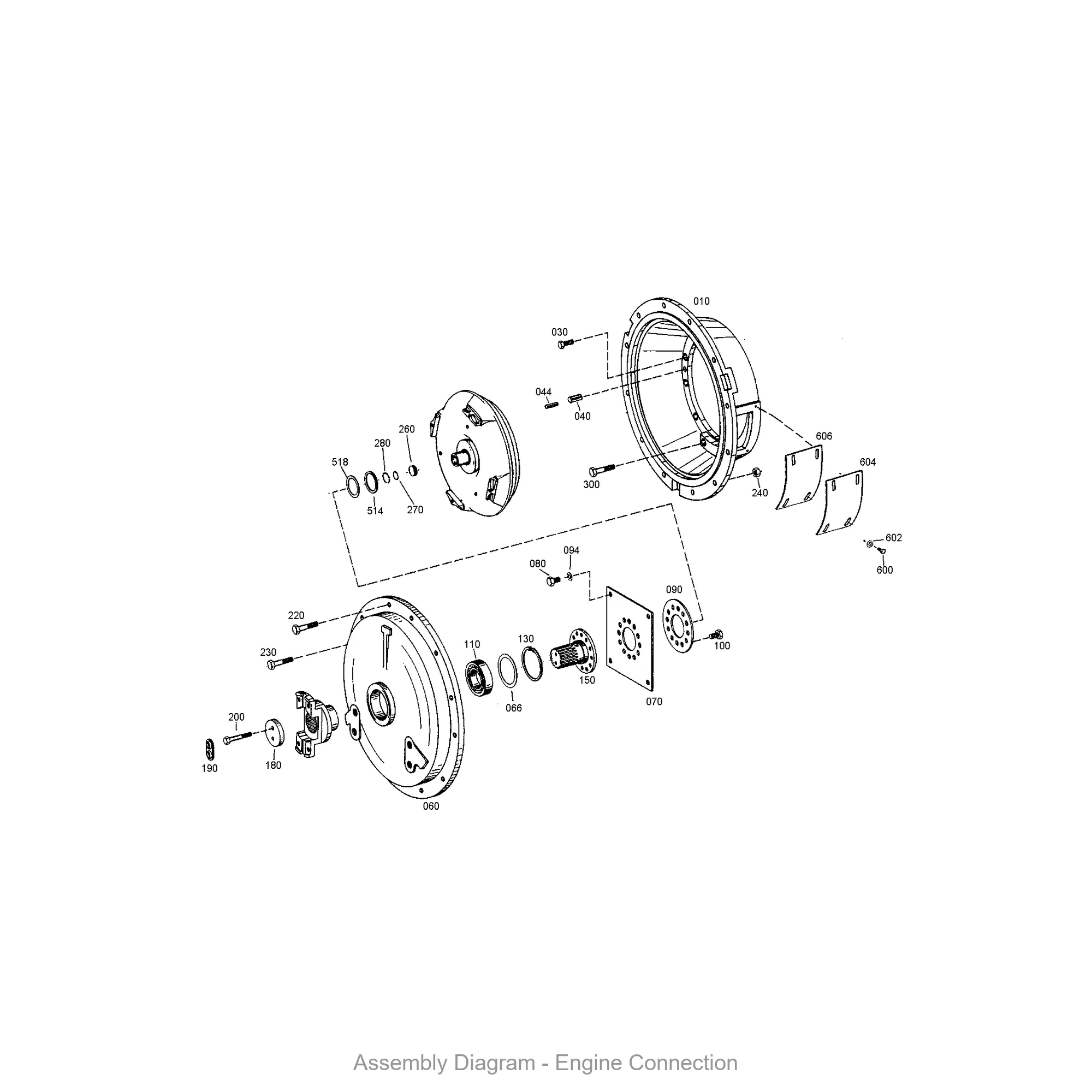

Exploded View / Assembly Diagram
The diagram below shows where ZF 0730.102.611 is located within the transmission assembly.
