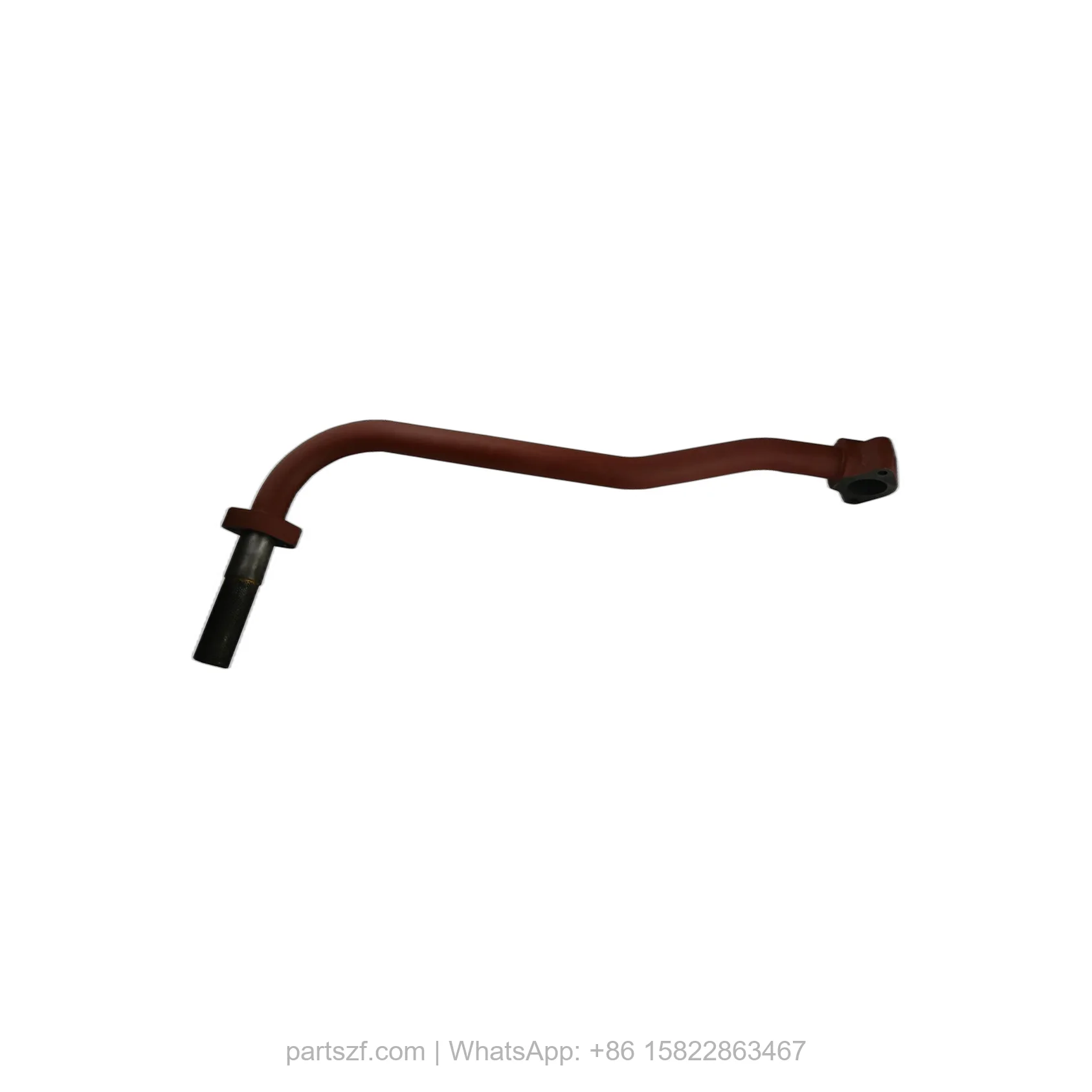

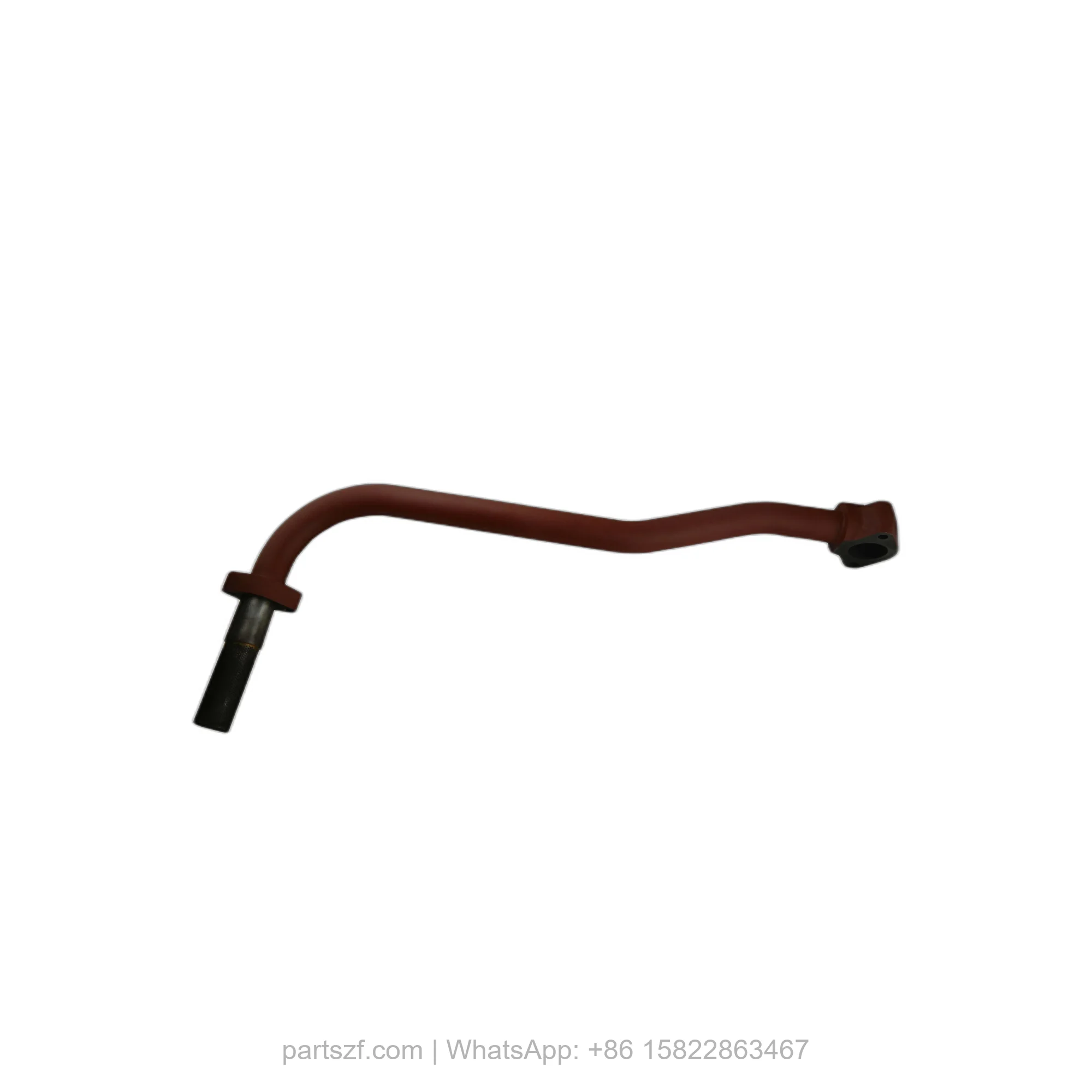

ZF 4644.221.196 SUCTION TUBE
ZF Part Number: 4644.221.196 (also written as 4644221196 / 4644.221.196 / 4644 221 196)
OEM Cross Reference / Interchange Numbers
ZF 4644.221.196 (SUCTION TUBE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860324819 | OEM Cross Ref |
| 徐工铲运 | 860116234 | OEM Cross Ref |
| 山东临工 | 7200002230 | OEM Cross Ref |
| 柳工 | SP100415 | OEM Cross Ref |
| 柳工 | SP100415RE | OEM Cross Ref |
This ZF part (4644.221.196) directly replaces the following OEM numbers: 徐工铲运RZ: 860324819; 徐工铲运: 860116234; 山东临工: 7200002230. All listed cross-reference numbers are confirmed compatible with ZF 4644.221.196.
Compatible ZF Transmission Models
This suction tube is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 180
- ZF 4 WG 180(555)
- ZF 4 WG 200
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Oil Pipe | 010 | 1 |
| Oil Pipe | 21.010 | 1 |
Related Parts in Same Assembly
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4168.030.105 — CONVERTER (Qty: 1)
- 4642.307.005 — SPEEDO CONN.PCE (Qty: 1)
- 4644.231.023 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.226 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.229 — INPUT SHAFT (Qty: 1)
- 4644.303.239 — OUTPUT SHAFT (Qty: 1)
- 4644.305.009 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.221.196?
ZF 4644.221.196 is an OEM suction tube produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 180, 4 WG 180(555), 4 WG 200, 4 WG 200(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.221.196?
This suction tube is found in 6 ZF transmission variants, including: 3 WG 200, 4 WG 180, 4 WG 180(555), 4 WG 200, 4 WG 200(555), 4 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.221.196 installed in the transmission?
This suction tube is located in the oil pipe area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 010 in the Oil Pipe section.
How do I look up ZF part 4644.221.196?
This part can be found under several formats: 4644221196 / 4644.221.196 / 4644 221 196. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.221.196).
Where can I buy ZF 4644.221.196?
You can purchase genuine ZF 4644.221.196 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.
