ZF 0737.835.017 UNION SCREW
ZF Part Number: 0737.835.017 (also written as 0737835017 / 0737.835.017 / 0737 835 017)
Compatible ZF Transmission Models
This union screw is used in the following ZF transmission models:
- ZF 4 WG 180(500)
- ZF 4 WG 181
- ZF 4 WG 200(555/5)
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 201
- ZF 6 WG 65
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Countershaft | 290 | 1 |
| Oil Pipe | 060 | 1 |
| Oil Pipe | 21.740 | 2 |
| Oil Pipe | 410 | 1 |
Related Parts in Same Assembly
- 4616.500.216 — WG 65 (Qty: 1)
- 0636.011.038 — HEXAGON SCREW (Qty: 16)
- 0636.016.015 — HEXAGON SCREW (Qty: 15)
- 0631.306.085 — CYLINDRICAL PIN (Qty: 1)
- 0634.313.118 — O-RING (Qty: 2)
- 0732.611.049 — FILTER INSERT (Qty: 1)
- 0634.303.718 — O-RING (Qty: 1)
- 0636.610.082 — STUD (Qty: 4)
Frequently Asked Questions
What is ZF part number 0737.835.017?
ZF 0737.835.017 is an OEM union screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 180(500), 4 WG 181, 4 WG 200(555/5), 6 WG 200(500), 6 WG 200(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0737.835.017?
This union screw is found in 7 ZF transmission variants, including: 4 WG 180(500), 4 WG 181, 4 WG 200(555/5), 6 WG 200(500), 6 WG 200(555), 6 WG 201, 6 WG 65. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0737.835.017 installed in the transmission?
This union screw is located in the countershaft, oil pipe area of the transmission. It appears in 29 different assembly configurations. In the service manual, look for position number 290 in the Countershaft section.
How do I look up ZF part 0737.835.017?
This part can be found under several formats: 0737835017 / 0737.835.017 / 0737 835 017. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0737.835.017).
Where can I buy ZF 0737.835.017?
You can purchase genuine ZF 0737.835.017 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

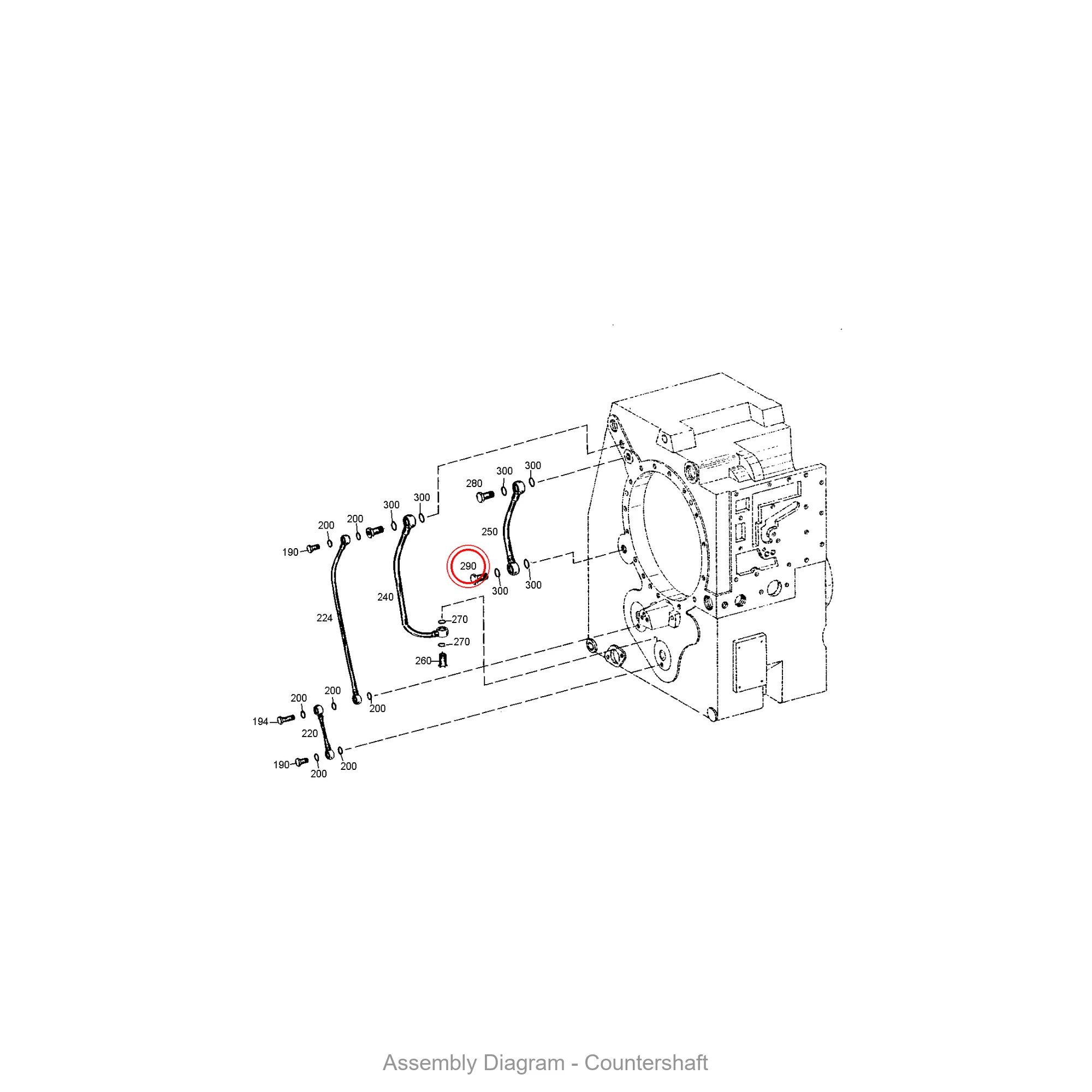

Exploded View / Assembly Diagram
The diagram below shows where ZF 0737.835.017 is located within the transmission assembly.
