ZF 0734.317.252 RECTANGULAR RING
ZF Part Number: 0734.317.252 (also written as 0734317252 / 0734.317.252 / 0734 317 252)
OEM Cross Reference / Interchange Numbers
ZF 0734.317.252 (RECTANGULAR RING) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工筑路 | 860119324 | OEM Cross Ref |
| 徐工铲运RZ | 860324947 | OEM Cross Ref |
| 徐工铲运 | 860116300 | OEM Cross Ref |
| 山东临工 | 7200001478 | OEM Cross Ref |
| 柳工 | SP100220 | OEM Cross Ref |
This ZF part (0734.317.252) directly replaces the following OEM numbers: 徐工筑路: 860119324; 徐工铲运RZ: 860324947; 徐工铲运: 860116300. All listed cross-reference numbers are confirmed compatible with ZF 0734.317.252.
Compatible ZF Transmission Models
This rectangular ring is used in the following ZF transmission models:
- ZF 4 WG 158
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 180(555)
- ZF 6 WG 150
- ZF 6 WG 158
- ZF 6 WG 180(500)
- ZF 6 WG 180(555)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Input | 070 | 2 |
| Kit Seal Kit | 100 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4166.232.027 — CIRCUIT COVER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.090 — FILLER TUBE (Qty: 1)
- 4642.301.207 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.118 — INPUT SHAFT (Qty: 1)
- 4642.303.095 — OUTPUT SHAFT (Qty: 1)
- 4642.305.011 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0734.317.252?
ZF 0734.317.252 is an OEM rectangular ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 158, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 6 WG 150. Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 0734.317.252?
This rectangular ring is found in 8 ZF transmission variants, including: 4 WG 158, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 6 WG 150, 6 WG 158, 6 WG 180(500), 6 WG 180(555). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0734.317.252 installed in the transmission?
This rectangular ring is located in the input area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 070 in the Input section.
How do I look up ZF part 0734.317.252?
This part can be found under several formats: 0734317252 / 0734.317.252 / 0734 317 252. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0734.317.252).
Where can I buy ZF 0734.317.252?
You can purchase ZF 0734.317.252 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

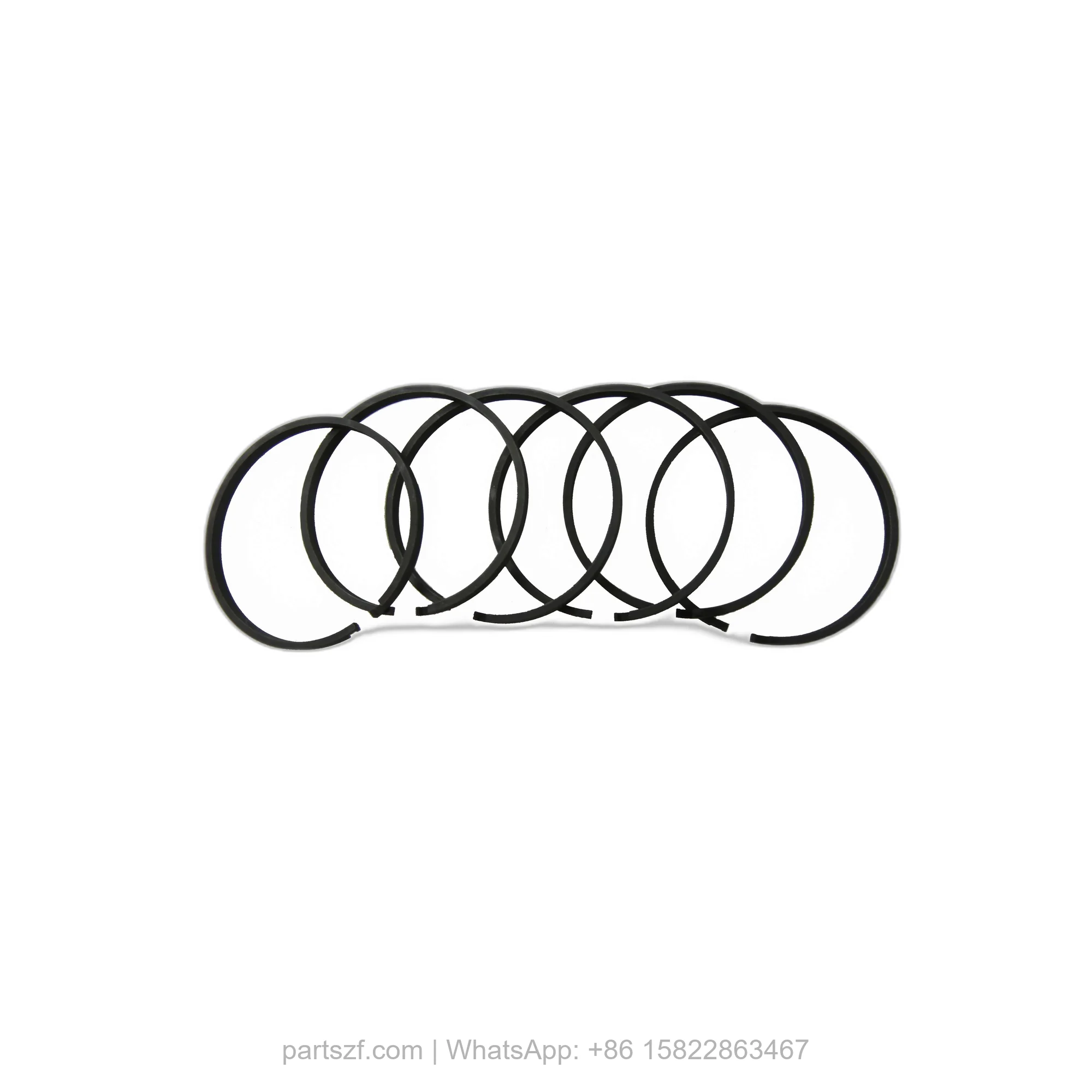

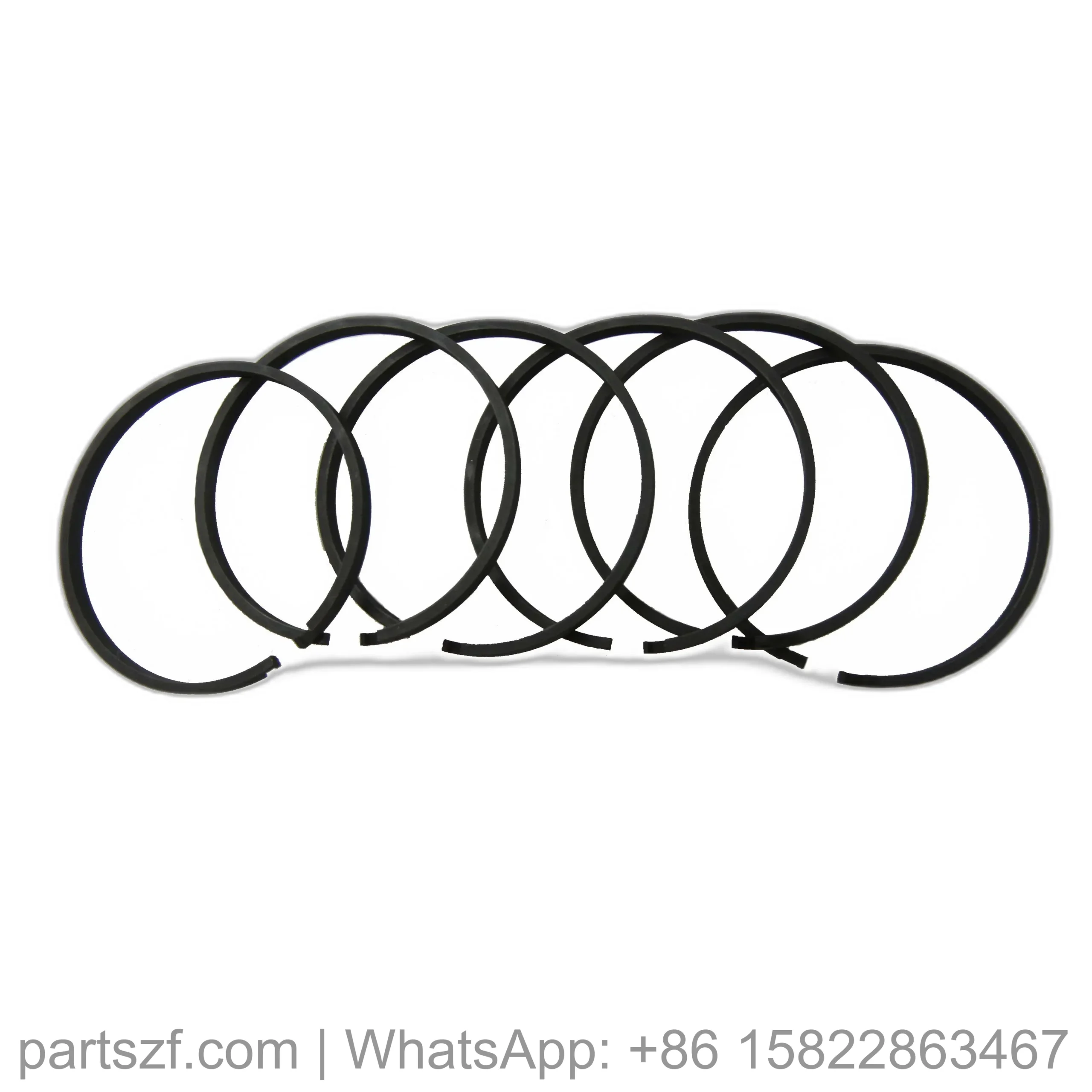

Product Photos

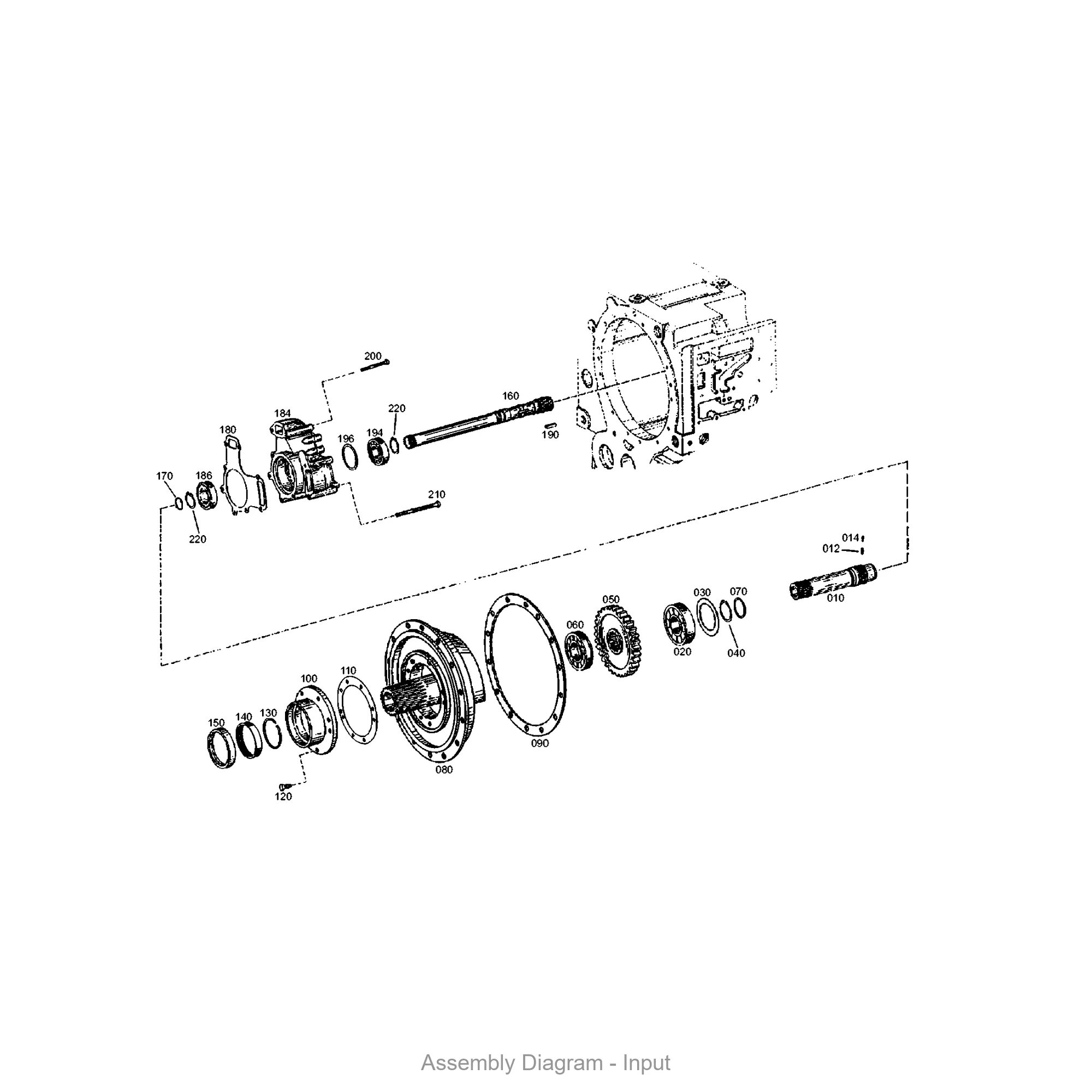

Exploded View / Assembly Diagram
The diagram below shows where ZF 0734.317.252 is located within the transmission assembly.
ZF 0734.317.252 Part Context
ZF 0734.317.252 is listed in the local BOM as RECTANGULAR RING. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
4 WG 158, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 6 WG 150, 6 WG 158, 6 WG 180(500), 6 WG 180(555)
Cross Reference
860119324, 860324947, 860116300, 7200001478, SP100220
Replacement Scenario
Use this rectangular ring listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0734.317.252 |
|---|---|
| Name | RECTANGULAR RING |
| Sections | INPUT |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
