ZF 0750.109.324 SUCTION TUBE
ZF Part Number: 0750.109.324 (also written as 0750109324 / 0750.109.324 / 0750 109 324)
Compatible ZF Transmission Models
This suction tube is used in the following ZF transmission models:
- ZF 4 BP 210
- ZF 4 BP 230
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Transmission Housing | 390 | 1 |
Related Parts in Same Assembly
- 0501.009.431 — CONVERTER (Qty: 1)
- 0501.210.966 — TAPPET SWITCH (Qty: 1)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.219.677 — RANGE SELECTOR (Qty: 1)
- 0501.298.690 — FILTER COMPLETE (Qty: 1)
- 0501.328.675 — SPEED SENSOR (Qty: 3)
- 0501.335.480 — PRESSURE FILTER (Qty: 1)
- 0734.401.267 — PISTON RING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0750.109.324?
ZF 0750.109.324 is an OEM suction tube produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 BP 210, 4 BP 230. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0750.109.324?
This suction tube is found in 2 ZF transmission variants, including: 4 BP 210, 4 BP 230. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0750.109.324 installed in the transmission?
This suction tube is located in the transmission housing area of the transmission. It appears in 11 different assembly configurations. In the service manual, look for position number 390 in the Transmission Housing section.
How do I look up ZF part 0750.109.324?
This part can be found under several formats: 0750109324 / 0750.109.324 / 0750 109 324. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0750.109.324).
Where can I buy ZF 0750.109.324?
You can purchase genuine ZF 0750.109.324 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

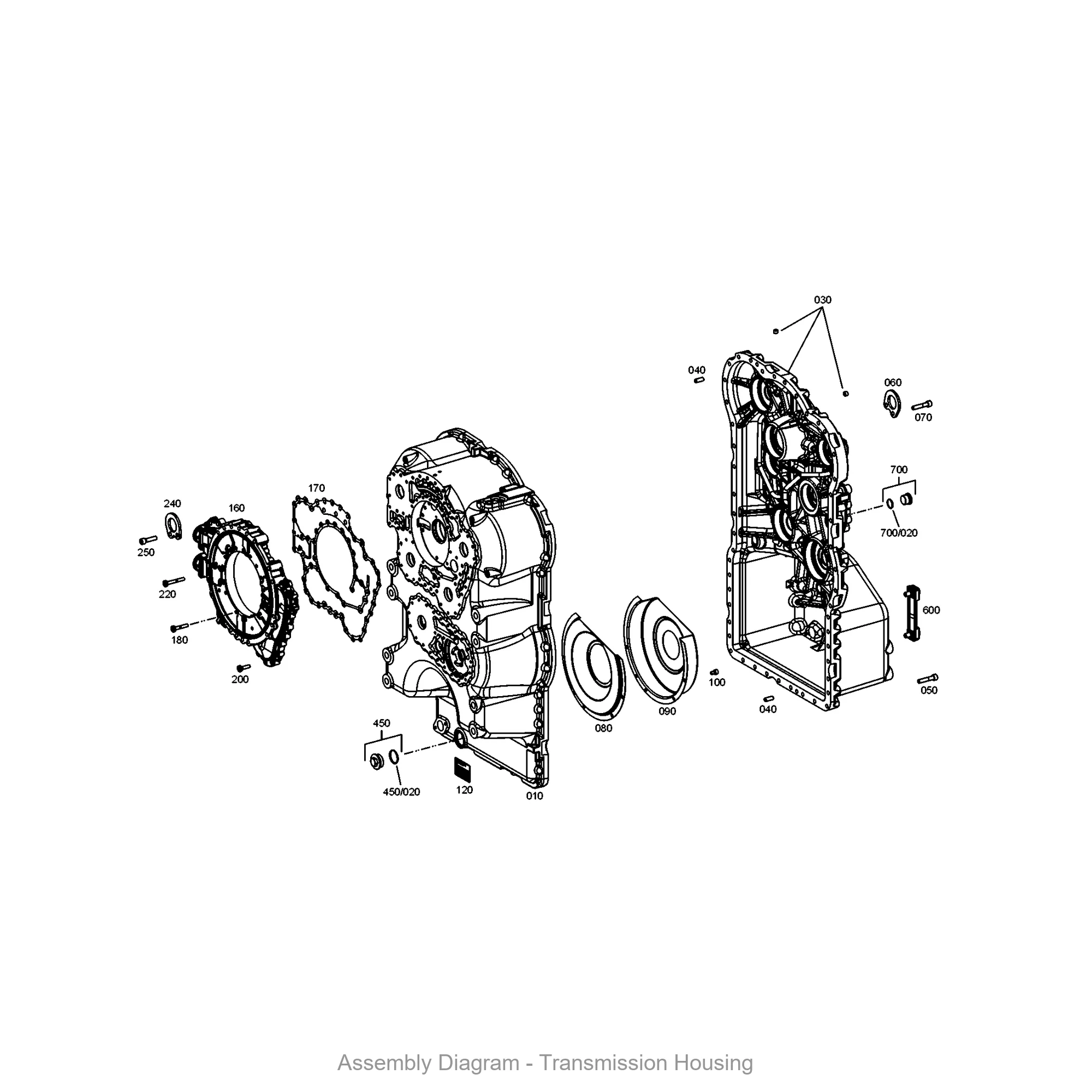

Exploded View / Assembly Diagram
The diagram below shows where ZF 0750.109.324 is located within the transmission assembly.
