ZF 0750.147.254 HOSE PIPE
ZF Part Number: 0750.147.254 (also written as 0750147254 / 0750.147.254 / 0750 147 254)
Compatible ZF Transmission Models
This hose pipe is used in the following ZF transmission models:
- ZF 3 WG 190
- ZF 4 WG 210
- ZF 4 WG 261(4)
- ZF 5 WG 160
- ZF 6 WG 160
- ZF 6 WG 190
- ZF 6 WG 210
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Control Unit | 954 | 1 |
| Oil Pipes | 993 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0636.015.124 — HEXAGON SCREW (Qty: 8)
- 4168.037.069 — CONVERTER (Qty: 1)
- 4475.280.219 — SCREW-IN SLEEVE (Qty: 9)
- 4646.230.020 — DIAPHRAGM (Qty: 1)
- 4646.231.032 — FILLER TUBE (Qty: 1)
Frequently Asked Questions
What is ZF part number 0750.147.254?
ZF 0750.147.254 is an OEM hose pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 190, 4 WG 210, 4 WG 261(4), 5 WG 160, 6 WG 160. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0750.147.254?
This hose pipe is found in 7 ZF transmission variants, including: 3 WG 190, 4 WG 210, 4 WG 261(4), 5 WG 160, 6 WG 160, 6 WG 190, 6 WG 210. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0750.147.254 installed in the transmission?
This hose pipe is located in the control unit, oil pipes area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 954 in the Control Unit section.
How do I look up ZF part 0750.147.254?
This part can be found under several formats: 0750147254 / 0750.147.254 / 0750 147 254. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0750.147.254).
Where can I buy ZF 0750.147.254?
You can purchase genuine ZF 0750.147.254 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

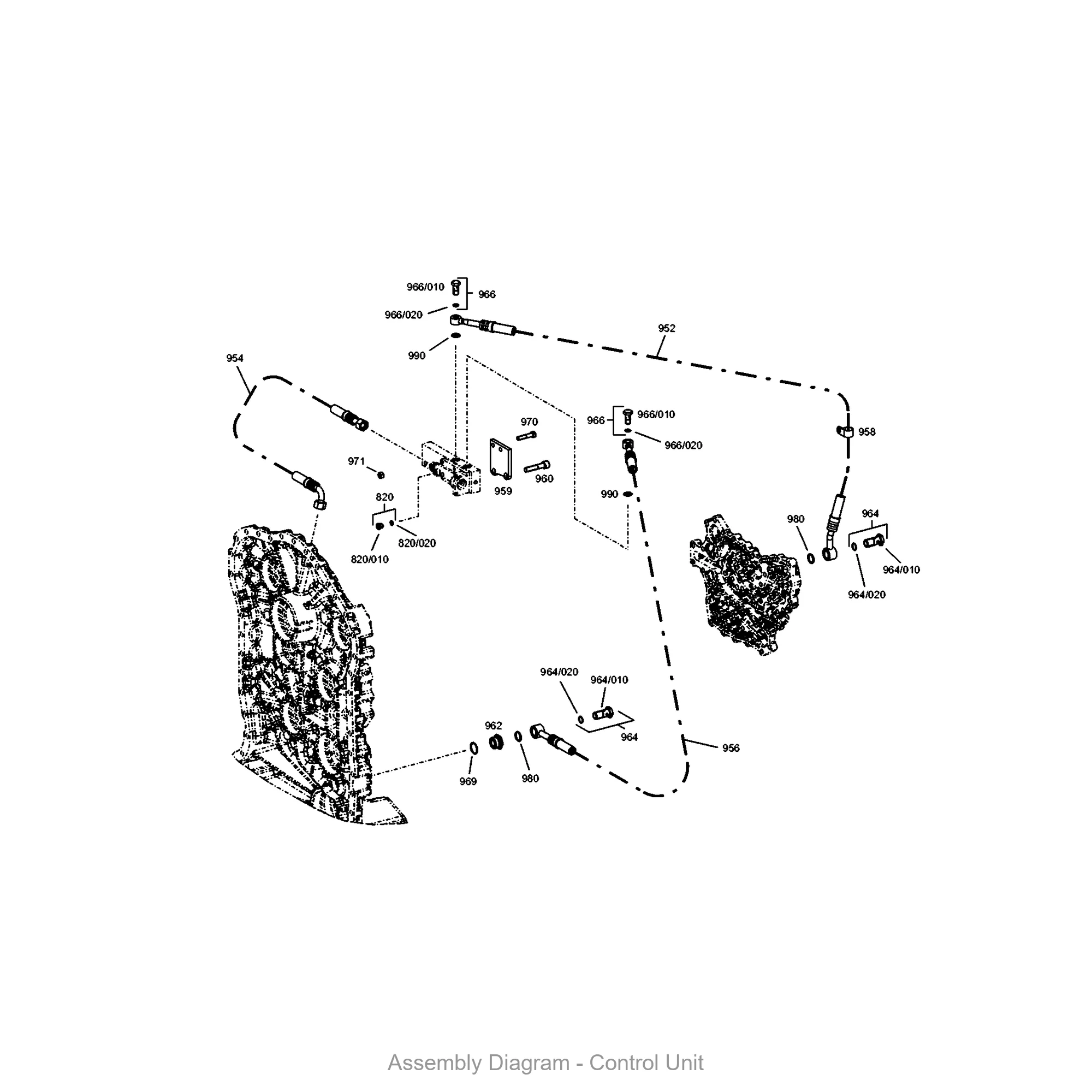

Exploded View / Assembly Diagram
The diagram below shows where ZF 0750.147.254 is located within the transmission assembly.
