Overview

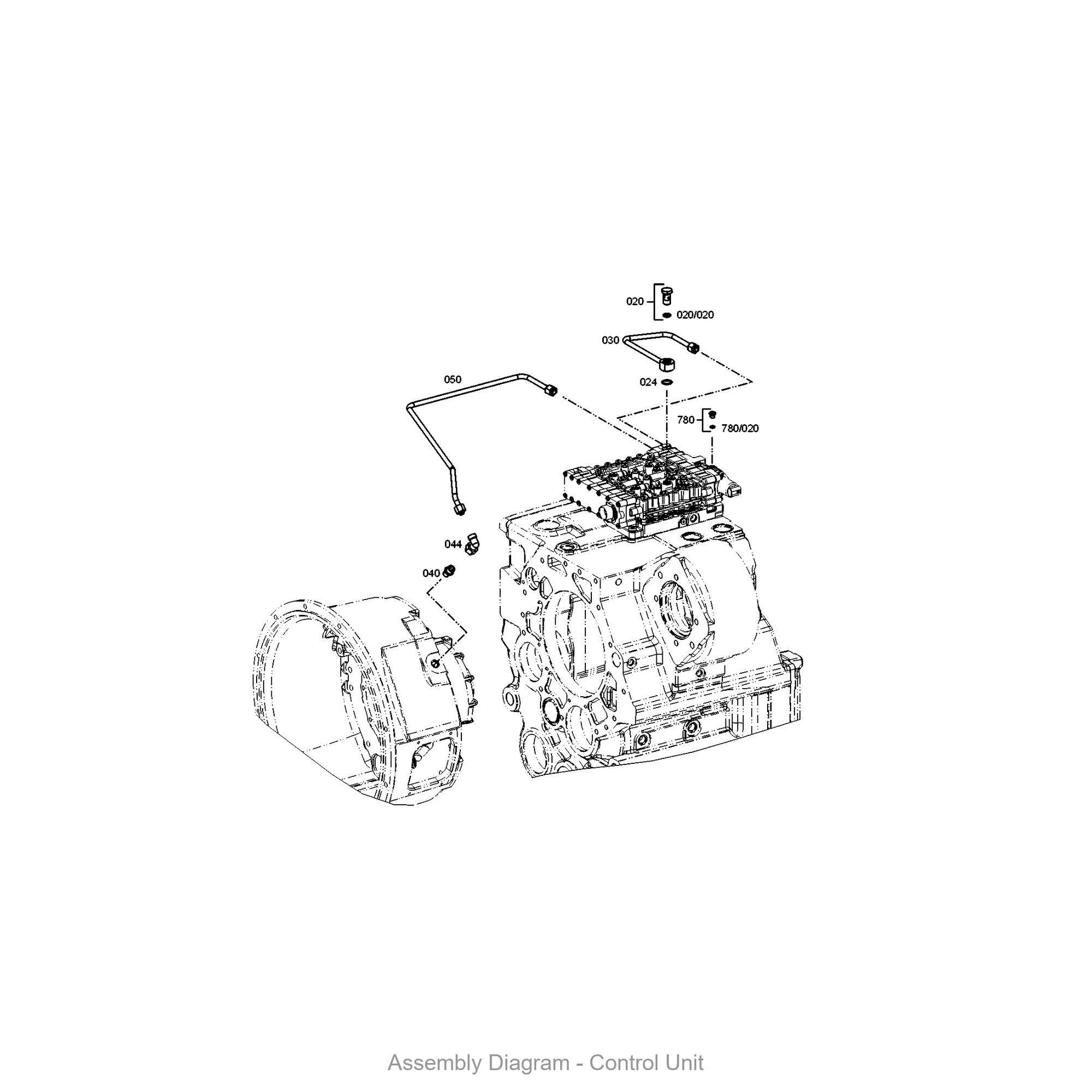

The ZF 4646.123.009 CONTROL UNIT is a precision-engineered electronic module that governs hydraulic actuation within the WG310 transmission series. Positioned directly on the valve body assembly, this OEM genuine part interprets input signals to regulate clutch engagement and shift timing. The SKU 4646.123.009 ensures exact replacement for factory-installed units, maintaining the transmission’s original performance parameters. Without this control unit, the WG310 cannot execute proper gear changes, as it serves as the central interface between the transmission control module and the hydraulic system.
Symptoms of Failure
- Erratic shifting or delayed engagement – A failing 4646.123.009 often causes unpredictable gear changes, particularly when the transmission is cold. Operators may notice hesitation before the transmission engages drive or reverse.
- Intermittent loss of gear selection – The control unit may drop specific gears under load, forcing the transmission into a limp-home mode. This symptom typically worsens as internal electronic components degrade.
- Hydraulic pressure fluctuations – Worn solenoids within the control unit produce inconsistent pressure readings, leading to harsh shifts or clutch slip during acceleration. This often triggers diagnostic trouble codes related to pressure control.
- No communication with diagnostic tools – A completely failed control unit will prevent scan tools from establishing communication with the transmission, indicating an internal electrical fault in the 4646.123.009.
Technical Specifications
| Parameter | Value |
|---|---|
| OEM Part Number | 4646.123.009 |
| Material | Die-cast aluminum housing with glass-filled nylon connector |
| Weight | 1.85 kg (4.08 lbs) |
| Dimensions (L x W x H) | 210 mm x 140 mm x 65 mm |
| Operating Voltage | 12V DC (nominal) |
| Operating Temperature Range | -40°C to +120°C |
| Sealing Type | Integrated O-ring groove (requires 0634316523: O-RING) |
| Mounting Hardware | Uses 0636101153: CAP SCREW (4x M8 bolts) |
Compatibility
This control unit is specifically designed for the ZF WG310 series, but its electronic architecture shares commonality with other WG-family transmissions. Compatible models include the WG180, WG200, WG250, and WG300 series when fitted with the same hydraulic valve block configuration. The 4646.123.009 interfaces directly with the 4646301317: HOUSING and mounts onto the 4646101189: TRANSMISSION HOUSING using 0636115293: 螺栓 for secure attachment. Always verify the valve block casting number before installation, as later WG310 revisions may require updated firmware.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4646101189 | TRANSMISSION HOUSING | Main structural casing that encloses gear sets and hydraulic circuits |
| 4646301317 | HOUSING | Intermediate housing supporting the control unit and valve block |
| 0636115293 | 螺栓 | M10 mounting bolt for securing housing assemblies |
| 0636101153 | CAP SCREW | M8 cap screw for control unit attachment |
| 0736300232 | 螺栓 | M12 bolt for valve block retention |
| 4475280208 | SCREW PLUG | Hydraulic port sealing plug for pressure testing |
| 0634316523 | O-RING | Elastomeric seal preventing fluid bypass at control unit interface |
| 4656306171 | VALVE BLOCK | Hydraulic manifold directing oil flow to clutches |
| 4656306190 | CONNECTING HOUSING | Adapter housing linking transmission to torque converter |
| 0501213997 | PRESSURE REGULATOR | Maintains consistent hydraulic pressure for shift quality |
