ZF 4143.121.401 OIL PIPE
ZF Part Number: 4143.121.401 (also written as 4143121401 / 4143.121.401 / 4143 121 401)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Gear Shift Sensor | 600 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 4143.000.124 | GEAR SHIFT SENSOR | — |
| 4143.000.125 | GEAR SHIFT SENSOR | — |
| 4143.000.126 | GEAR SHIFT SENSOR | — |
| 4143.000.130 | GEAR SHIFT SENSOR | — |
| 4143.000.132 | GEAR SHIFT SENSOR | — |
| 4143.000.137 | GEAR SHIFT SENSOR | — |
| 4143.000.141 | GEAR SHIFT SENSOR | — |
| 4143.000.143 | GEAR SHIFT SENSOR | — |
| 4143.000.152 | GEAR SHIFT SENSOR | — |
| 4143.000.154 | GEAR SHIFT SENSOR | — |
Related Parts in Same Assembly
- 4143.101.009 — HOUSING (Qty: 1)
- 4143.101.410 — HOUSING (Qty: 1)
- 4143.102.002 — INPUT (Qty: 1)
- 4143.102.405 — INPUT (Qty: 1)
- 4143.103.005 — OUTPUT (Qty: 1)
- 4143.103.401 — OUTPUT (Qty: 1)
- 4143.115.003 — PLANETARY DRIVE (Qty: 1)
- 4143.121.007 — OIL PIPE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4143.121.401?
ZF 4143.121.401 is an OEM oil pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 4143.121.401 installed in the transmission?
This oil pipe is located in the gear shift sensor area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 600 in the Gear Shift Sensor section.
How do I look up ZF part 4143.121.401?
This part can be found under several formats: 4143121401 / 4143.121.401 / 4143 121 401. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4143.121.401).
Where can I buy ZF 4143.121.401?
You can purchase genuine ZF 4143.121.401 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

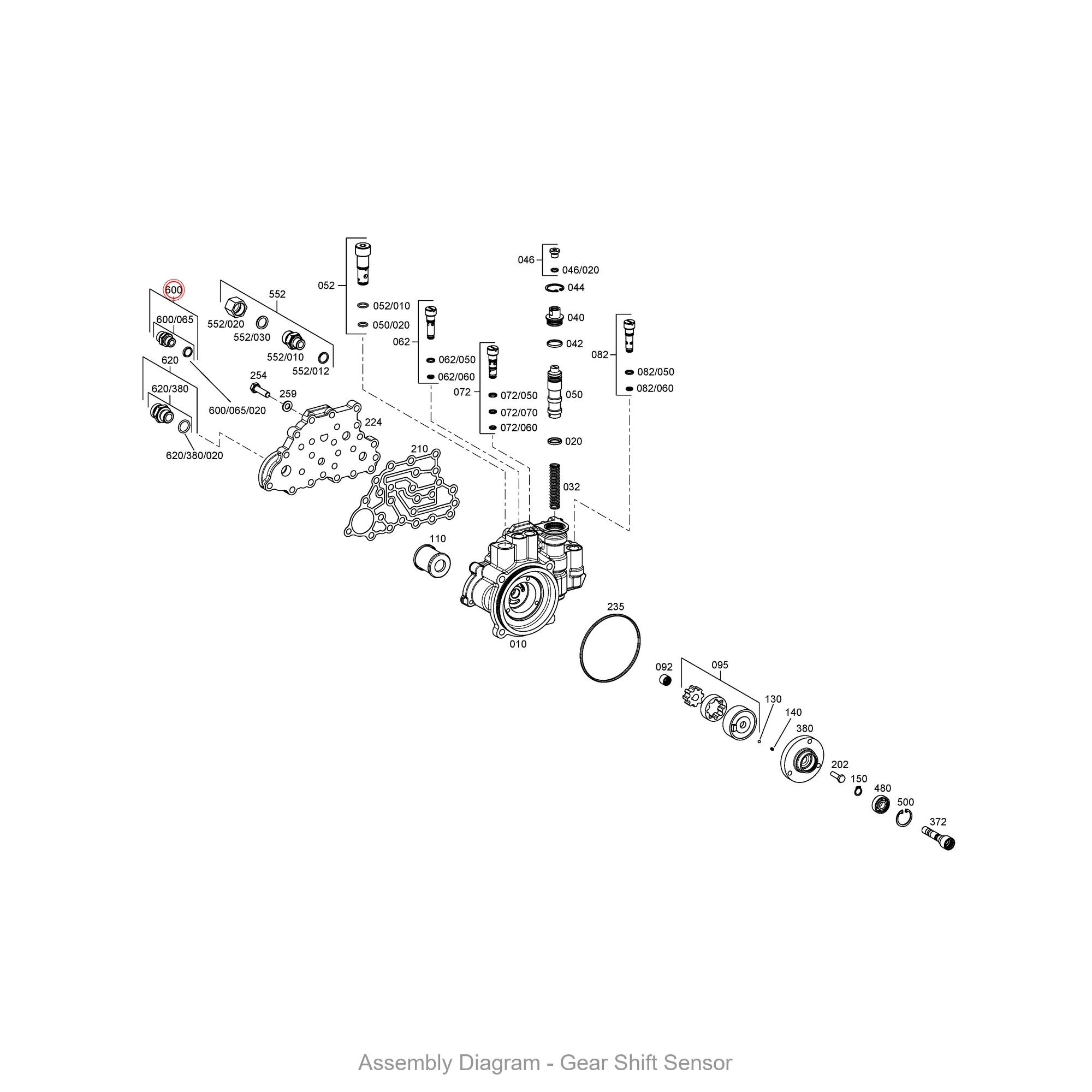

Exploded View / Assembly Diagram
The diagram below shows where ZF 4143.121.401 is located within the transmission assembly.
