Overview
The ZF 4143.142.013 GEAR SHIFT SENSOR is a precision electronic component responsible for detecting the exact position of the shift rail within ZF WG100, WG130, and WG131 transmissions. This OEM genuine part transmits critical data to the transmission control unit, ensuring correct gear engagement and smooth ratio changes. Mounted directly on the valve body or housing assembly, the sensor (SKU: 4143.142.013) works in tandem with the 4143101009 HOUSING and the 4143301025 HOUSING to maintain hydraulic circuit integrity. Without this sensor, the transmission cannot accurately determine which gear is selected, leading to erratic shifting or complete driveline failure.
Symptoms of Failure
- Erratic or delayed gear engagement: When the gear shift sensor fails, the transmission may hesitate or slam into gear, especially during cold starts or low-speed maneuvers.
- Incorrect gear display or no shift indication: The dashboard may show a wrong gear number or a flashing warning light, indicating the sensor is sending corrupted position data.
- Transmission stuck in limp mode: A faulty sensor often forces the gearbox into a single gear (usually 2nd or 3rd) as a safety measure, preventing further damage.
- Oil contamination around the sensor connector: Leaking fluid from the sensor seal area, often accompanied by a burnt smell, signals internal wear that requires immediate replacement.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 4143.142.013 |
| Type | Inductive gear shift position sensor |
| Material | Glass-filled nylon housing with brass contact pins |
| Weight | 0.12 kg (0.26 lbs) |
| Dimensions (L x W x H) | 65 mm x 40 mm x 30 mm |
| OEM Reference | ZF 4143.142.013 |
| Operating Temperature Range | -40°C to +125°C |
| Sealing Type | Integrated O-ring (use 0634313603 O-RING for replacement) |
| Fastener Torque | 8 Nm (use 4475280018 SCREW PLUG for secure mounting) |
Compatibility
This genuine ZF gear shift sensor is engineered for the following transmission models: WG100, WG130, WG131, WG180, and WG200 series. It is also compatible with HL 100 Series and HL 270 Series auxiliary gearboxes. Always verify your transmission serial number before ordering. For complete sealing, pair this sensor with the 0634313603 O-RING and the 4475280018 SCREW PLUG to prevent fluid leaks.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4143101009 | HOUSING | Encloses shift mechanism and sensor mounting point |
| 4143301025 | HOUSING | Secondary housing for valve body assembly |
| 0634313603 | O-RING | Seals sensor-to-housing interface |
| 4475280018 | SCREW PLUG | Secures sensor and prevents oil leakage |
| 0501342341 | SUPPORT RING | Reinforces O-ring seating under pressure |
| 4143298457 | SEAL KIT | Complete gasket set for sensor and housing |
| 0634313591 | O-RING | Secondary seal for hydraulic passages |
| 0636101068 | CAP SCREW | Fastens housing to transmission case |
| 4143221013 | THROTTLE VALVE | Regulates hydraulic pressure based on gear position |
| 0634304484 | O-RING | Seals throttle valve bore |
ZF 4143.142.013 GEAR SHIFT SENSOR – Gear RFQ Support
ZF 4143.142.013 GEAR SHIFT SENSOR is handled as a gear-train sourcing item for transmission repair teams. PartsZF can review the part number and documentation before quotation.
Part-Number Summary
Use ZF number 4143.142.013 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Illustration section: GEAR SHIFT SENSOR
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4143.142.013 |
|---|---|
| Normalized SKU | 4143142013 |
| Part name | GEAR SHIFT SENSOR |
| Product category | gear |
| RFQ support | Part-number lookup and documentation review |
| Media support | Product photo or diagram review when available |
Image and Documentation Notes

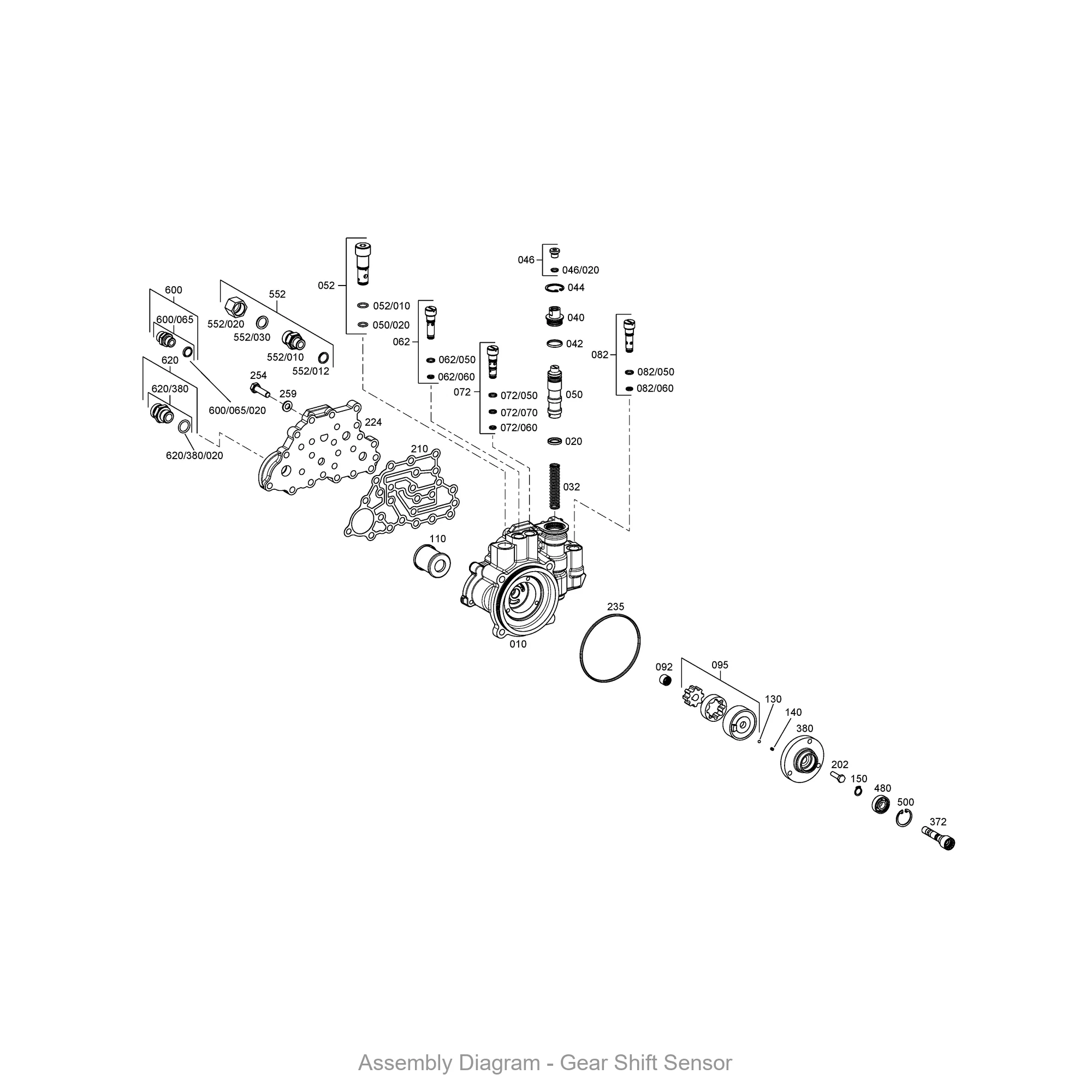

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
