Overview
The ZF 4143.242.008 CHECK VALVE is a precision-engineered hydraulic component designed for the WG100, WG130, and WG131 transmission series. This OEM genuine part regulates oil flow within the valve body, preventing backflow and maintaining consistent pressure to ensure smooth clutch engagement and gear shifts. The SKU 4143.242.008 sits directly in the main control circuit, working in tandem with the 4143101009 HOUSING and the 4143301025 HOUSING to direct hydraulic fluid precisely. Without this check valve, the transmission cannot maintain the directional flow required for reliable operation.
Symptoms of Failure
- Delayed or harsh shifting: A worn check valve allows fluid to bypass, causing erratic pressure drops that result in sluggish gear changes or sudden engagement.
- Oil leaks around the valve body: When the valve seat degrades, pressurized ATF can seep past seals, often pooling near the 0634313603 O-RING or the 4475280018 SCREW PLUG.
- Transmission slipping under load: Inadequate check valve sealing reduces line pressure, causing clutches to slip during acceleration or hill climbing.
- Erratic neutral-to-drive engagement: A failing valve can cause intermittent loss of hydraulic lock, making the transmission hesitate or clunk when shifting from park to drive.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 4143.242.008 |
| OEM Reference | ZF 4143.242.008 |
| Material | Hardened steel with corrosion-resistant coating |
| Overall Length | 42 mm (estimated) |
| Outer Diameter | 18 mm (estimated) |
| Weight | 0.045 kg |
| Seal Type | Integrated poppet with O-ring groove |
| Operating Pressure | Up to 20 bar (290 psi) |
Compatibility
This check valve is engineered for ZF WG-series transmissions, specifically the WG100, WG130, and WG131 models. It also fits select HL 100 Series and HL 270 Series applications where the valve body uses the same hydraulic circuit. For WG180 or WG200 transmissions, verify the valve body configuration, as these models may require a different flow rate. Always confirm the part number against your transmission’s parts manual before installation.

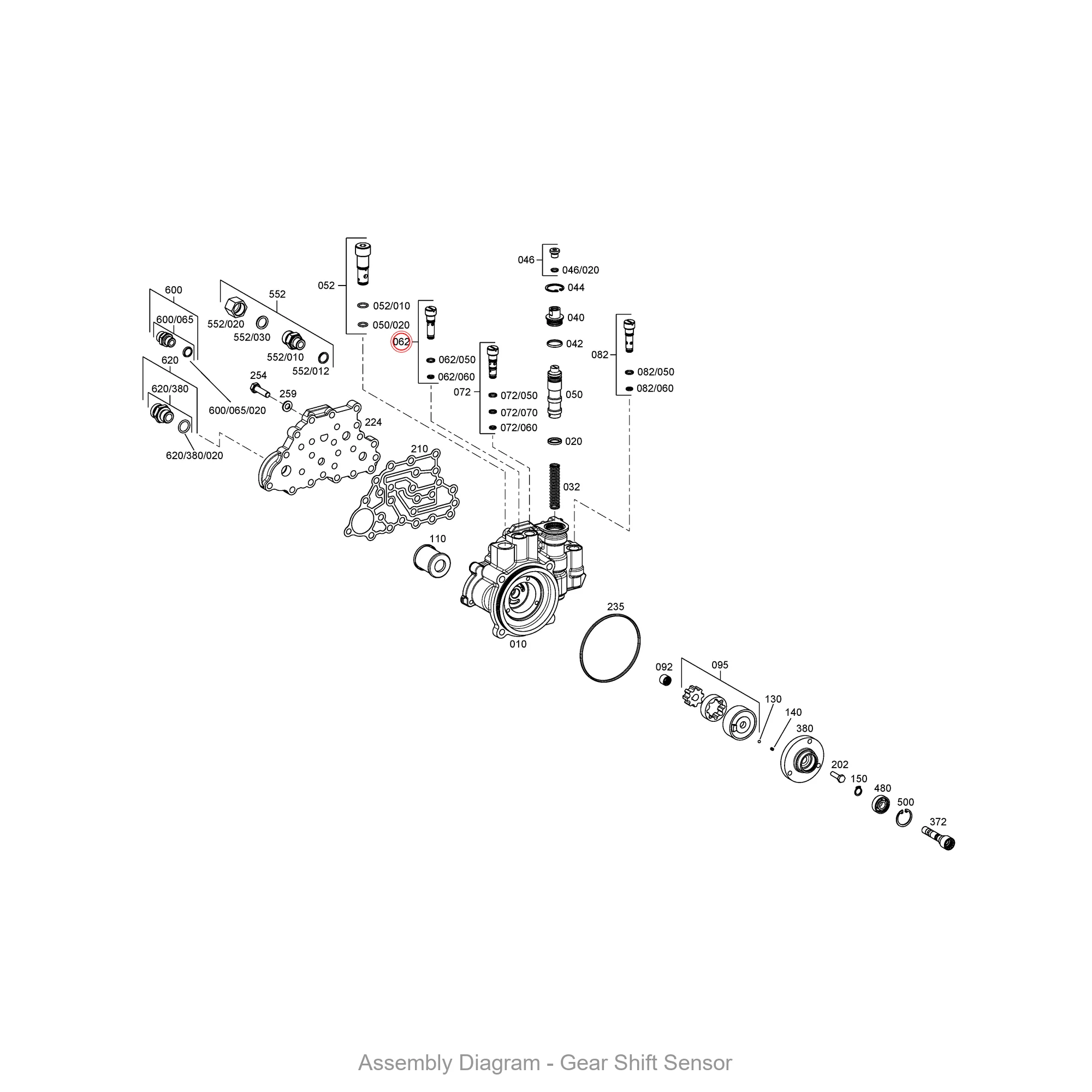

Related Components
| Part Number | Name | Function |
|---|---|---|
| 4143101009 | HOUSING | Encloses valve assembly and directs fluid paths |
| 4143301025 | HOUSING | Secondary housing for pressure regulation |
| 0634313603 | O-RING | Seals check valve to prevent external leaks |
| 4475280018 | SCREW PLUG | Secures valve bore and provides access point |
| 0501342341 | SUPPORT RING | Reinforces O-ring seating under high pressure |
| 4143298457 | SEAL KIT | Complete set of seals for valve body overhaul |
| 0634313591 | O-RING | Secondary seal for adjacent hydraulic passages |
| 0636101068 | CAP SCREW | Fastens housing components to transmission case |
| 4143221013 | THROTTLE VALVE | Modulates pressure based on engine load |
| 0634304484 | O-RING | Seals throttle valve bore against leakage |
