ZF 4143.315.036 RING GEAR
ZF Part Number: 4143.315.036 (also written as 4143315036 / 4143.315.036 / 4143 315 036)
Compatible ZF Transmission Models
This ring gear is used in the following ZF transmission models:
- ZF 3 WG 100(500)
- ZF 3 WG 130
- ZF 3 WG 131
- ZF 3 WG 160
- ZF 3 WG 171
- ZF 3 WG 190
- ZF 3 WG 191
- ZF 3 WG 200
- ZF 3 WG 201
- ZF 3 WG 210
- ZF 3 WG 211
- ZF 3 WG 251
- ZF 3 WG 260
- ZF 3 WG 261
- ZF 3 WG 310
…and 19 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Planetary Drive | 140 | 1 |
Related Parts in Same Assembly
- 4143.101.009 — HOUSING (Qty: 1)
- 4143.101.410 — HOUSING (Qty: 1)
- 4143.102.002 — INPUT (Qty: 1)
- 4143.102.405 — INPUT (Qty: 1)
- 4143.103.005 — OUTPUT (Qty: 1)
- 4143.103.401 — OUTPUT (Qty: 1)
- 4143.115.003 — PLANETARY DRIVE (Qty: 1)
- 4143.121.007 — OIL PIPE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4143.315.036?
ZF 4143.315.036 is an OEM ring gear produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100(500), 3 WG 130, 3 WG 131, 3 WG 160, 3 WG 171. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4143.315.036?
This ring gear is found in 34 ZF transmission variants, including: 3 WG 100(500), 3 WG 130, 3 WG 131, 3 WG 160, 3 WG 171, 3 WG 190, 3 WG 191, 3 WG 200, 3 WG 201, 3 WG 210. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4143.315.036 installed in the transmission?
This ring gear is located in the planetary drive area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 140 in the Planetary Drive section.
How do I look up ZF part 4143.315.036?
This part can be found under several formats: 4143315036 / 4143.315.036 / 4143 315 036. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4143.315.036).
How do I inspect ZF 4143.315.036?
Inspect gear teeth for pitting, spalling, cracks, and abnormal wear patterns. Check tooth contact pattern using marking compound. Replace if damage exceeds ZF service limits.
Where can I buy ZF 4143.315.036?
You can purchase genuine ZF 4143.315.036 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

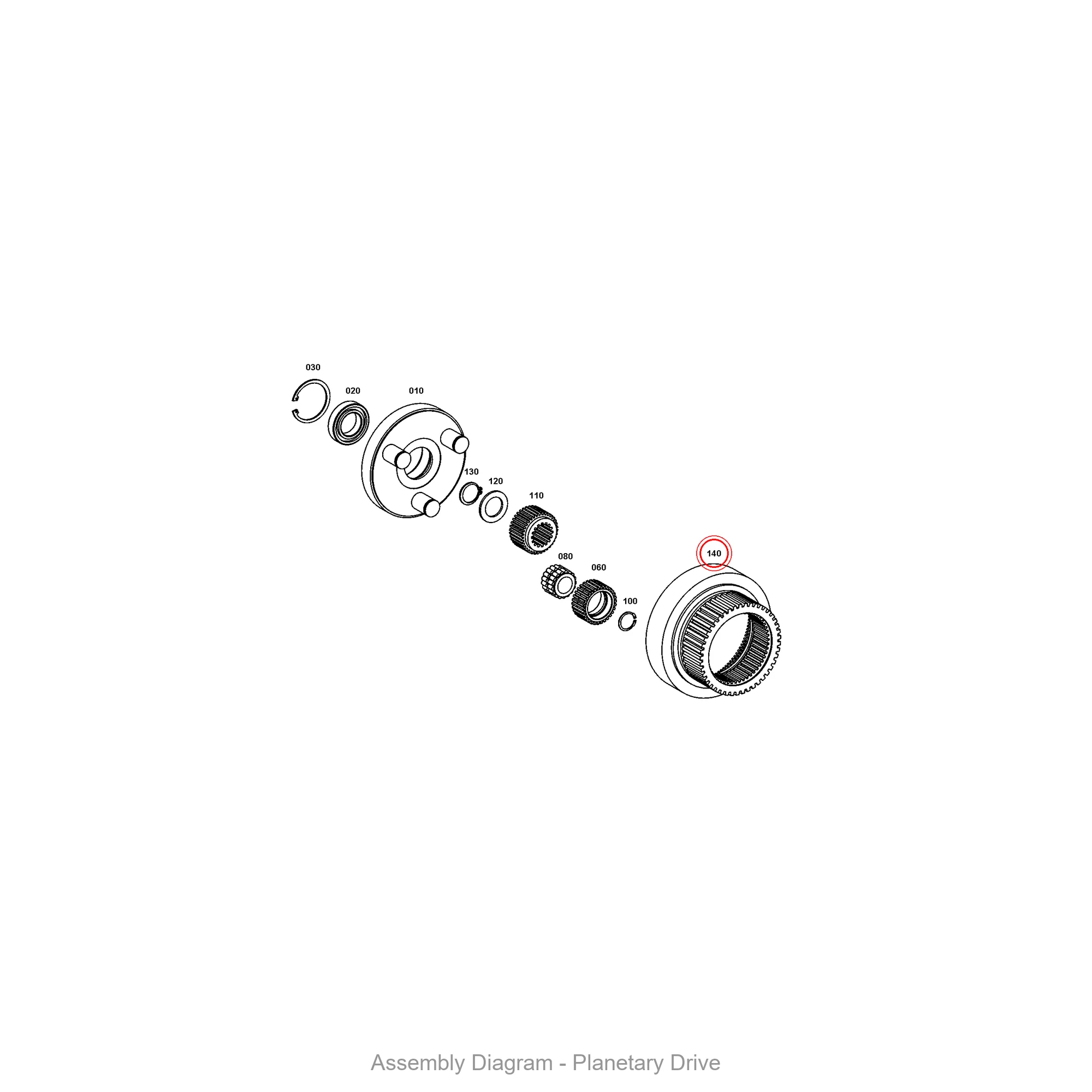

Exploded View / Assembly Diagram
The diagram below shows where ZF 4143.315.036 is located within the transmission assembly.
