Overview
The ZF 4143.325.017 PISTON is a critical hydraulic actuation component engineered for the HL 100 and HL 270 series transmissions. This OEM genuine part converts hydraulic pressure into linear mechanical force to engage clutch packs and control gear selection. Positioned within the valve body and clutch drum assembly, the piston must maintain a precise seal to ensure consistent shift quality. The SKU 4143.325.017 is manufactured to ZF’s exacting tolerances, utilizing hardened steel to withstand repeated high-pressure cycles. When paired with a new 0634313603 O-RING, this piston restores factory-spec clamping force and prevents internal cross-leakage.
Symptoms of Failure
- Delayed or harsh shifting: A worn piston surface or damaged sealing lip causes hydraulic pressure loss, resulting in sluggish engagement or abrupt gear changes during acceleration.
- Internal transmission oil leaks: Cracks or scoring on the piston bore allow ATF to bypass the seal, leading to low fluid levels and burnt-smelling oil visible on the dipstick.
- Gear slipping under load: When the piston cannot maintain clamping force on the clutch pack, the transmission slips out of gear when climbing hills or towing heavy loads.
- Erratic neutral-to-drive engagement: A failing piston causes intermittent failure to engage Drive from Neutral, requiring multiple shift lever attempts.
Technical Specifications
| Part Number | 4143.325.017 |
| Material | Hardened alloy steel (DIN 1.7225 equivalent) |
| Outer Diameter | 68.5 mm |
| Inner Diameter | 42.0 mm |
| Height | 24.8 mm |
| Weight | 0.185 kg |
| Surface Finish | Ground and polished (Ra 0.4 µm) |
| OEM Reference | ZF 4143.325.017 |
| Seal Compatibility | Requires 0634313603 O-RING and 0634313591 O-RING |
Compatibility

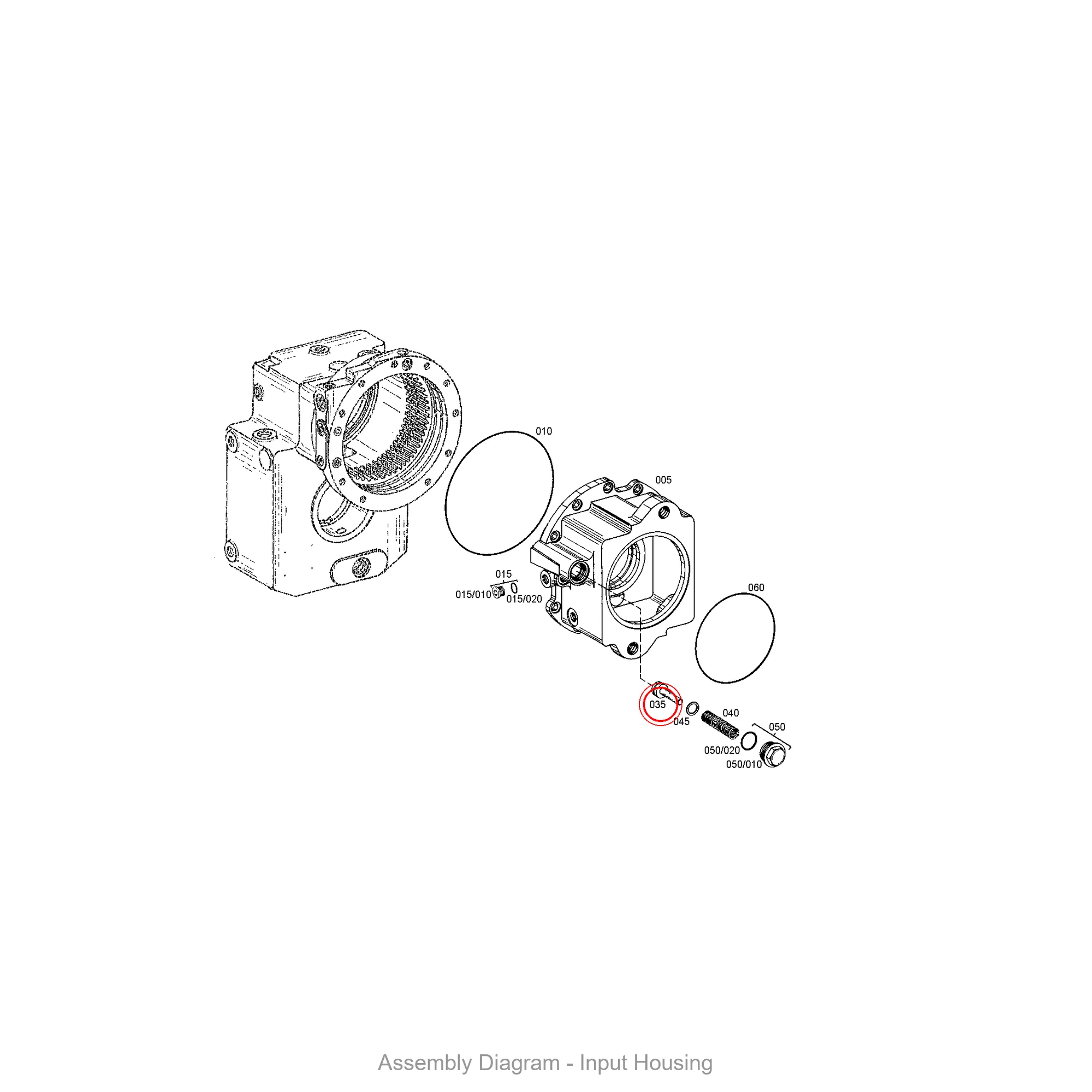

This piston is a direct fit for ZF HL 100 and HL 270 series transmissions used in off-highway vehicles, including the WG180, WG200, and WG250 models. It also applies to the 4WG-180, 4WG-200, and 5WG-270 variants found in heavy loaders, graders, and dump trucks. The 4143.325.017 piston interfaces with the 4143101009 HOUSING and the 4143301025 HOUSING in the clutch pack assembly. Always replace the 4475280018 SCREW PLUG during piston service to prevent thread galling.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4143101009 | HOUSING | Encloses the piston and clutch pack assembly |
| 4143301025 | HOUSING | Secondary housing for valve body integration |
| 0634313603 | O-RING | Primary piston seal (inner diameter) |
| 4475280018 | SCREW PLUG | Secures piston bore access port |
| 0501342341 | SUPPORT RING | Prevents O-ring extrusion under high pressure |
| 4143298457 | SEAL KIT | Complete set of seals for piston overhaul |
| 0634313591 | O-RING | Secondary piston seal (outer diameter) |
| 0636101068 | CAP SCREW | Fastener for housing retention |
| 4143221013 | THROTTLE VALVE | Modulates hydraulic flow to the piston |
| 0634304484 | O-RING | Seal for throttle valve bore |
