ZF 4143.351.061 PISTON for HL 100/HL 270 | OEM Genuine Part

Overview

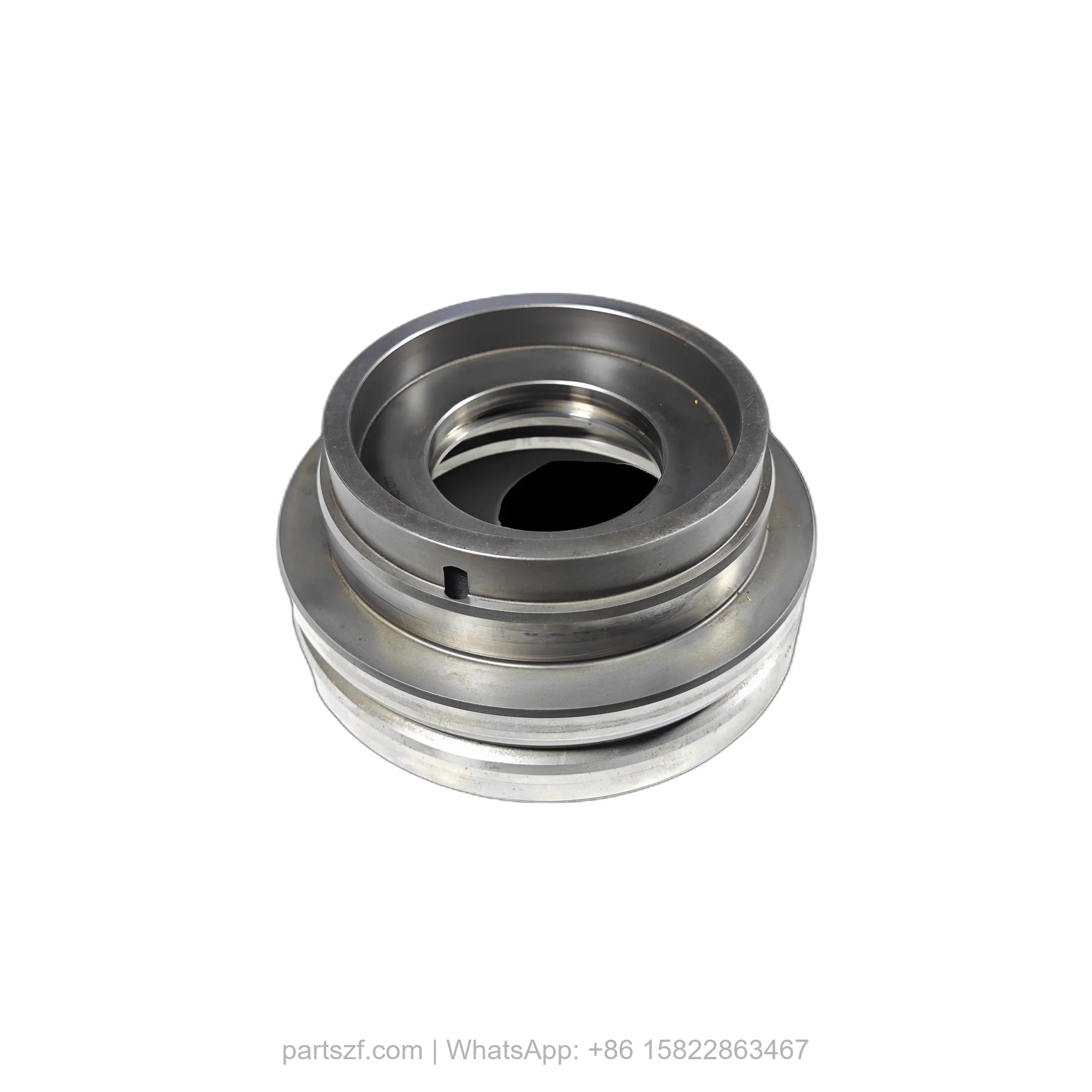

The ZF 4143.351.061 PISTON is a critical hydraulic actuation component engineered for the HL 100 and HL 270 series transmissions. This OEM genuine part converts hydraulic pressure into precise mechanical force to engage clutch packs and control gear selection within the transmission valve body. The SKU 4143.351.061 sits directly inside the piston housing assembly, where it must maintain a perfect seal to ensure consistent shift quality under heavy industrial loads. When paired with the 4143101025 HOUSING, this piston forms the core of the shift actuation system, directly influencing torque transfer efficiency.

Symptoms of Failure

• Delayed or harsh shifting – A worn 4143.351.061 piston allows hydraulic fluid to bypass the seal, causing sluggish engagement between gears or jarring shifts under load.
• Internal transmission oil leaks – Cracks or scoring on the piston surface permit ATF to escape into the sump, often visible as low fluid levels or puddling beneath the bell housing.
• Gear slipping under torque – When the piston fails to hold pressure, clutch packs cannot fully lock, resulting in RPM flare without corresponding vehicle speed increase.
• Erratic neutral-to-drive engagement – A sticking piston in the 4143301055 HOUSING causes inconsistent take-up when shifting from park or neutral.

Technical Specifications

Compatibility

This piston is specifically designed for ZF HL 100 and HL 270 series transmissions, commonly found in heavy-duty construction equipment, mining trucks, and agricultural machinery. It also fits select WG180 and WG200 models when used with the correct 4143298040 CASE assembly. The 4143.351.061 piston requires the 0631329135 SPRING PIN for proper retention within the bore. Always verify housing compatibility before installation.
