ZF 4166.330.224 GASKET
ZF Part Number: 4166.330.224 (also written as 4166330224 / 4166.330.224 / 4166 330 224)
Compatible ZF Transmission Models
This gasket is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 180(500)
- ZF 6 WG 180(555)
- ZF 6 WG 200
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 32.330 | 1 |
| Converter | 330 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4166.232.027 — CIRCUIT COVER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.090 — FILLER TUBE (Qty: 1)
- 4642.301.207 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.118 — INPUT SHAFT (Qty: 1)
- 4642.303.095 — OUTPUT SHAFT (Qty: 1)
- 4642.305.011 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 4166.330.224?
ZF 4166.330.224 is an OEM gasket produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 200(555/5), 6 WG 150, 6 WG 180(500), 6 WG 180(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4166.330.224?
This gasket is found in 10 ZF transmission variants, including: 3 WG 200, 4 WG 200(555/5), 6 WG 150, 6 WG 180(500), 6 WG 180(555), 6 WG 200, 6 WG 200(500), 6 WG 200(555), 6 WG 200(555/4), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4166.330.224 installed in the transmission?
This gasket is located in the converter area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 32.330 in the Converter section.
How do I look up ZF part 4166.330.224?
This part can be found under several formats: 4166330224 / 4166.330.224 / 4166 330 224. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4166.330.224).
When should I replace ZF 4166.330.224?
Replace this seal during every transmission overhaul or if you notice oil leakage at the seal location. Seals are wear items and should not be reused after removal.
Can I reuse ZF 4166.330.224 after disassembly?
No. ZF recommends always installing new seals during reassembly. Reusing seals may result in leaks and premature failure.
Where can I buy ZF 4166.330.224?
You can purchase genuine ZF 4166.330.224 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

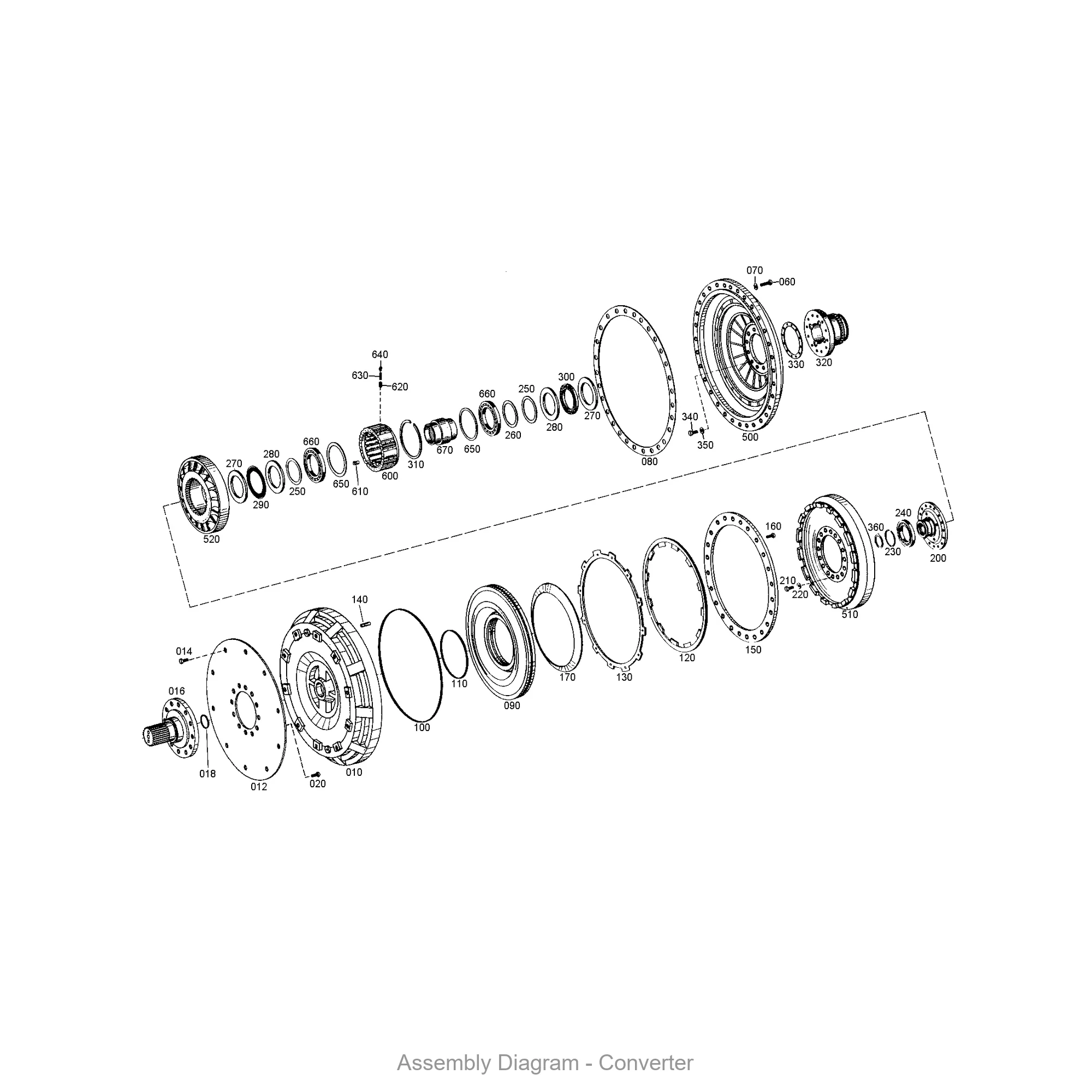

Exploded View / Assembly Diagram
The diagram below shows where ZF 4166.330.224 is located within the transmission assembly.
