ZF 4166.336.130 END SHIM
ZF Part Number: 4166.336.130 (also written as 4166336130 / 4166.336.130 / 4166 336 130)
Compatible ZF Transmission Models
This end shim is used in the following ZF transmission models:
- ZF 4 WG 65
- ZF 4 WG 65 II(D)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 150 | 1 |
| Converter | 32.150 | 1 |
| Converter | 41.150 | 1 |
Related Parts in Same Assembly
- 4616.101.065 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.406 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.038 — INPUT (Qty: 1)
- 4616.102.419 — INPUT (Qty: 1)
- 4616.103.071 — OUTPUT (Qty: 1)
- 4616.105.014 — OUTPUT (Qty: 1)
- 4616.106.020 — SHIFT SYSTEM (Qty: 1)
- 4616.159.031 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 4166.336.130?
ZF 4166.336.130 is an OEM end shim produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 65, 4 WG 65 II(D). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4166.336.130?
This end shim is found in 2 ZF transmission variants, including: 4 WG 65, 4 WG 65 II(D). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4166.336.130 installed in the transmission?
This end shim is located in the converter area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 150 in the Converter section.
How do I look up ZF part 4166.336.130?
This part can be found under several formats: 4166336130 / 4166.336.130 / 4166 336 130. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4166.336.130).
Where can I buy ZF 4166.336.130?
You can purchase genuine ZF 4166.336.130 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

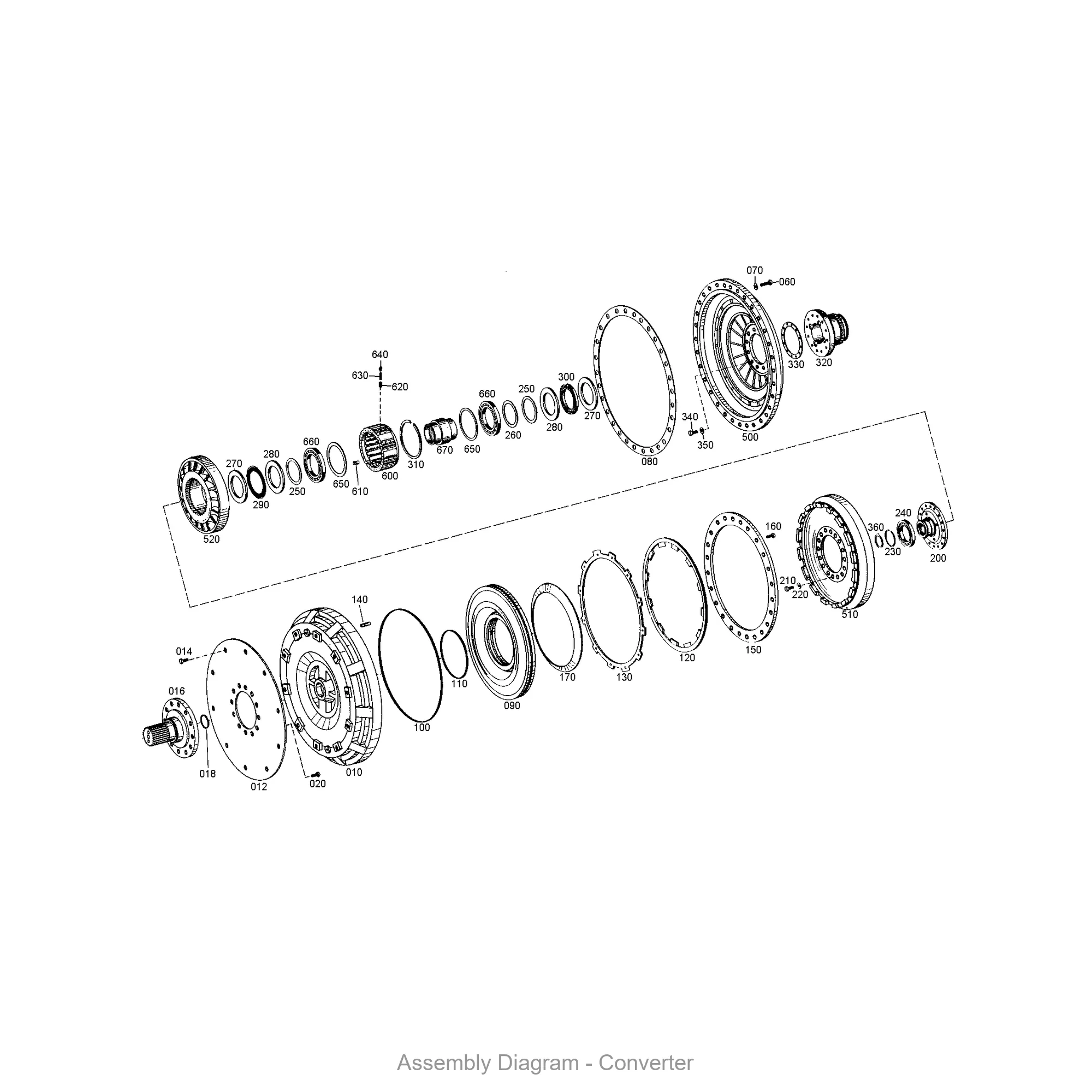

Exploded View / Assembly Diagram
The diagram below shows where ZF 4166.336.130 is located within the transmission assembly.
