ZF 4475.280.015 SCREW PLUG
ZF Part Number: 4475.280.015 (also written as 4475280015 / 4475.280.015 / 4475 280 015)
OEM Cross Reference / Interchange Numbers
ZF 4475.280.015 (SCREW PLUG) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 柳工 | SP104564 | OEM Cross Ref |
If you are looking for 柳工 SP104564, the correct ZF original part number is 4475.280.015. This is a 100% genuine ZF replacement, guaranteed to be fully compatible with 柳工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This screw plug is used in the following ZF transmission models:
- ZF 3 WG 100
- ZF 3 WG 100(300)
- ZF 3 WG 100(400)
- ZF 3 WG 100(500)
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 3 WG 310(4)
- ZF 4 BP 210
- ZF 4 BP 230
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 4 WG 150
- ZF 4 WG 158
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
…and 7 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Crawler | 260 | 1 |
| Housing | 020 | 1 |
| Housing | 330 | 1 |
| Housing | 350 | 2 |
| Housing | 370 | 2 |
| Inductive Sensor | 030 | 1 |
| Oil Pipe | 100 | 4 |
| Oil Pipe | 300 | 2 |
| Oil Pipe | 302 | 1 |
| Oil Pipe | 400 | 1 |
| Oil Pipes | 21.540 | 2 |
| Oil Pipes | 302 | 1 |
Related Parts in Same Assembly
- 5838.300.734 — REAR AXLE HOUS. (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 2093.309.087 — ADJUSTMENT PLATE (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
Frequently Asked Questions
What is ZF part number 4475.280.015?
ZF 4475.280.015 is an OEM screw plug produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100, 3 WG 100(300), 3 WG 100(400), 3 WG 100(500), 3 WG 260. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4475.280.015?
This screw plug is found in 22 ZF transmission variants, including: 3 WG 100, 3 WG 100(300), 3 WG 100(400), 3 WG 100(500), 3 WG 260, 3 WG 310, 3 WG 310(4), 4 BP 210, 4 BP 230, 4 WG 100(400). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4475.280.015 installed in the transmission?
This screw plug is located in the housing, remote control area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 260 in the Crawler section.
How do I look up ZF part 4475.280.015?
This part can be found under several formats: 4475280015 / 4475.280.015 / 4475 280 015. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4475.280.015).
Where can I buy ZF 4475.280.015?
You can purchase genuine ZF 4475.280.015 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

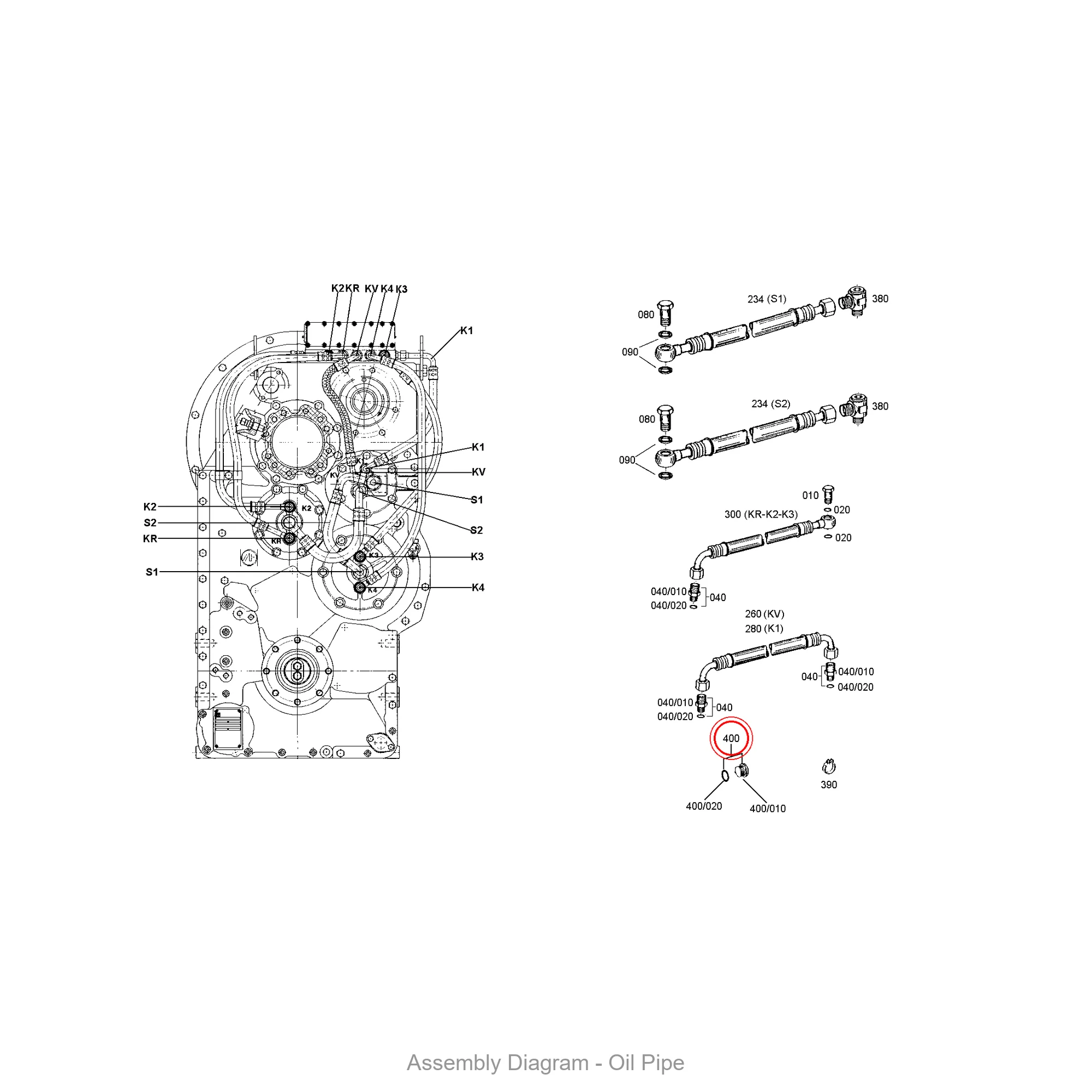

Exploded View / Assembly Diagram
The diagram below shows where ZF 4475.280.015 is located within the transmission assembly.
