ZF 4644.109.438 PARKING BRAKE
ZF Part Number: 4644.109.438 (also written as 4644109438 / 4644.109.438 / 4644 109 438)
Compatible ZF Transmission Models
This parking brake is used in the following ZF transmission models:
- ZF 4 BP 210
- ZF 4 WG 158
- ZF 4 WG 200
- ZF 4 WG 200(555/5)
- ZF 4 WG 208
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Bp 210 | 070 | 1 |
| Bp 230 | 070 | 1 |
Related Parts in Same Assembly
- 0501.008.070 — BRAKE (Qty: 1)
- 0501.009.460 — CONVERTER (Qty: 1)
- 0501.216.205 — RANGE SELECTOR (Qty: 1)
- 0501.224.618 — BRAKE BLOCK (Qty: 2)
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.231.179 — OIL LEVEL TUBE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.109.438?
ZF 4644.109.438 is an OEM parking brake produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 BP 210, 4 WG 158, 4 WG 200, 4 WG 200(555/5), 4 WG 208. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.109.438?
This parking brake is found in 5 ZF transmission variants, including: 4 BP 210, 4 WG 158, 4 WG 200, 4 WG 200(555/5), 4 WG 208. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.109.438 installed in the transmission?
This parking brake is located in the bp 210, parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 070 in the Bp 210 section.
How do I look up ZF part 4644.109.438?
This part can be found under several formats: 4644109438 / 4644.109.438 / 4644 109 438. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.109.438).
Where can I buy ZF 4644.109.438?
You can purchase genuine ZF 4644.109.438 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.
Exploded View / Assembly Diagram

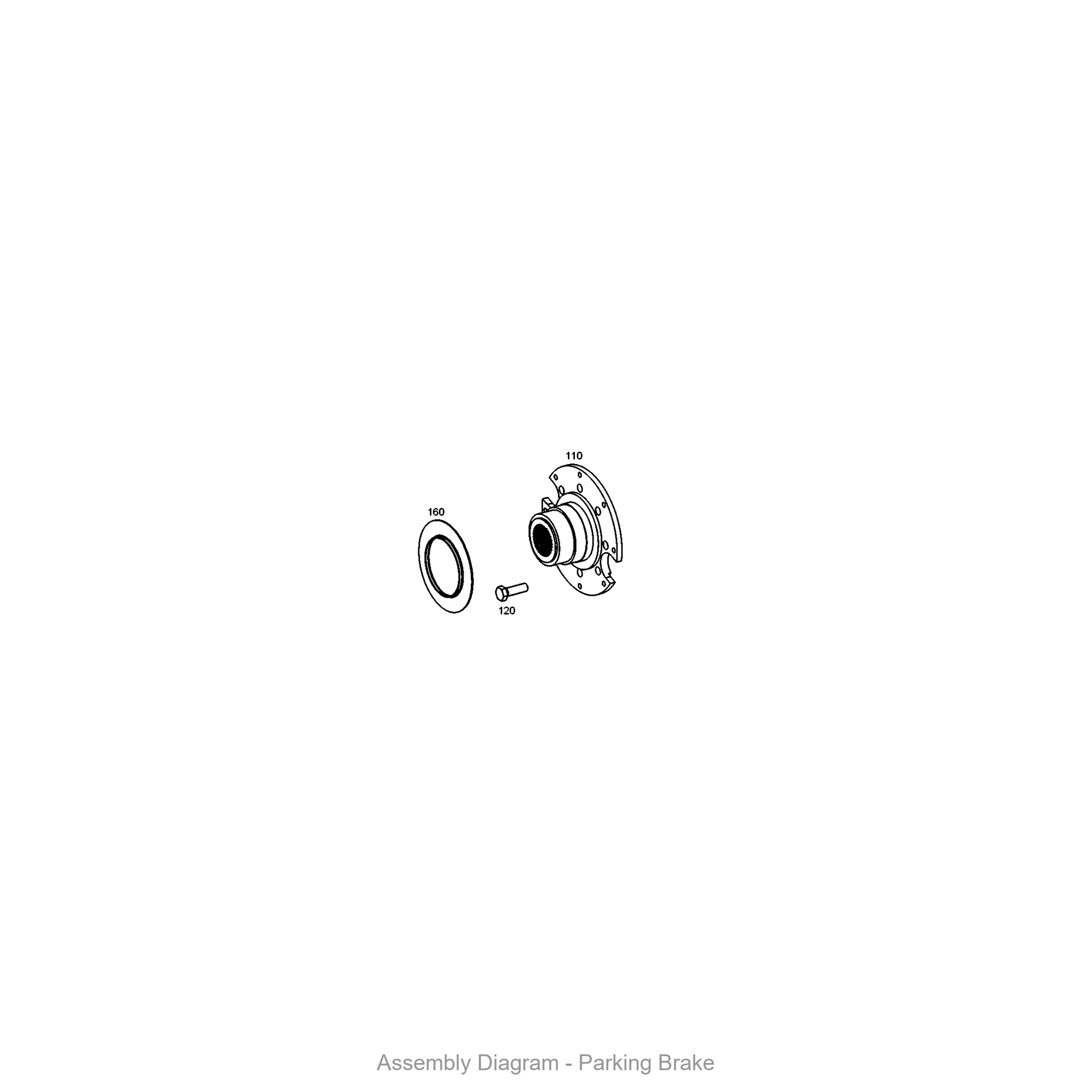

The diagram below shows where ZF 4644.109.438 is located within the transmission assembly.
