ZF 4644.253.044 DISC CARRIER
ZF Part Number: 4644.253.044 (also written as 4644253044 / 4644.253.044 / 4644 253 044)
Compatible ZF Transmission Models
This disc carrier is used in the following ZF transmission models:
- ZF 4 WG 180
- ZF 4 WG 200(555)
- ZF 6 WG 200
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/3)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Clutch | 390 | 1 |
| Coupling | 390 | 1 |
| Coupling | 53.390 | 1 |
Related Parts in Same Assembly
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4168.030.105 — CONVERTER (Qty: 1)
- 4642.307.005 — SPEEDO CONN.PCE (Qty: 1)
- 4644.221.196 — SUCTION TUBE (Qty: 1)
- 4644.231.023 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.226 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.229 — INPUT SHAFT (Qty: 1)
- 4644.303.239 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.253.044?
ZF 4644.253.044 is an OEM disc carrier produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 180, 4 WG 200(555), 6 WG 200, 6 WG 200(555), 6 WG 200(555/3). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.253.044?
This disc carrier is found in 7 ZF transmission variants, including: 4 WG 180, 4 WG 200(555), 6 WG 200, 6 WG 200(555), 6 WG 200(555/3), 6 WG 200(555/4), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.253.044 installed in the transmission?
This disc carrier is located in the clutch, coupling area of the transmission. It appears in 28 different assembly configurations. In the service manual, look for position number 390 in the Clutch section.
How do I look up ZF part 4644.253.044?
This part can be found under several formats: 4644253044 / 4644.253.044 / 4644 253 044. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.253.044).
Where can I buy ZF 4644.253.044?
You can purchase genuine ZF 4644.253.044 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

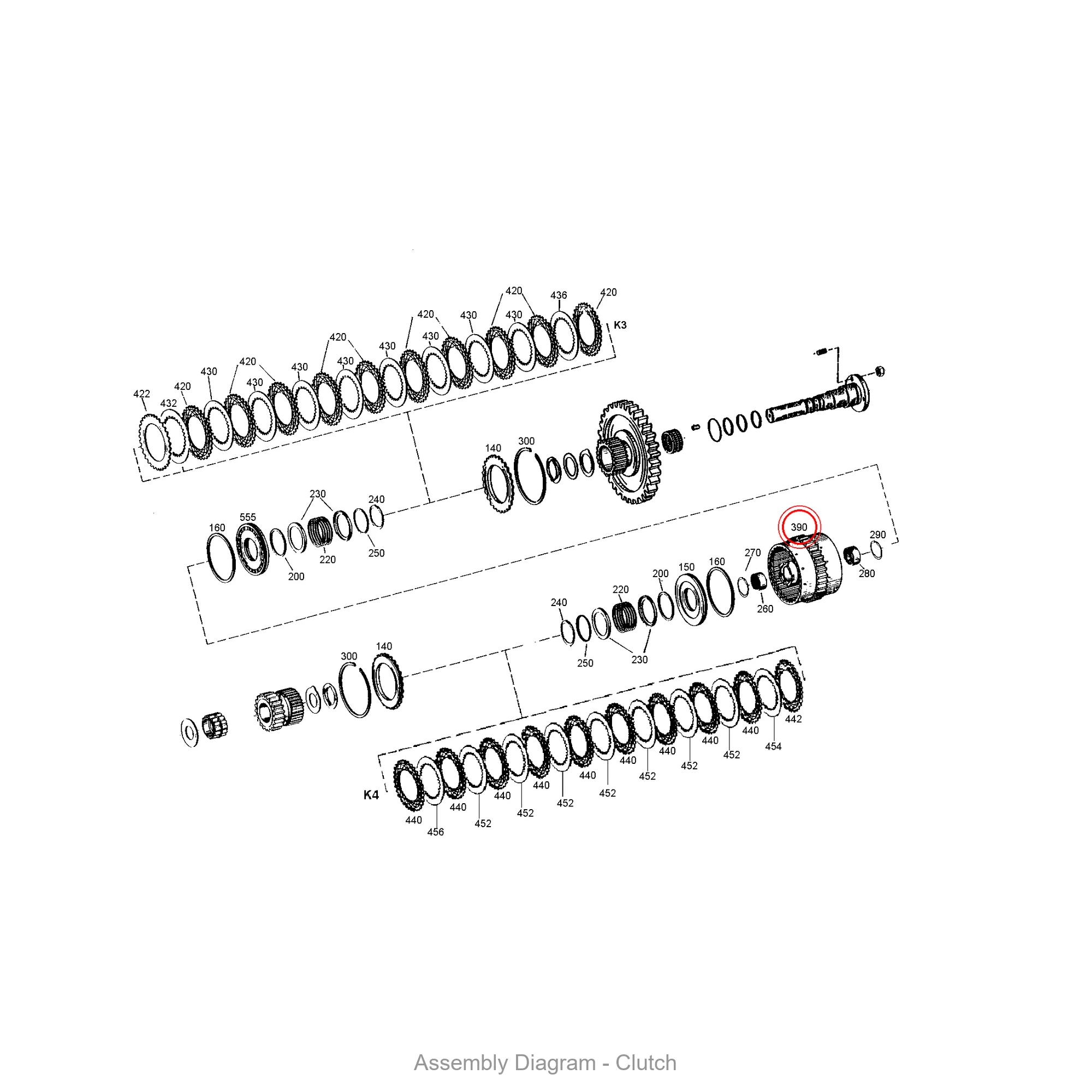

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.253.044 is located within the transmission assembly.
