ZF 4646.152.536 COUPLING
ZF Part Number: 4646.152.536 (also written as 4646152536 / 4646.152.536 / 4646 152 536)
Compatible ZF Transmission Models
This coupling is used in the following ZF transmission models:
- ZF 3 WG 261
- ZF 4 WG 258
- ZF 4 WG 260
- ZF 4 WG 260(4)
- ZF 5 WG 260
Related Parts in Same Assembly
- 0501.006.922 — BRAKE (Qty: 1)
- 0501.209.869 — RANGE SELECTOR (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0501.223.162 — PISTON PUMP (Qty: 1)
- 0637.100.196 — PIPE UNION (Qty: 1)
- 4168.037.054 — CONVERTER (Qty: 1)
- 4475.280.011 — SCREW PLUG (Qty: 3)
Frequently Asked Questions
What is ZF part number 4646.152.536?
ZF 4646.152.536 is an OEM coupling produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 261, 4 WG 258, 4 WG 260, 4 WG 260(4), 5 WG 260. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.152.536?
This coupling is found in 5 ZF transmission variants, including: 3 WG 261, 4 WG 258, 4 WG 260, 4 WG 260(4), 5 WG 260. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.152.536 installed in the transmission?
This coupling is located in the coupling area of the transmission. It appears in 10 different assembly configurations.
How do I look up ZF part 4646.152.536?
This part can be found under several formats: 4646152536 / 4646.152.536 / 4646 152 536. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.152.536).
Where can I buy ZF 4646.152.536?
You can purchase genuine ZF 4646.152.536 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

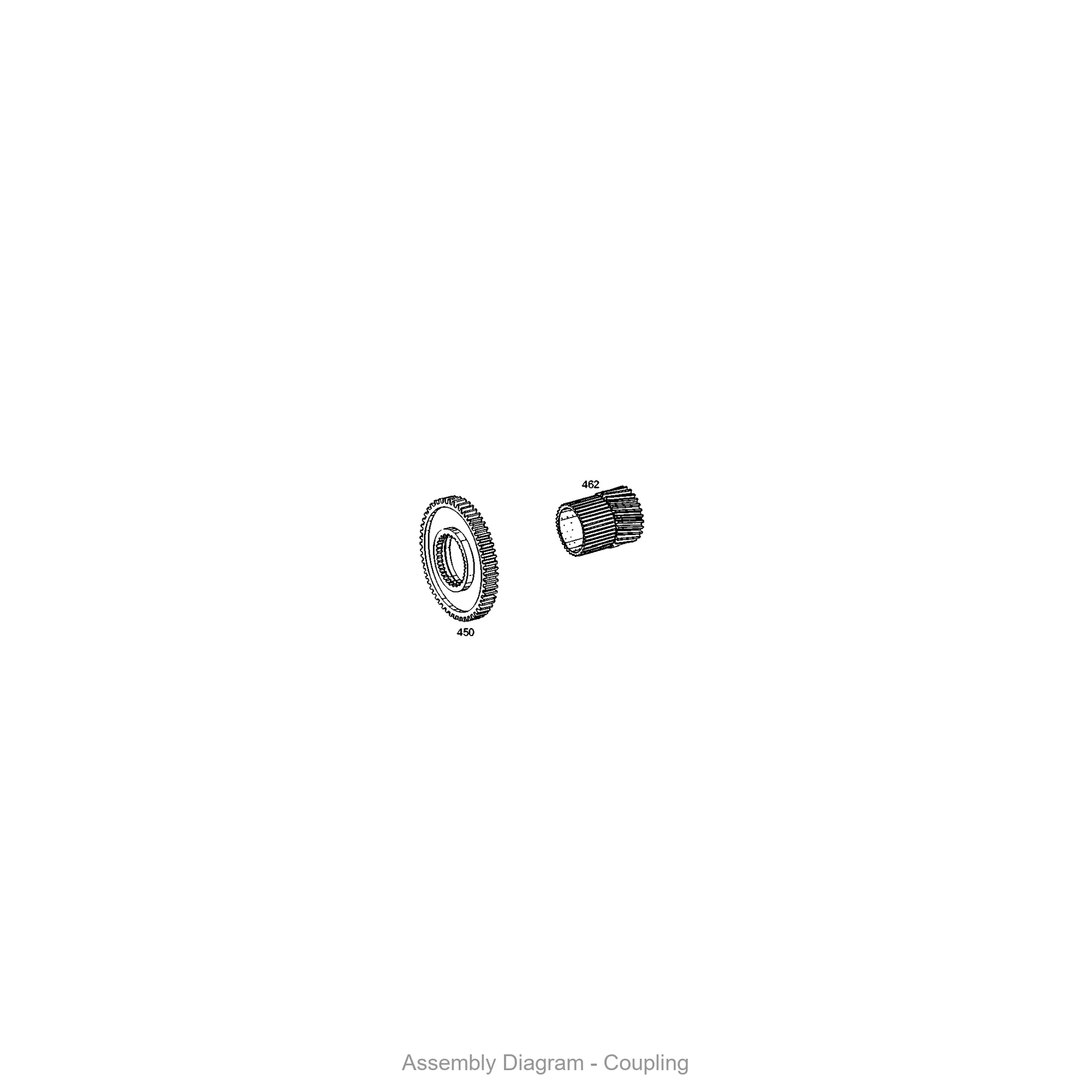

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.152.536 is located within the transmission assembly.
