Overview

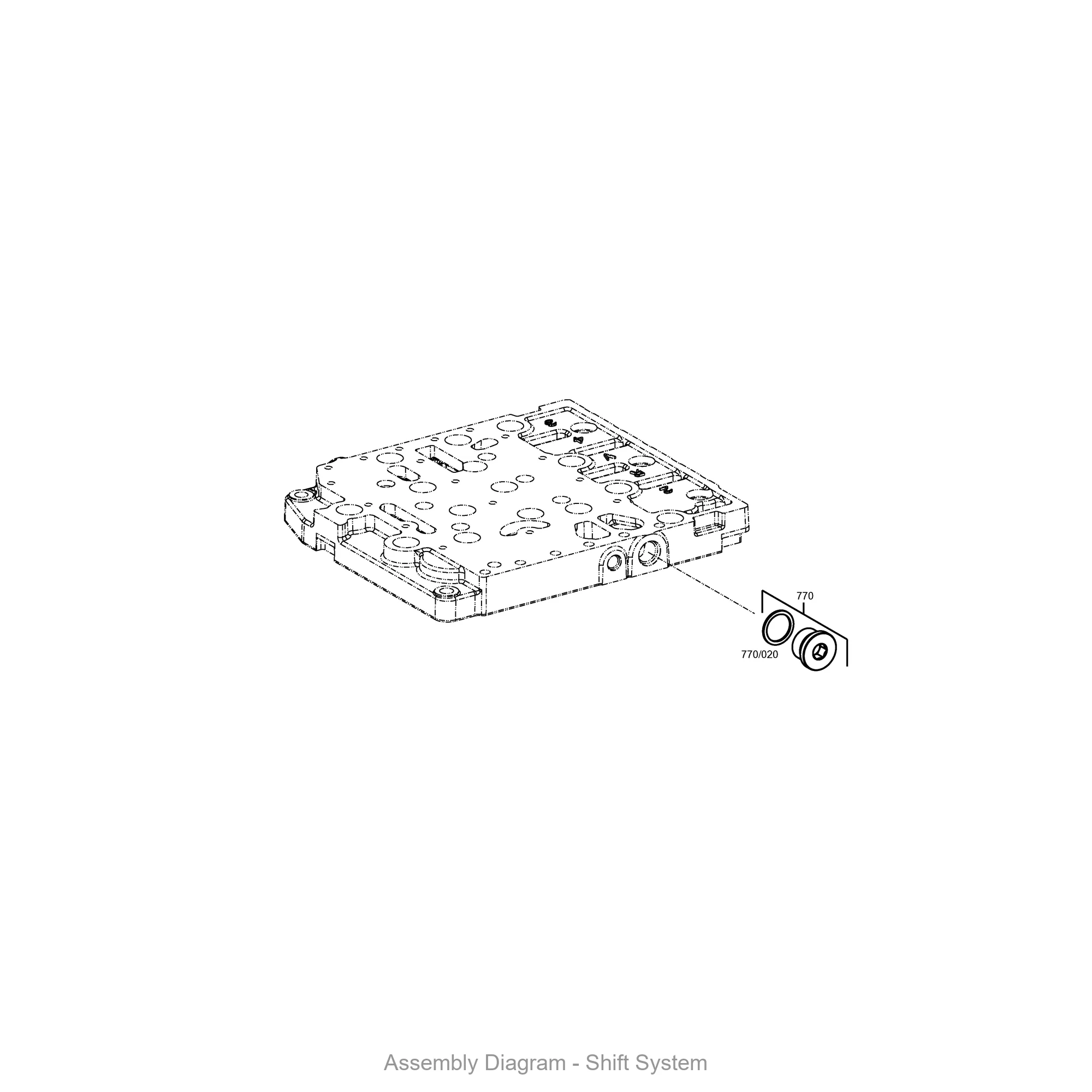

The ZF 4656.206.013 VALVE BLOCK is a precision-machined hydraulic control unit designed for the WG310 transmission series. This OEM genuine part governs the flow of transmission fluid to clutches and shift actuators, ensuring precise gear engagement and torque converter lock-up. Located within the valve body assembly, the SKU 4656.206.013 acts as the central distribution manifold for pressurized oil, directing flow based on electronic solenoid commands. Without this component, the transmission cannot modulate line pressure or execute shift sequences reliably.
Symptoms of Failure
- Erratic or delayed shifting – When the valve block wears internally, hydraulic passages become obstructed, causing harsh engagement or hesitation between gears, especially in WG310 units operating under heavy load.
- Transmission fluid leaks at the valve body interface – Degraded sealing surfaces on the 4656.206.013 allow ATF to seep past mating faces, often pooling near the pan gasket or bell housing.
- Loss of forward or reverse drive – A stuck spool within the valve block can starve a clutch pack of pressure, resulting in intermittent or complete loss of a gear range.
- Elevated operating temperature – Internal cross-leakage forces the pump to work harder, generating excess heat that may trigger thermal warnings on the dashboard.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4656.206.013 |
| OEM Reference | ZF 4656.206.013 |
| Material | High-pressure die-cast aluminum alloy |
| Weight | 1.85 kg (4.08 lbs) |
| Dimensions (L×W×H) | 210 mm × 95 mm × 55 mm |
| Fluid Ports | 8 hydraulic passages (6 mm diameter) |
| Sealing Type | Integrated O-ring grooves (compatible with 0634316523: O-RING) |
| Fastener Torque | 12 Nm (using 0636115293: 螺栓 and 0736300232: 螺栓) |
| Plug Specification | M14 × 1.5 thread (use 4475280208: SCREW PLUG) |
Compatibility
This valve block is engineered for ZF WG-series powershift transmissions used in industrial and construction equipment. Based on the part number structure and hydraulic circuit design, the 4656.206.013 is directly compatible with the following models: WG 160 Series, WG 190 Series, WG 191 Series, WG 210 Series, WG 211 Series, WG 230 Series, WG 261 Series, WG 310 Series, and WG 311 Series. It is the primary valve block for the WG310, but also serves as a service replacement in earlier WG180 and WG200 variants where the original 4656306171 valve block has been superseded. Always verify the casting number on your existing unit before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4656306171 | VALVE BLOCK | Alternate valve block for WG180/200 series |
| 4656306190 | CONNECTING HOUSING | Interfaces valve block to transmission case |
| 0501213997 | PRESSURE REGULATOR | Maintains line pressure stability |
| 0736300094 | TORX SCREW | Secures valve block to housing |
| 4475280047 | SCREW-IN SLEEVE | Provides threaded port for pressure taps |
| 0634306010 | O形圈 | Seals valve block ports against leakage |
| 0636115293 | 螺栓 | M8 mounting bolt for valve block |
| 0736300232 | 螺栓 | M10 bolt for valve body cover |
| 4475280208 | SCREW PLUG | Seals unused hydraulic ports |
| 0634316523 | O-RING | Primary seal between valve block and manifold |
