ZF 4657.303.014 SCREEN SHEET
ZF Part Number: 4657.303.014 (also written as 4657303014 / 4657.303.014 / 4657 303 014)
Compatible ZF Transmission Models
This screen sheet is used in the following ZF transmission models:
- ZF 3 WG 190
- ZF 4 WG 190
- ZF 4 WG 200
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Output | 020 | 1 |
| Output | 112 | 1 |
| Output | 115 | 1 |
| Output | 120 | 1 |
| Output | 125 | 1 |
| Parking Brake | 111 | 1 |
| Parking Brake | 112 | 1 |
| Parking Brake | 114 | 1 |
| Parking Brake | 115 | 1 |
| Parking Brake | 116 | 1 |
| Parking Brake | 120 | 1 |
Related Parts in Same Assembly
- 4475.280.023 — SCREW PLUG (Qty: 1)
- 4475.280.079 — SCREW PLUG (Qty: 1)
- 0634.303.340 — O-RING (Qty: 2)
- 4642.306.254 — ADAPTER (Qty: 2)
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4168.034.033 — CONVERTER (Qty: 1)
- 4644.221.196 — SUCTION TUBE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4657.303.014?
ZF 4657.303.014 is an OEM screen sheet produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 190, 4 WG 190, 4 WG 200, 4 WG 200(555), 4 WG 200(555/5). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4657.303.014?
This screen sheet is found in 6 ZF transmission variants, including: 3 WG 190, 4 WG 190, 4 WG 200, 4 WG 200(555), 4 WG 200(555/5), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4657.303.014 installed in the transmission?
This screen sheet is located in the output, parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 020 in the Output section.
How do I look up ZF part 4657.303.014?
This part can be found under several formats: 4657303014 / 4657.303.014 / 4657 303 014. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4657.303.014).
Where can I buy ZF 4657.303.014?
You can purchase genuine ZF 4657.303.014 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

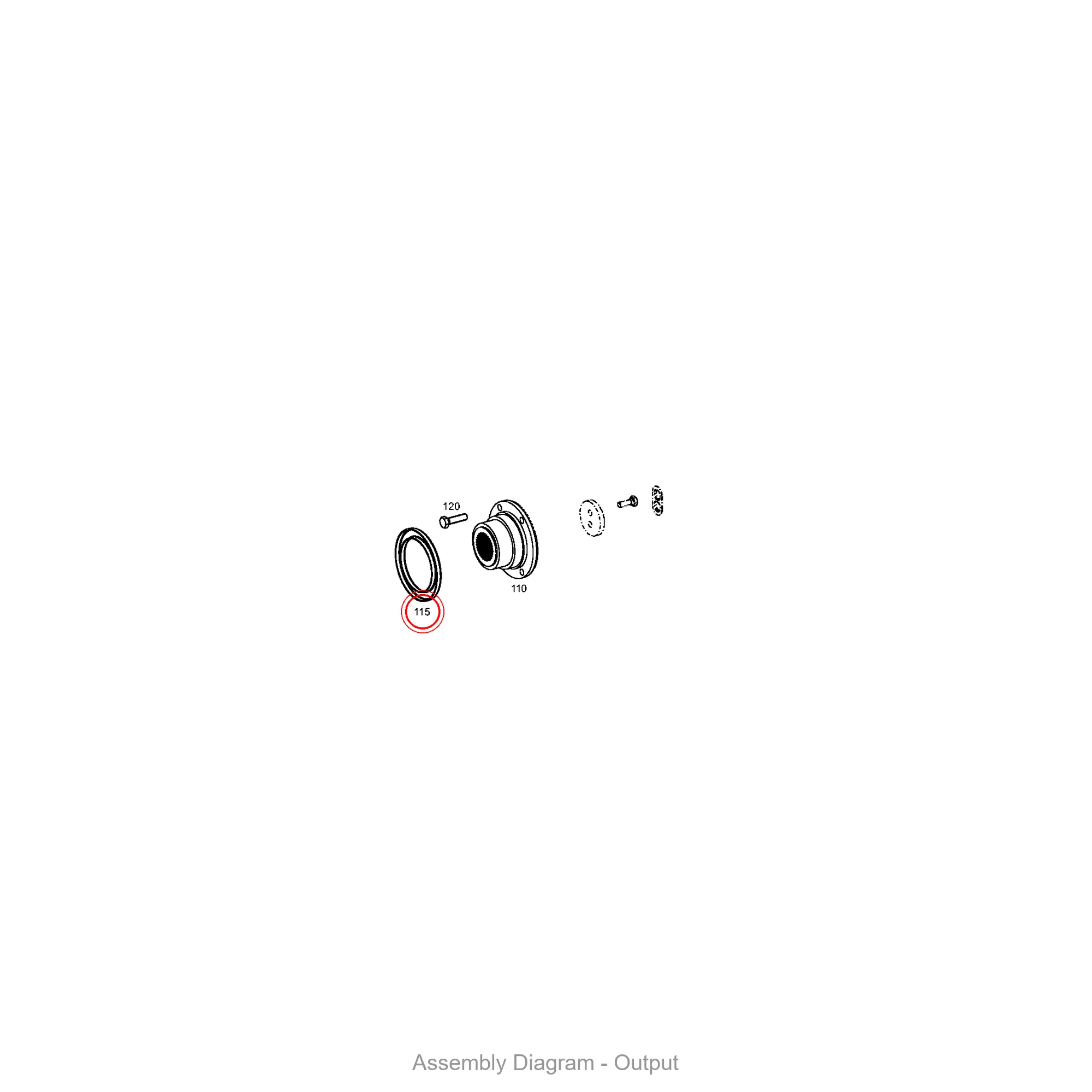

Exploded View / Assembly Diagram
The diagram below shows where ZF 4657.303.014 is located within the transmission assembly.
