Overview
The ZF 4657.354.058 PUMP SHAFT is a precision-machined component engineered specifically for the WG190, WG210, and WG230 series transmissions. This OEM genuine part transmits rotational force from the torque converter to the hydraulic pump, ensuring consistent oil flow for clutch actuation and lubrication. Located within the front section of the transmission housing, the pump shaft (SKU: 4657.354.058) interfaces directly with the TRANSMISSION HOUSING and the HOUS.FRONT SECT to maintain precise alignment under high-torque conditions.
Symptoms of Failure
- Erratic gear engagement or delayed shifting — A worn pump shaft reduces hydraulic pressure, causing hesitation when selecting forward or reverse gears.
- Low transmission oil pressure warning — Internal wear on the shaft splines or bearing surfaces leads to pump cavitation and pressure drops below 8 bar.
- Metallic debris in the oil pan — Flaking or scoring on the shaft surface contaminates the fluid, often accompanied by a whining noise from the pump area.
- Oil leaks near the front housing joint — Excessive shaft play damages the seal interface between the HOUSING REAR PART and the pump housing.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4657.354.058 |
| Overall Length | 215 mm |
| Shaft Diameter (bearing area) | 28 mm |
| Spline Count | 14-tooth involute |
| Material | Case-hardened alloy steel (16MnCr5) |
| Weight | 0.85 kg |
| OEM Reference | ZF 4657.354.058 |
| Surface Treatment | Black oxide + phosphate coating |
Compatibility
This pump shaft is a direct replacement for ZF WG180, WG190, WG200, WG210, and WG230 series transmissions manufactured after 2008. It also fits select ZF 6WG310 models when used with the HOUSING REAR SECTION adapter kit. Always verify the spline count and shaft length against your existing component before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4657101082 | TRANSMISSION HOUSING | Main structural casing that supports the pump shaft and gear sets |
| 4657201166 | HOUS.FRONT SECT | Front section housing that aligns the pump shaft bearing bore |
| 4657201170 | HOUSING REAR PART | Rear housing segment that seals the pump shaft output end |
| 4657298102 | HOUSING REAR SECTION | Alternate rear housing variant for WG230 series |
| 0631306816 | CYLINDRICAL PIN | Alignment dowel for pump shaft positioning |
| 0636100801 | CAP SCREW | M10 fastener for pump shaft retaining plate |
| 4656301148 | FIXING PLATE | Locking plate that prevents shaft axial movement |
| 4657301032 | SCREEN SHEET | Fine mesh filter for pump inlet protection |
| 4657301033 | SCREEN SHEET | Coarse mesh pre-filter for high-debris environments |
| 0636100803 | CAP SCREW | M12 bolt for housing rear section attachment |
Frequently Asked Questions
Q: Can the 4657.354.058 pump shaft be used in a ZF WG180 transmission?
A: Yes, it is fully compatible with WG180 models provided the transmission uses the standard pump housing. Cross-reference your existing shaft length to confirm.
Q: What torque specification should I use for the retaining plate cap screws?
A: Tighten the M10 cap screws (0636100801) to 45 Nm and the M12 screws (0636100803) to 75 Nm using a thread-locking compound. Always replace the fixing plate (4656301148) if deformed.
Q: How do I identify shaft wear without disassembly?
A: Measure the axial play at the pump shaft spline end. Acceptable clearance is 0.05–0.15 mm. Play exceeding 0.25 mm indicates imminent failure and requires replacement of both the shaft and the associated housing sections.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 4657.354.058 PUMP SHAFT – Shaft RFQ Support
PartsZF helps B2B buyers source ZF 4657.354.058 PUMP SHAFT with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This shaft page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 4657.354.058 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4657054086
- Documentation reference: 4657054091
- Documentation reference available for RFQ review
- Documentation reference: 4657025122

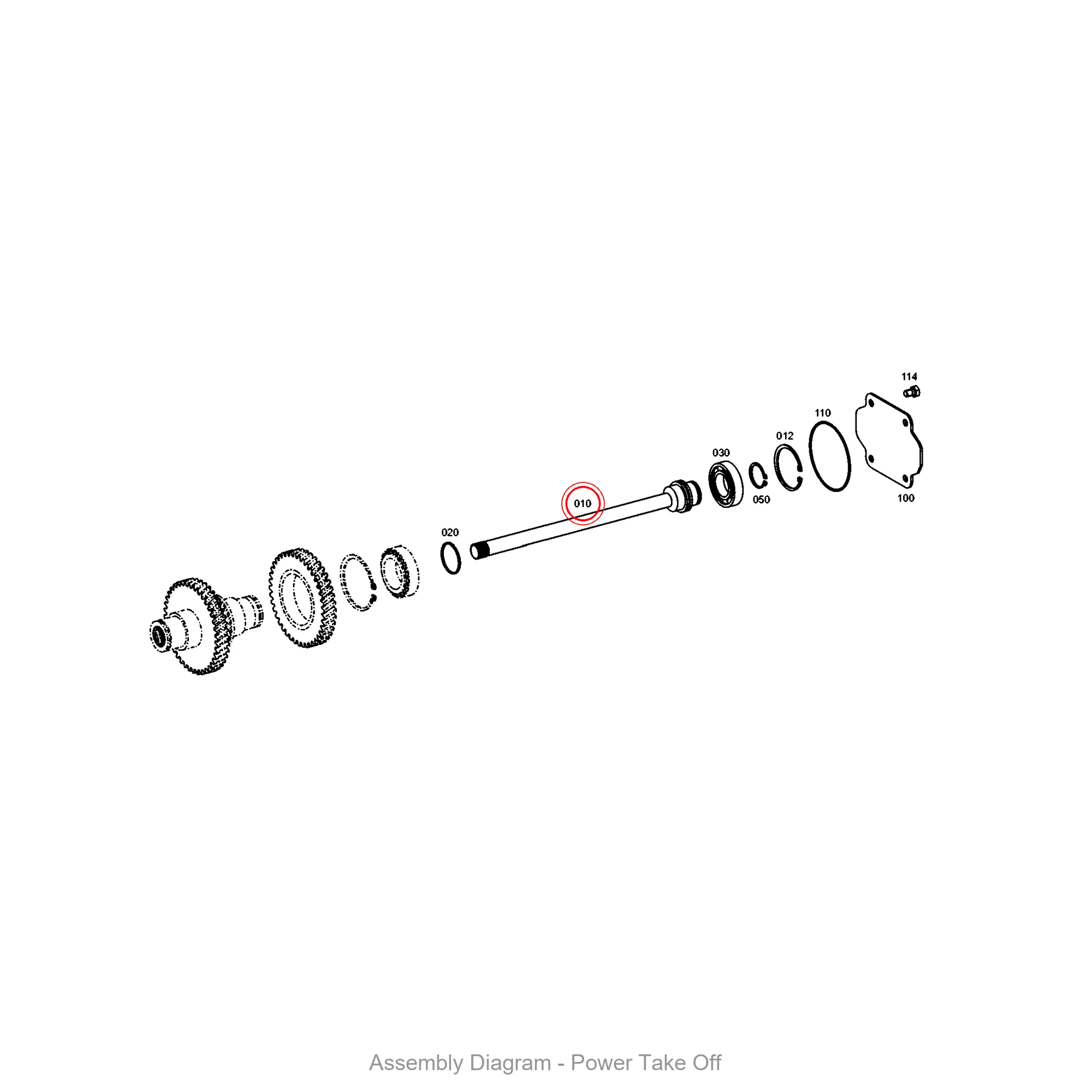

- Illustration section: POWER TAKE OFF
Cross Reference Support
- Cross-reference record available for RFQ review.
Specification Snapshot
| ZF part number | 4657.354.058 |
|---|---|
| Normalized SKU | 4657354058 |
| Part name | PUMP SHAFT |
| Product category | shaft |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
