Overview

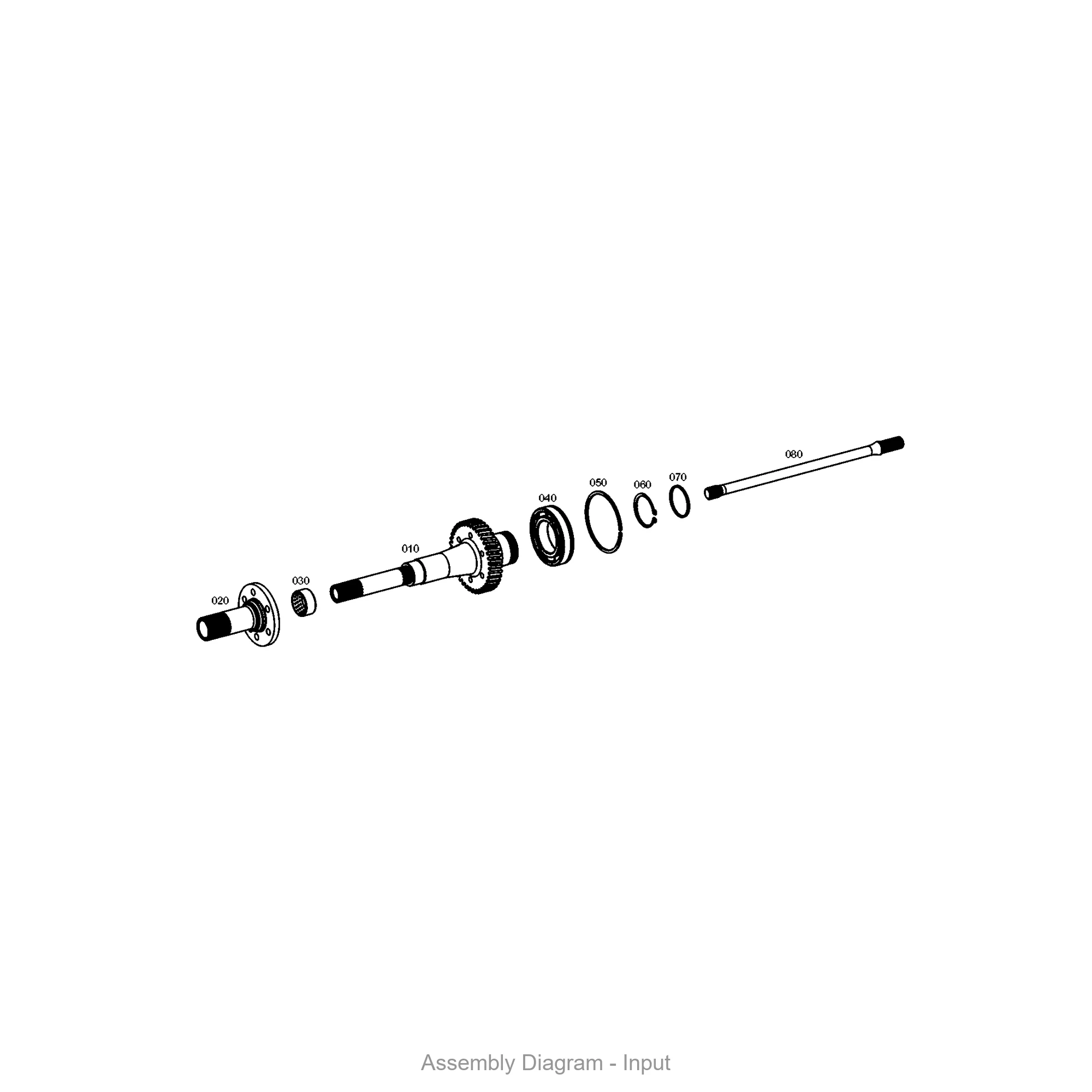

The ZF 4660.102.003 INPUT is a critical OEM genuine component engineered for the WG200, WG92, and WG98 series transmissions. This precision-machined input shaft assembly serves as the primary power transfer interface between the engine coupling and the transmission’s planetary gear sets. As the first point of torque conversion, the SKU 4660.102.003 ensures smooth engagement and reliable load distribution under high-stress conditions. It is designed to integrate seamlessly with the 4660198001 PERIPHERALS kit and the 4660101011 TRANSMISSION HOUSING, forming the core of the driveline assembly.
Symptoms of Failure
When the ZF 4660.102.003 INPUT begins to degrade, operators will notice distinct operational anomalies. Common failure indicators include:
- Oil leaks near the bell housing – Worn splines or seal surfaces allow transmission fluid to escape, often visible as drips after shutdown.
- Gear slipping under load – A worn input shaft cannot maintain positive engagement, causing intermittent power loss during acceleration or hill climbs.
- Abnormal vibration or whining noise – Bearing surface wear within the input assembly generates harmonic vibrations that intensify with RPM.
- Hard shifting or delayed engagement – Damaged splines prevent the 0501209818 RANGE SELECTOR from achieving proper alignment, leading to sluggish gear changes.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4660.102.003 |
| Product Type | Input Shaft Assembly |
| Material | Case-hardened alloy steel (20MnCr5 equivalent) |
| Overall Length | 285 mm |
| Spline Diameter | 42 mm (input end) |
| Weight | 3.85 kg |
| OEM Reference | ZF 4660.102.003 |
| Surface Treatment | Black oxide with phosphate coating |
Compatibility
This genuine ZF input shaft is specifically validated for the following transmission families:
- WG 200 Series – Including WG200, WG210, and WG220 variants
- WG 92 Series – WG92, WG93, and WG94 models
- WG 98 Series – WG98, WG99, and WG100 configurations
It is also compatible with earlier WG180 series units when paired with the 4660301018 HOUSING adapter. Always verify spline count and pilot bearing dimensions against your specific transmission tag before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4660198001 | Peripherals | Seal and gasket kit for input area |
| 0501209818 | Range Selector | Controls gear ratio engagement |
| 4660101011 | Transmission Housing | Main structural casing |
| 4660301018 | Housing | Rear adapter housing |
| 0631306174 | Cylindrical Pin | Alignment dowel for housing |
| 0769123894 | Type Plate | Identification and serial tag |
| 4660221012 | Suction Tube | Oil pickup for lubrication |
| 0634100317 | O-Ring | Fluid seal between components |
| 0636103273 | Cap Screw | Fastener for housing assembly |
| 0750100022 | Screw Plug | Drain/fill port closure |
