Overview
The ZF 4660.301.010 BRACKET is a critical mounting component designed to secure and stabilize auxiliary assemblies within the WG200, WG92, and WG98 transmission series. This OEM genuine part, identified by SKU 4660.301.010, serves as a structural interface between the transmission housing and peripheral systems, ensuring precise alignment under high-torque loads. It is commonly installed adjacent to the 4660198001 PERIPHERALS assembly, where it absorbs vibration and maintains operational integrity. Without this bracket, the transmission’s external components risk misalignment, leading to accelerated wear on adjacent hardware.
Symptoms of Failure
When the ZF 4660.301.010 bracket fatigues or cracks, operators often report “transmission bracket vibration at highway speeds” or “loose peripheral mounting causing oil seepage”. Specific failure indicators include:
- Audible rattling or clunking from the transmission housing during gear shifts, indicating the bracket has lost its clamping force.
- Oil weeping around the bracket mounting points, as a compromised bracket can distort the seal between the 4660101011 TRANSMISSION HOUSING and the 4660301018 HOUSING.
- Intermittent range selector hesitation due to bracket flex affecting the linkage alignment of the 0501209818 RANGE SELECTOR.
- Visible corrosion or hairline fractures near bolt holes, often detected during routine inspection of WG200 series units.
Technical Specifications
| Specification | Value |
|---|---|
| Material | High-strength cast aluminum alloy |
| Weight | 0.85 kg (1.87 lbs) |
| Length | 145 mm |
| Width | 65 mm |
| Height | 40 mm |
| OEM Reference | ZF 4660.301.010 |
| Bolt Hole Pattern | 4x M10 on 90 mm centers |
| Operating Temperature Range | -40°C to +120°C |
Compatibility
This bracket is engineered for the following ZF transmission models, primarily those in the WG family with modular peripheral mounting systems:
- WG 180 Series – Requires bracket for pump and PTO support.
- WG 200 Series – Primary application; direct fit for all WG200 variants.
- WG 90 Series – Compatible with WG92 and WG98 sub-models.
- WG 94 Series – Limited fitment; verify bolt pattern alignment.
Always cross-reference your transmission serial number with the 0769123894 TYPE PLATE to confirm exact compatibility before installation.

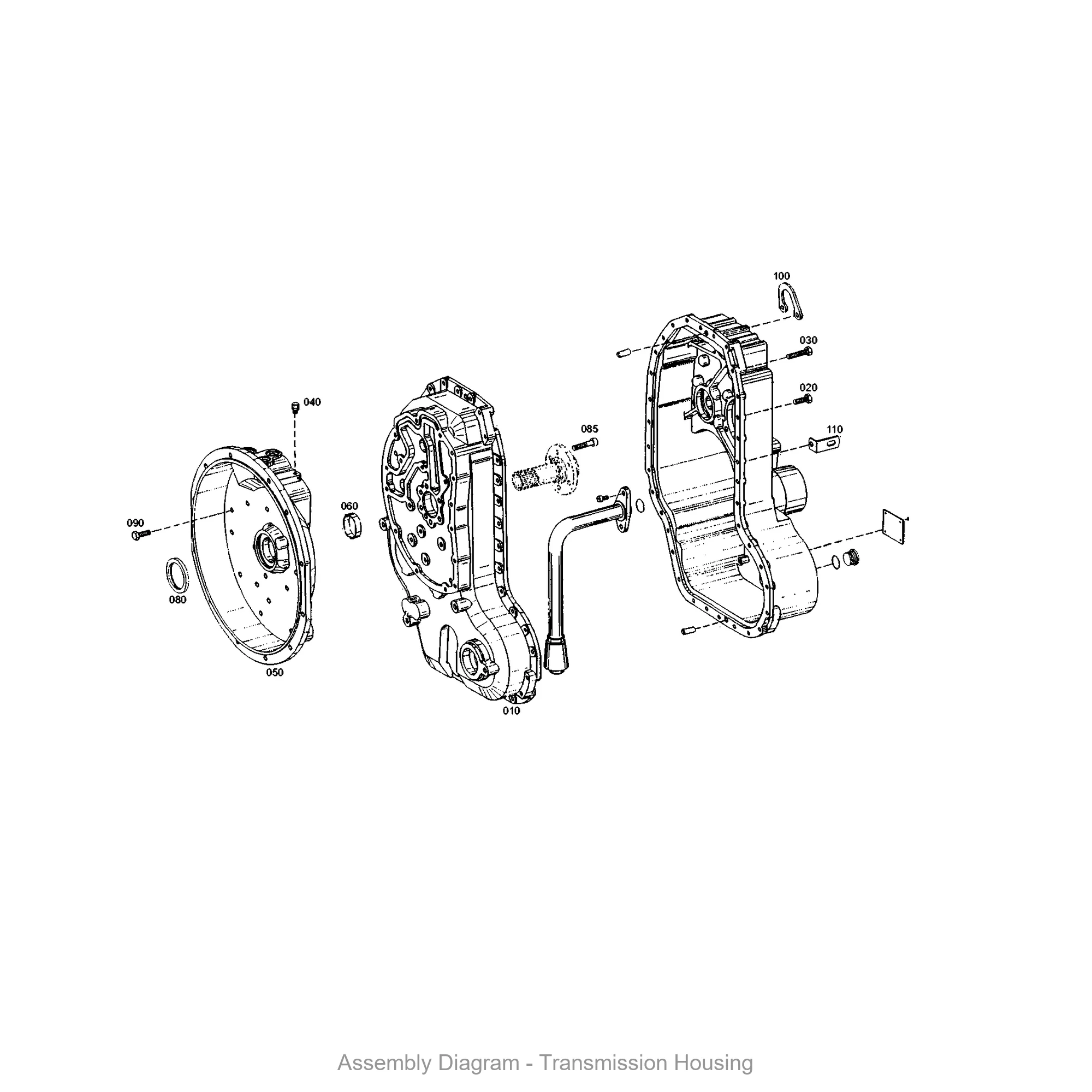

Related Components
| Part Number | Name | Function |
|---|---|---|
| 4660198001 | PERIPHERALS | Mounts auxiliary pumps and valves to the bracket |
| 0501209818 | RANGE SELECTOR | Controls gear range engagement; aligned by bracket |
| 4660101011 | TRANSMISSION HOUSING | Main structural case; bracket bolts directly to it |
| 4660301018 | HOUSING | Secondary housing cover; bracket supports its alignment |
| 0631306174 | CYLINDRICAL PIN | Locates bracket precisely during assembly |
| 0769123894 | TYPE PLATE | Identifies transmission model for part verification |
| 4660221012 | SUCTION TUBE | Routes oil; bracket secures its mounting flange |
| 0634100317 | O-RING | Seals bracket-to-housing interface against leaks |
| 0636103273 | CAP SCREW | Fastens bracket to transmission housing |
| 0750100022 | SCREW PLUG | Seals unused bracket mounting holes |
