ZF 4660.306.029 PISTON for WG 92/WG 98 | OEM Genuine Part

Overview

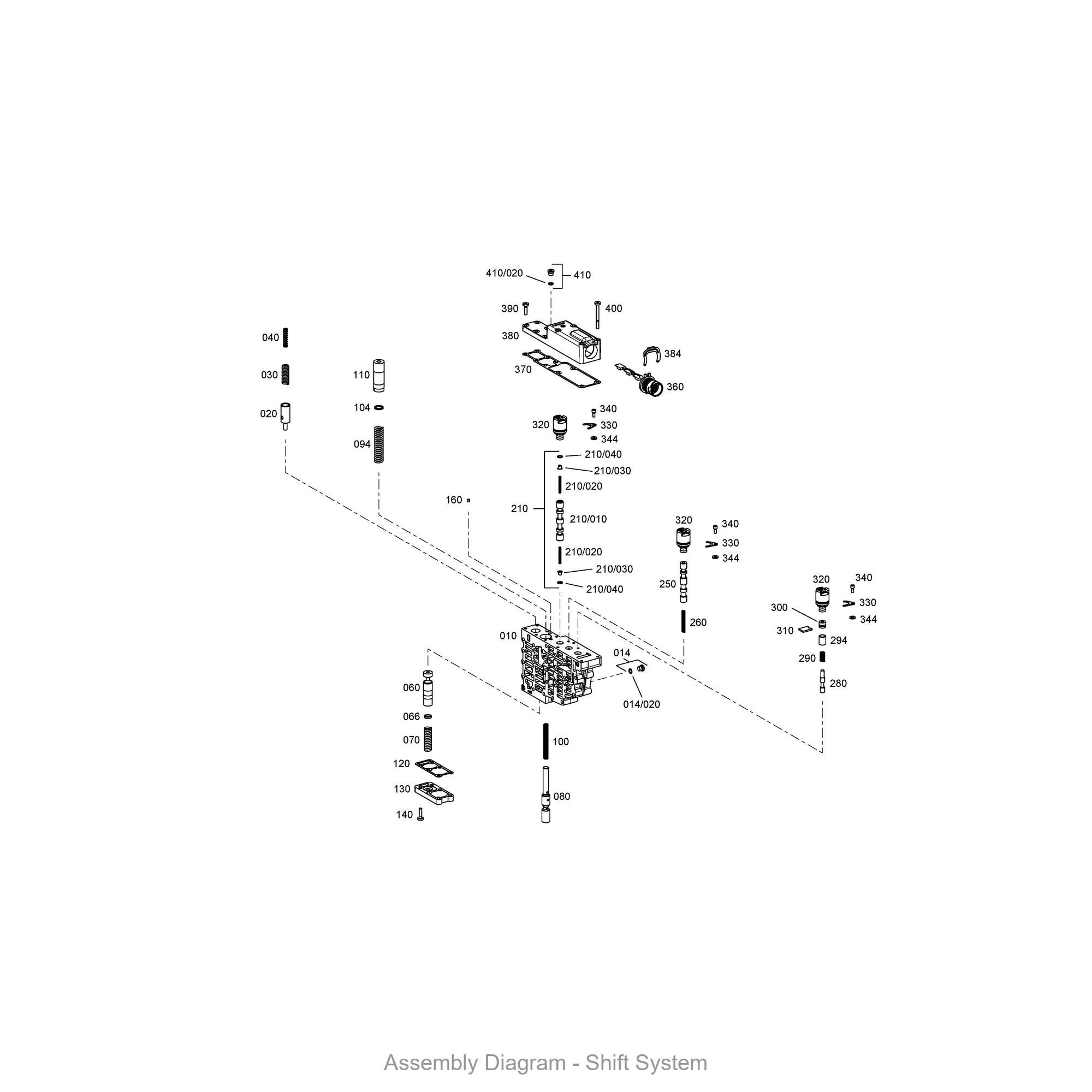

The ZF 4660.306.029 PISTON is a critical hydraulic actuation component engineered for the WG 92, WG 98, and WG 200 Series transmissions. This OEM genuine part functions as a pressure-responsive plunger within the valve body assembly, directing oil flow to engage clutch packs and shift gears. The SKU 4660.306.029 ensures precise sealing and force transmission, directly influencing shift timing and torque converter lockup. When installed alongside the 4660198001 PERIPHERALS kit, it completes the hydraulic circuit necessary for smooth power delivery in heavy-duty off-highway applications.

Symptoms of Failure

• Delayed or harsh gear engagement: A worn 4660.306.029 piston causes sluggish shifts from neutral to drive, often accompanied by a jarring clunk as internal pressure bleeds past the seal.
• Intermittent gear slipping under load: When the piston fails to maintain hydraulic lock, the transmission may momentarily lose torque transfer during uphill climbs or heavy hauling, triggering warning lamps.
• Internal oil leaks and low line pressure: Cracks or scoring on the piston surface allow transmission fluid to bypass, resulting in visible drips from the bell housing and a persistent drop in main pressure gauge readings.
• Erratic shift patterns in WG 98 models: Operators report random upshifts or failure to hold second gear, directly traceable to insufficient piston stroke in the valve body.

Technical Specifications

Compatibility

This piston is a direct fit for ZF WG 92, WG 98, and WG 200 series transmissions commonly used in forklifts, telehandlers, and mobile cranes. It is also compatible with the 0501209818 RANGE SELECTOR assembly and requires proper alignment with the 4660101011 TRANSMISSION HOUSING. For full rebuilds, pairing with the 4660301018 HOUSING ensures correct piston bore clearance. Always verify serial number ranges: WG92 (serial 1000–4500), WG98 (serial 2000–5200), and WG200 (serial 3000–6800).
