ZF 4660.322.001 STOP SLEEVE
ZF Part Number: 4660.322.001 (also written as 4660322001 / 4660.322.001 / 4660 322 001)
Compatible ZF Transmission Models
This stop sleeve is used in the following ZF transmission models:
- ZF 4 WG 92
- ZF 4 WG 98
- ZF 4 WG 98 PS
- ZF 6 WG 200(555/3)
- ZF WG 92
- ZF WG 92 S 4
- ZF WG 98
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Pressure Oil Pump | 060 | 1 |
Related Parts in Same Assembly
- 4660.198.001 — PERIPHERALS (Qty: 1)
- 4660.101.011 — TRANSMISSION HOUSING (Qty: 1)
- 4660.101.804 — TRANSMISSION HOUSING (Qty: 1)
- 4660.102.003 — INPUT (Qty: 1)
- 4660.103.002 — OUTPUT (Qty: 1)
- 4660.103.801 — OUTPUT (Qty: 1)
- 4660.105.009 — CLUTCH (Qty: 1)
- 4660.151.003 — REVERSING GEAR (Qty: 1)
Frequently Asked Questions
What is ZF part number 4660.322.001?
ZF 4660.322.001 is an OEM stop sleeve produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 92, 4 WG 98, 4 WG 98 PS, 6 WG 200(555/3), WG 92. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4660.322.001?
This stop sleeve is found in 7 ZF transmission variants, including: 4 WG 92, 4 WG 98, 4 WG 98 PS, 6 WG 200(555/3), WG 92, WG 92 S 4, WG 98. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4660.322.001 installed in the transmission?
This stop sleeve is located in the pressure oil pump area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 060 in the Pressure Oil Pump section.
How do I look up ZF part 4660.322.001?
This part can be found under several formats: 4660322001 / 4660.322.001 / 4660 322 001. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4660.322.001).
Where can I buy ZF 4660.322.001?
You can purchase genuine ZF 4660.322.001 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

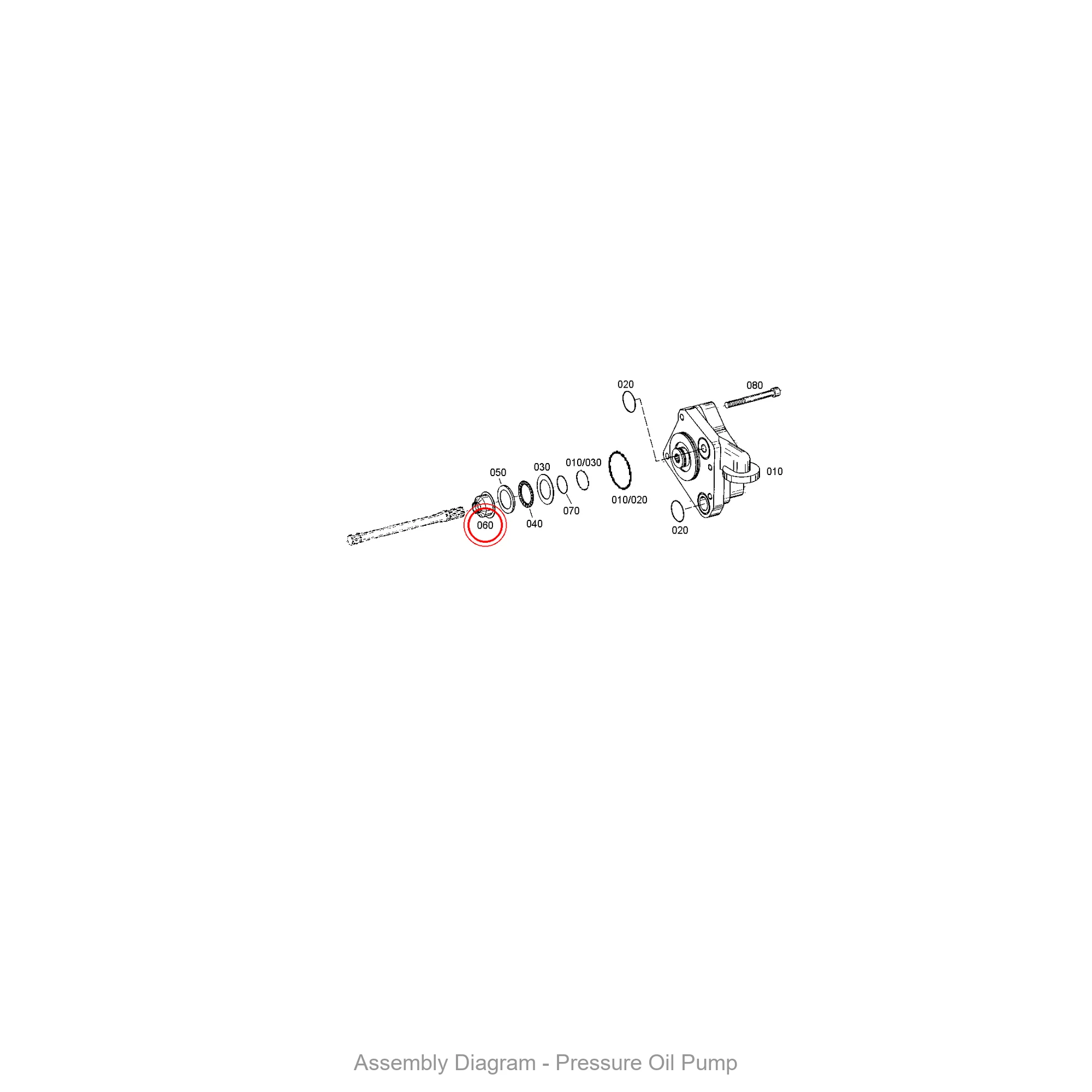

Exploded View / Assembly Diagram
The diagram below shows where ZF 4660.322.001 is located within the transmission assembly.
