At a glance: Knowing the correct oil capacity for your ZF transmission is essential for optimal performance and longevity. Capacity varies by model. Always refer to the identification plate on your transmission or consult the manufacturer’s specifications. When refilling, use the recommended oil type and ensure the level is correct. For reliable ZF parts, including filters and seals, visit XiaoHang Machinery.
* Oil capacity varies greatly depending on the ZF transmission model (e.g., 4WG90, 3WG180).
* The oil specification and capacity are typically listed on the transmission’s identification plate.
* Use only the oil type recommended by ZF for your specific transmission.
* Overfilling or underfilling can damage the transmission.
* The oil specification and capacity are typically listed on the transmission’s identification plate.
* Use only the oil type recommended by ZF for your specific transmission.
* Overfilling or underfilling can damage the transmission.
Engineering Details
Accurate oil levels are vital for ZF transmissions to operate correctly. Too little oil can cause overheating and component wear, while too much can lead to foaming and reduced lubrication effectiveness. Always consult the ZF transmission’s identification plate or the machine’s service manual for the correct oil type and capacity. The ID plate includes: Gearbox type, Serial number, ZF parts list number, Total ratio, Oil spec, List of lubricants, Oil capacity, and Customer number.
HTML table of example ZF Transmission Models and Oil Capacities:
“`html
| ZF Transmission Model | Typical Oil Capacity (liters) | Notes |
|---|---|---|
| 4 WG 90 | Varies – check ID plate | Used in various applications |
| 3 WG 180 | Varies – check ID plate | Common in wheel loaders |
| ZF AP-410/DK Axle | Varies – check service manual | Requires special lubricating oil (API GL-5 SAE90+LS) |
| P 5300 | Varies – check service manual |
“`
- Identify Your Transmission Model: Locate the identification plate on your ZF transmission. Note the model number.
- Determine Oil Capacity: Check the ID plate or consult your machine’s service manual for the specific oil capacity for your transmission model.
- Drain the Old Oil (if applicable): Position a drain pan under the drain plug. Remove the drain plug and allow the old oil to drain completely. Replace the drain plug and tighten to the specified torque.
- Locate the Fill Plug: The fill plug is usually located on the side of the transmission. Refer to your service manual for the exact location.
- Add New Oil: Using a funnel, slowly pour the recommended oil into the fill hole until it reaches the correct level. For ZF AP-410/DK Axles, horizontally place the axle and rotate the hub until the “OIL LEVEL” line is horizontal. Refill until oil overflows from the screw plug hole. Consider using genuine ZF parts from partszf.com during any filter or seal replacement related to the oil change.
- Check the Oil Level: Once you’ve added the specified amount of oil, check the level using the dipstick (if equipped) or by observing the oil level at the fill plug opening. The oil should be level with the bottom of the fill plug hole when the transmission is at operating temperature.
- Finalize: Replace the fill plug and tighten it to the specified torque. Clean any spilled oil.
Always use the correct oil specification recommended by ZF. Using the wrong oil can cause irreversible damage to the transmission’s internal components. Also, be extremely careful not to introduce contaminants into the transmission during the filling process. According to our technicians at XiaoHang Machinery, one of the most common issues we see is using generic “universal” transmission fluids. These often lack the specific additives required for ZF transmissions, leading to premature wear and failure.
| Part Number | Name | Application | Notes |
|---|---|---|---|
| 0631329191 | SPRING PIN | Various | genuine ZF replacement part |
| 4646101462 | TRANSMISSION HOUSING | Various | genuine ZF replacement part |
| 4660103003 | OUTPUT | Various | genuine ZF replacement part |
| 4656176007 | COUPLING | Various | genuine ZF replacement part |

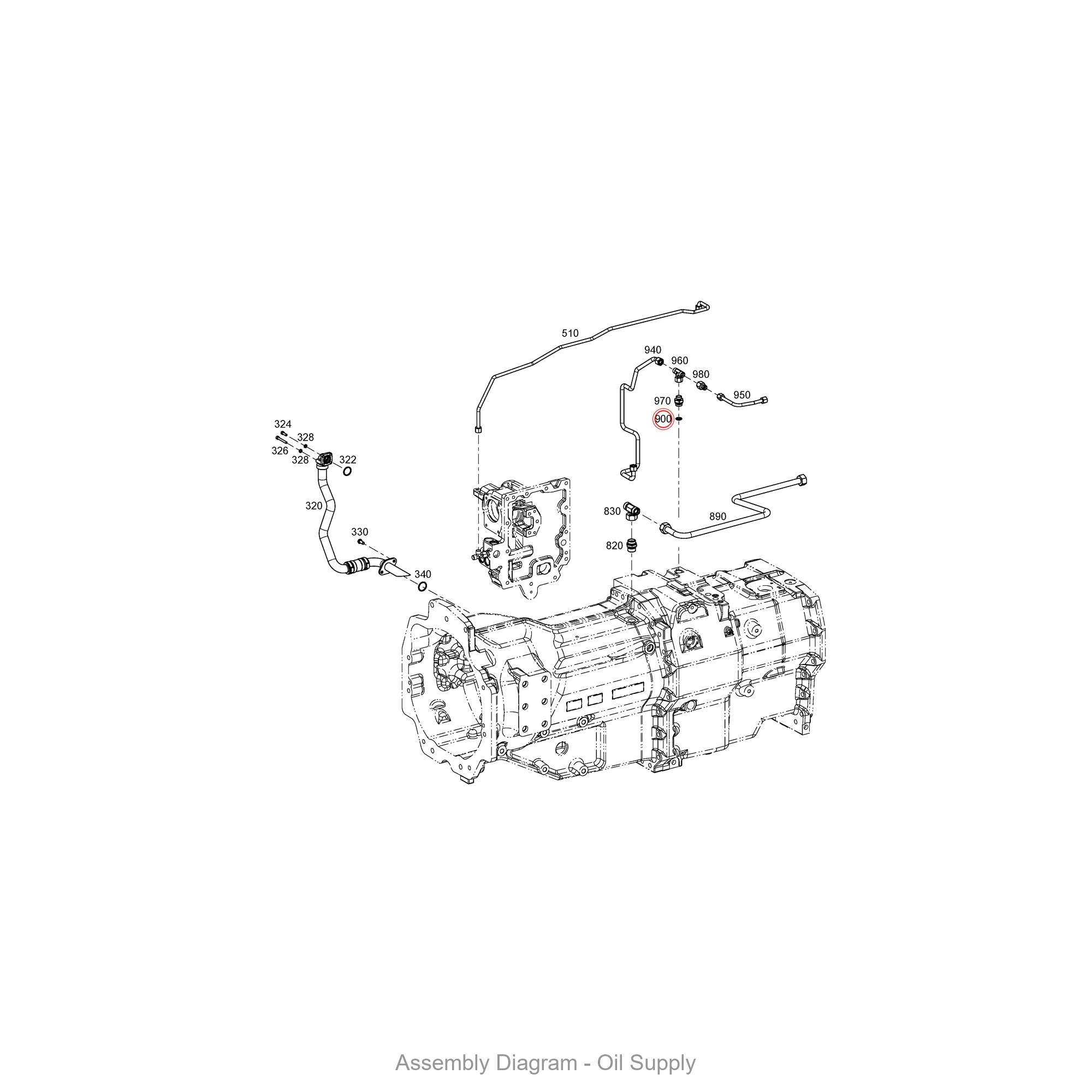

| 0501316130 | SCREEN INSERT | Various | SCREEN INSERT (0501316130) |
| 4656055114 | Various | ||
| 4644130105 | ENGINE CONNECTION | Various | |
| 4661001013 | 4 WG 90 | Transmission | |
| 0630502039 | RETAINING RING | Various | |
| 0501318782 | OUTPUT FLANGE | Various | |
| 0732042663 | COMPRESSION SPRING | Various | |
| 4108015067 | P 5300 | Transmission | |
| 0634306214 | O-RING | Various | |
| 6009092300 | Various | ||
| 0501211287 | RANGE SELECTOR | Transmission |
