ZF 0501.314.964 RETAINING RING
ZF Part Number: 0501.314.964 (also written as 0501314964 / 0501.314.964 / 0501 314 964)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Lastschaltgr | 080 | 4 |
| Power Shift Group | 080 | 1 |
| Power Shift Group | 090 | 3 |
| Splitter Box | 310 | 7 |
| Splitter Box | 320 | 5 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 2093.005.092 | LASTSCHALTGR | — |
| 2093.005.092 | SPLITTER BOX | — |
| 2093.005.094 | LASTSCHALTGR | — |
| 2093.005.094 | SPLITTER BOX | — |
| 2093.005.130 | LASTSCHALTGR | — |
| 2093.005.130 | SPLITTER BOX | — |
| 2093.005.131 | LASTSCHALTGR | — |
| 2093.005.131 | SPLITTER BOX | — |
| 2093.005.132 | LASTSCHALTGR | — |
| 2093.005.132 | SPLITTER BOX | — |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0501.314.964?
ZF 0501.314.964 is an OEM retaining ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 0501.314.964 installed in the transmission?
This retaining ring is located in the lastschaltgr, splitter box area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 080 in the Lastschaltgr section.
How do I look up ZF part 0501.314.964?
This part can be found under several formats: 0501314964 / 0501.314.964 / 0501 314 964. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.314.964).
Where can I buy ZF 0501.314.964?
You can purchase genuine ZF 0501.314.964 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

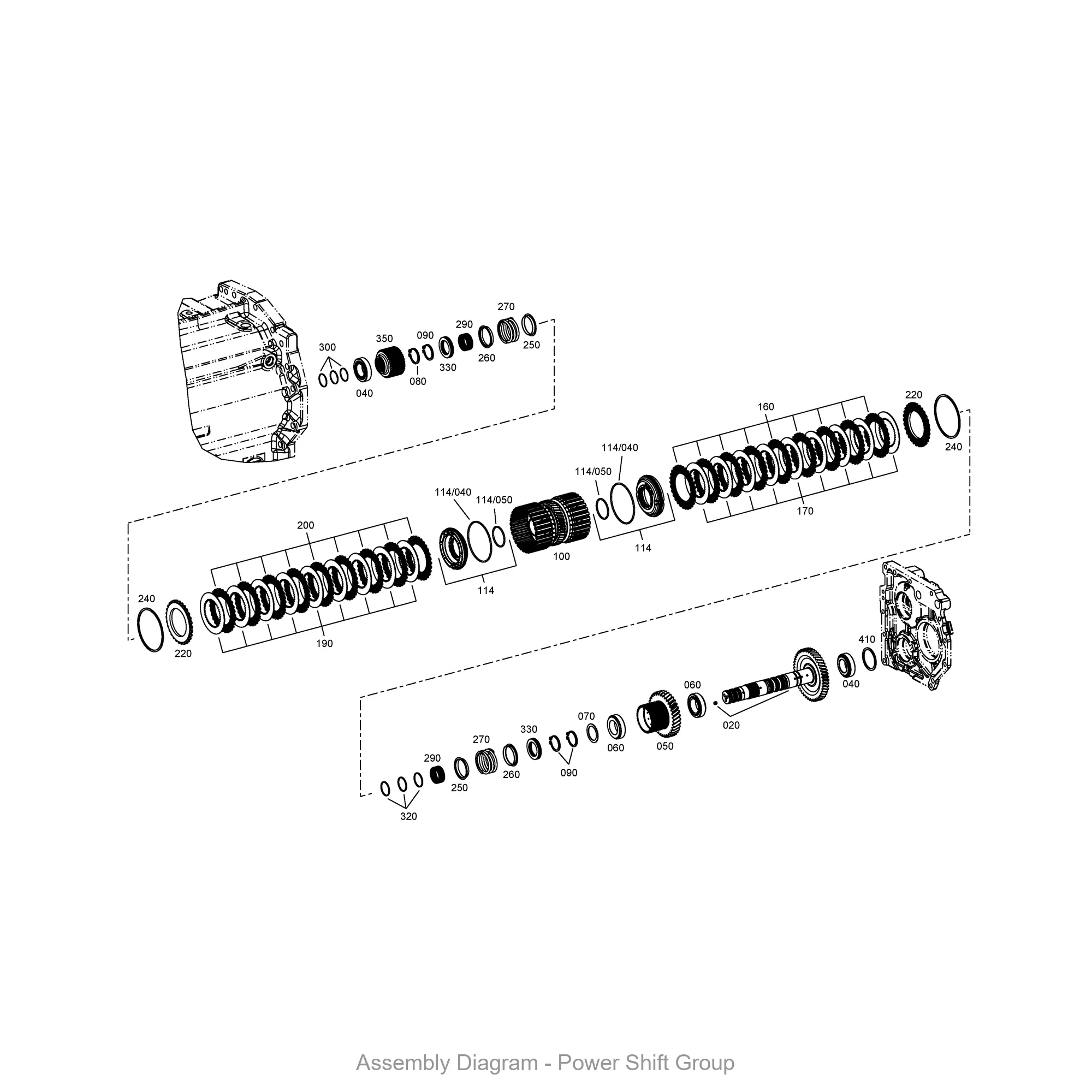

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.314.964 is located within the transmission assembly.
