ZF 0501.322.534 TEMPERATURE SENSOR
ZF Part Number: 0501.322.534 (also written as 0501322534 / 0501.322.534 / 0501 322 534)
OEM Cross Reference / Interchange Numbers
ZF 0501.322.534 (TEMPERATURE SENSOR) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 柳工 | SP125411 | OEM Cross Ref |
If you are looking for 柳工 SP125411, the correct ZF original part number is 0501.322.534. This is a 100% ZF replacement, guaranteed to be fully compatible with 柳工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This temperature sensor is used in the following ZF transmission models:
- ZF 3 WG 201
- ZF 3 WG 260
- ZF 4 WG 200(555/5)
- ZF 4 WG 250(2)
- ZF 4 WG 251
- ZF 4 WG 261
- ZF 4 WG 261(4)
- ZF 4 WG 311
- ZF 5 WG 311
- ZF 6 WG 200(555/5)
- ZF 6 WG 201
- ZF 6 WG 250
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Accessories | 030 | 1 |
| Accessories | 080 | 1 |
| Accessories | 100 | 1 |
| Inductive Sensor | 054 | 1 |
| Input | 260 | 1 |
| Pressure Regulator | 160 | 1 |
| Shift System | 06.780 | 1 |
| Temperature Sensor | 054 | 1 |
| Temperature Sensor | 260 | 1 |
| Temperature Sensor | 270 | 1 |
| Transmission Housing | 062 | 1 |
Related Parts in Same Assembly
- 0501.317.159 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 0899.005.050 — BRAKE (Qty: 1)
- 4166.336.409 — CIRCUIT COVER (Qty: 1)
- 4644.221.196 — SUCTION TUBE (Qty: 1)
- 4644.231.179 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.401 — TRANSMISSION HOUSING (Qty: 1)
- 4644.303.239 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.322.534?
ZF 0501.322.534 is an OEM temperature sensor produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 201, 3 WG 260, 4 WG 200(555/5), 4 WG 250(2), 4 WG 251. Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 0501.322.534?
This temperature sensor is found in 12 ZF transmission variants, including: 3 WG 201, 3 WG 260, 4 WG 200(555/5), 4 WG 250(2), 4 WG 251, 4 WG 261, 4 WG 261(4), 4 WG 311, 5 WG 311, 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.322.534 installed in the transmission?
This temperature sensor is located in the input, temperature sensor, transmission housing area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 030 in the Accessories section.
How do I look up ZF part 0501.322.534?
This part can be found under several formats: 0501322534 / 0501.322.534 / 0501 322 534. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.322.534).
Where can I buy ZF 0501.322.534?
You can purchase ZF 0501.322.534 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

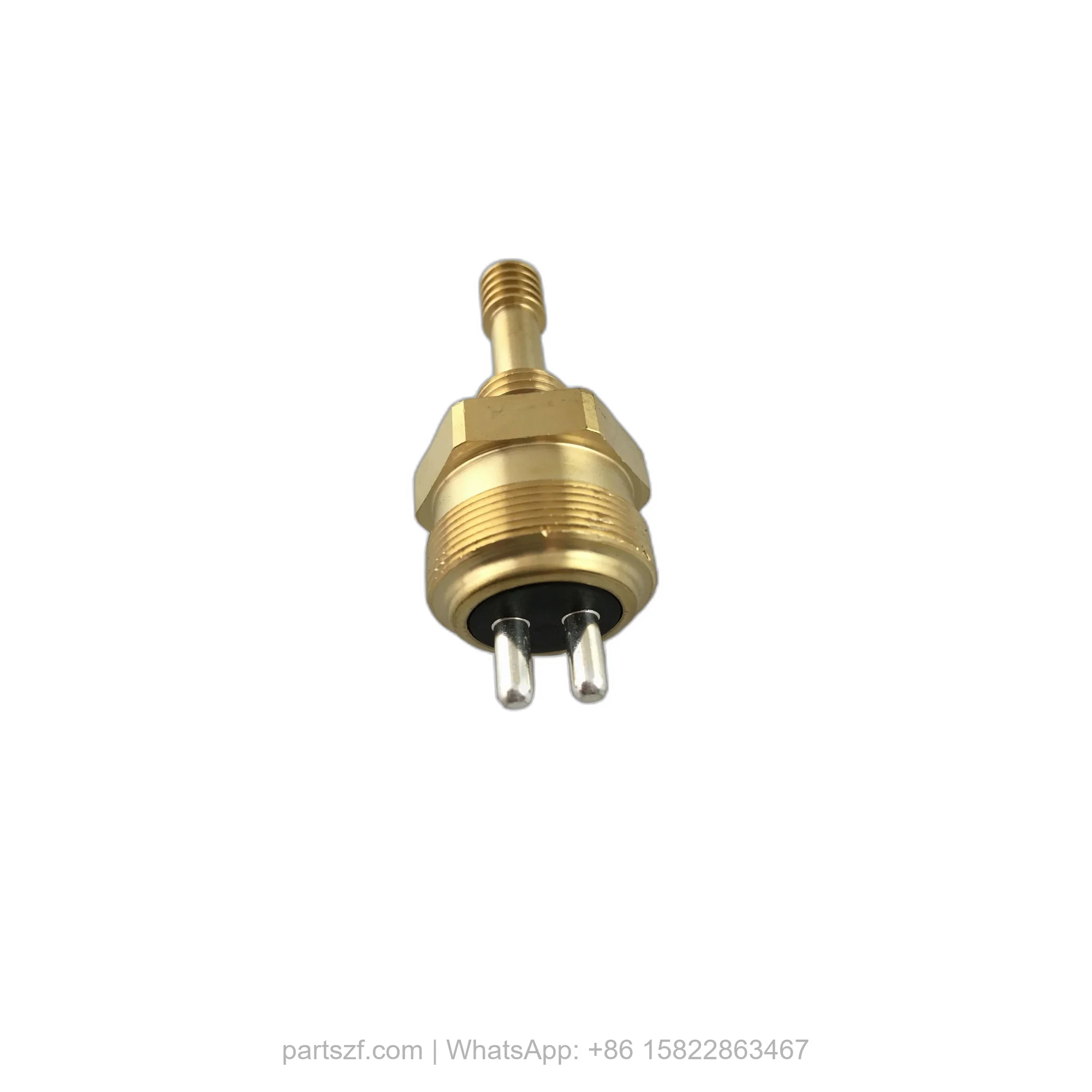

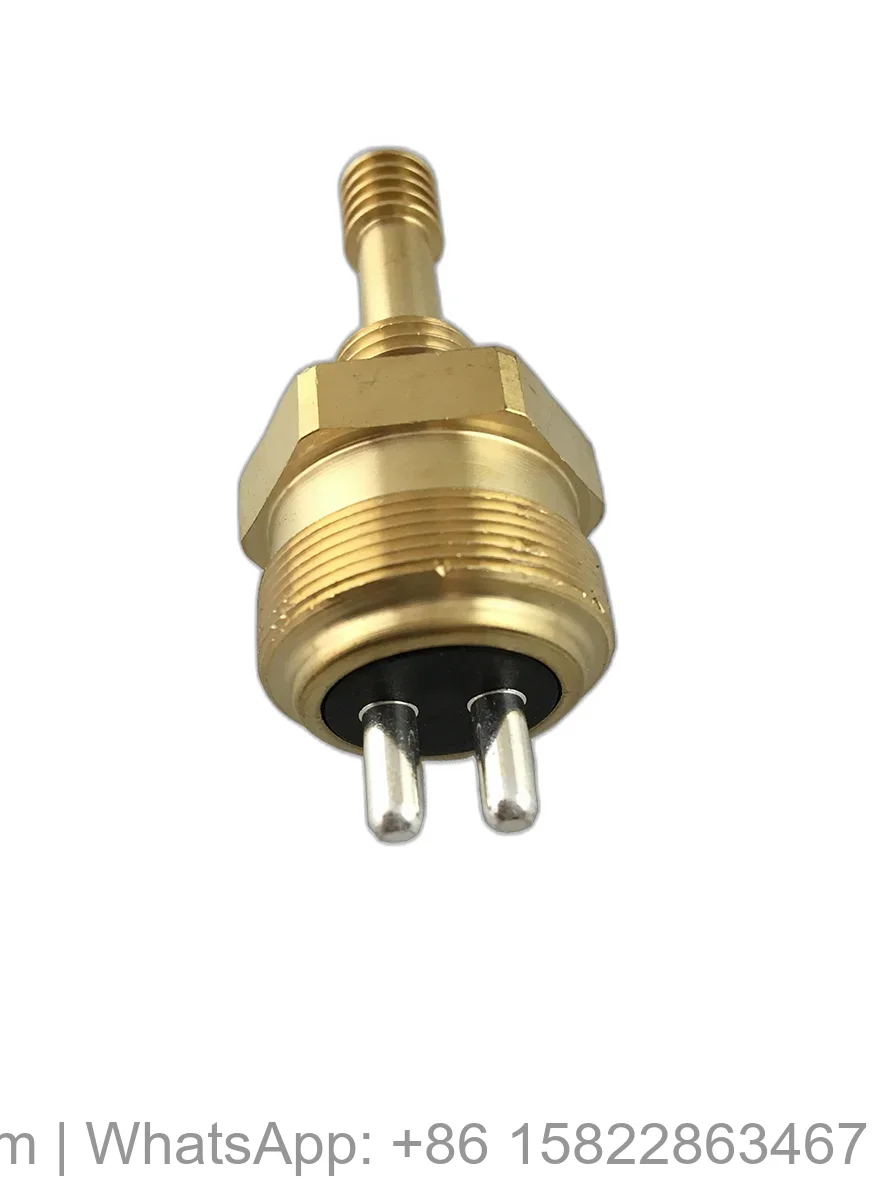

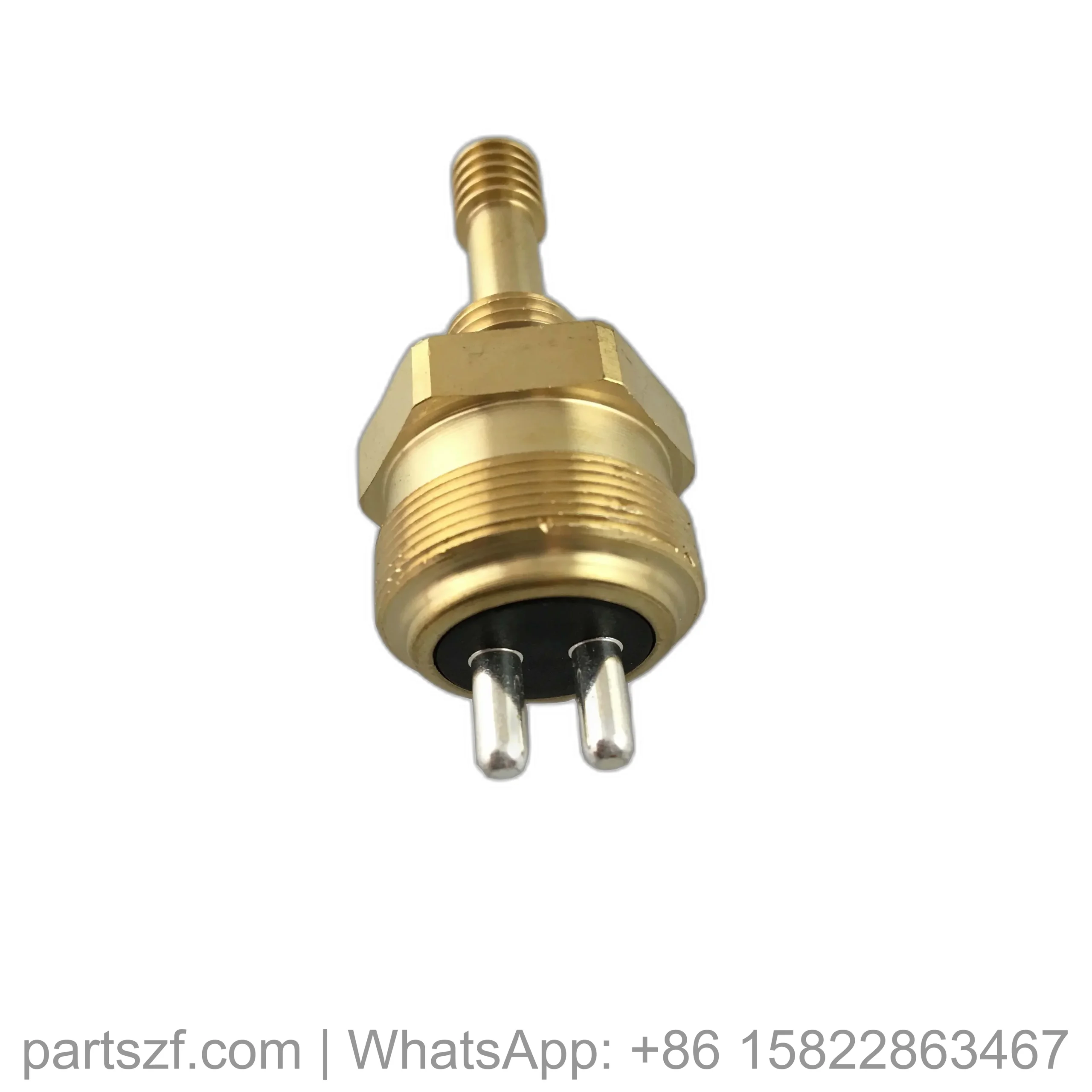

Product Photos

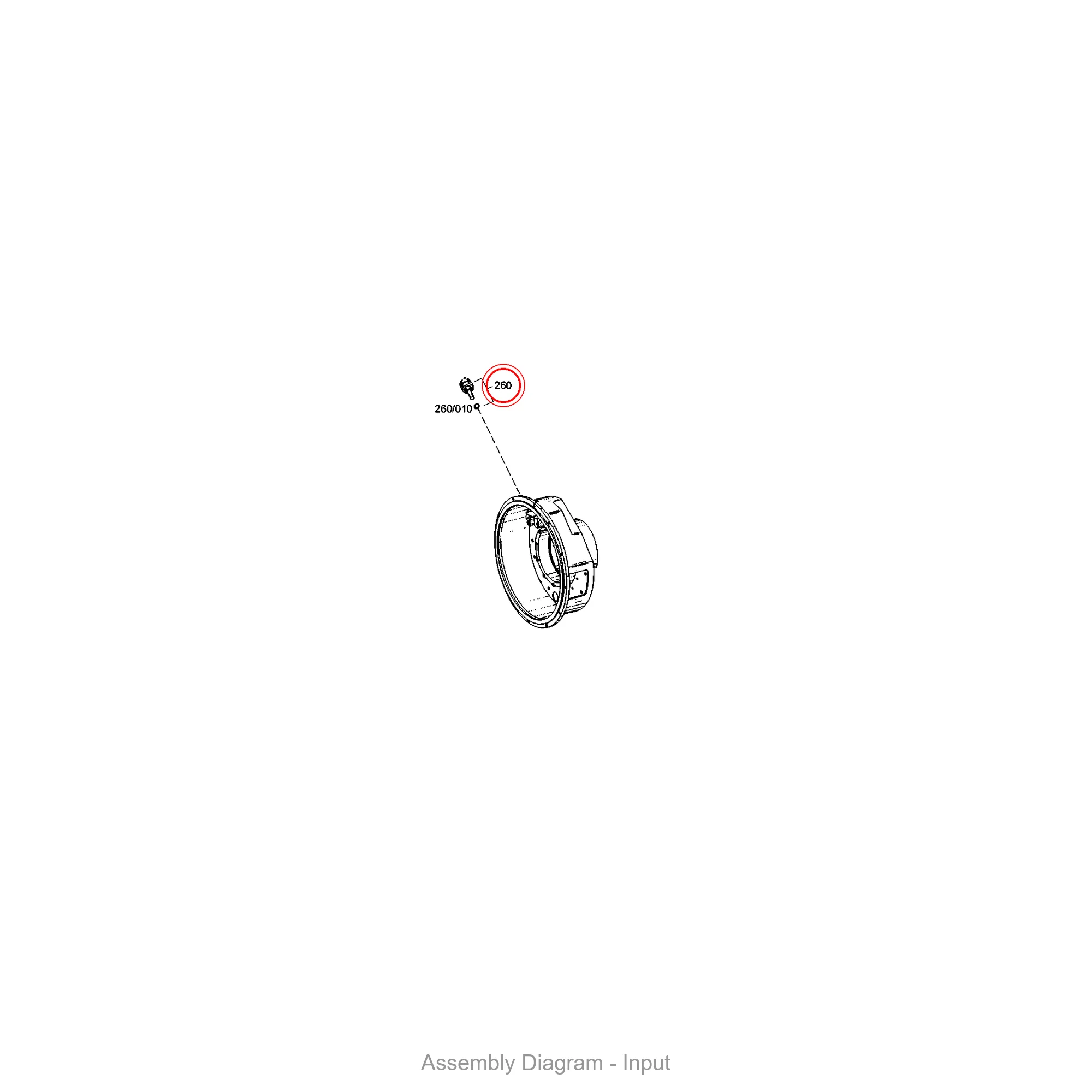

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.322.534 is located within the transmission assembly.
ZF 0501.322.534 Part Context
ZF 0501.322.534 is listed in the local BOM as TEMPERATURE SENSOR. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
3 WG 201, 3 WG 260, 4 WG 200(555/5), 4 WG 250(2), 4 WG 251, 4 WG 261, 4 WG 261(4), 4 WG 311
Cross Reference
SP125411
Replacement Scenario
Use this temperature sensor listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0501.322.534 |
|---|---|
| Name | TEMPERATURE SENSOR |
| Sections | INPUT, TEMPERATURE SENSOR, TRANSMISSION HOUSING |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
