ZF 0630.513.006 SNAP RING
ZF Part Number: 0630.513.006 (also written as 0630513006 / 0630.513.006 / 0630 513 006)
Compatible ZF Transmission Models
This snap ring is used in the following ZF transmission models:
- ZF 3 WG 190
- ZF 3 WG 200
- ZF 3 WG 210
- ZF 3 WG 310
- ZF 4 WG 190
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 4 WG 210
- ZF 4 WG 310
- ZF 5 WG 190
- ZF 5 WG 260
- ZF 6 WG 180(555)
- ZF 6 WG 190
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/5)
…and 5 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Differential | 144 | 1 |
| Differential | 250 | 1 |
| Differential | 270 | 1 |
| Differential | 480 | 2 |
| Input | 190 | 1 |
Related Parts in Same Assembly
- 4143.101.009 — HOUSING (Qty: 1)
- 4143.101.410 — HOUSING (Qty: 1)
- 4143.102.002 — INPUT (Qty: 1)
- 4143.102.405 — INPUT (Qty: 1)
- 4143.103.005 — OUTPUT (Qty: 1)
- 4143.103.401 — OUTPUT (Qty: 1)
- 4143.115.003 — PLANETARY DRIVE (Qty: 1)
- 4143.121.007 — OIL PIPE (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.513.006?
ZF 0630.513.006 is an OEM snap ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 190, 3 WG 200, 3 WG 210, 3 WG 310, 4 WG 190. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.513.006?
This snap ring is found in 20 ZF transmission variants, including: 3 WG 190, 3 WG 200, 3 WG 210, 3 WG 310, 4 WG 190, 4 WG 200(555), 4 WG 200(555/5), 4 WG 210, 4 WG 310, 5 WG 190. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.513.006 installed in the transmission?
This snap ring is located in the input area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 144 in the Differential section.
How do I look up ZF part 0630.513.006?
This part can be found under several formats: 0630513006 / 0630.513.006 / 0630 513 006. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.513.006).
Where can I buy ZF 0630.513.006?
You can purchase genuine ZF 0630.513.006 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

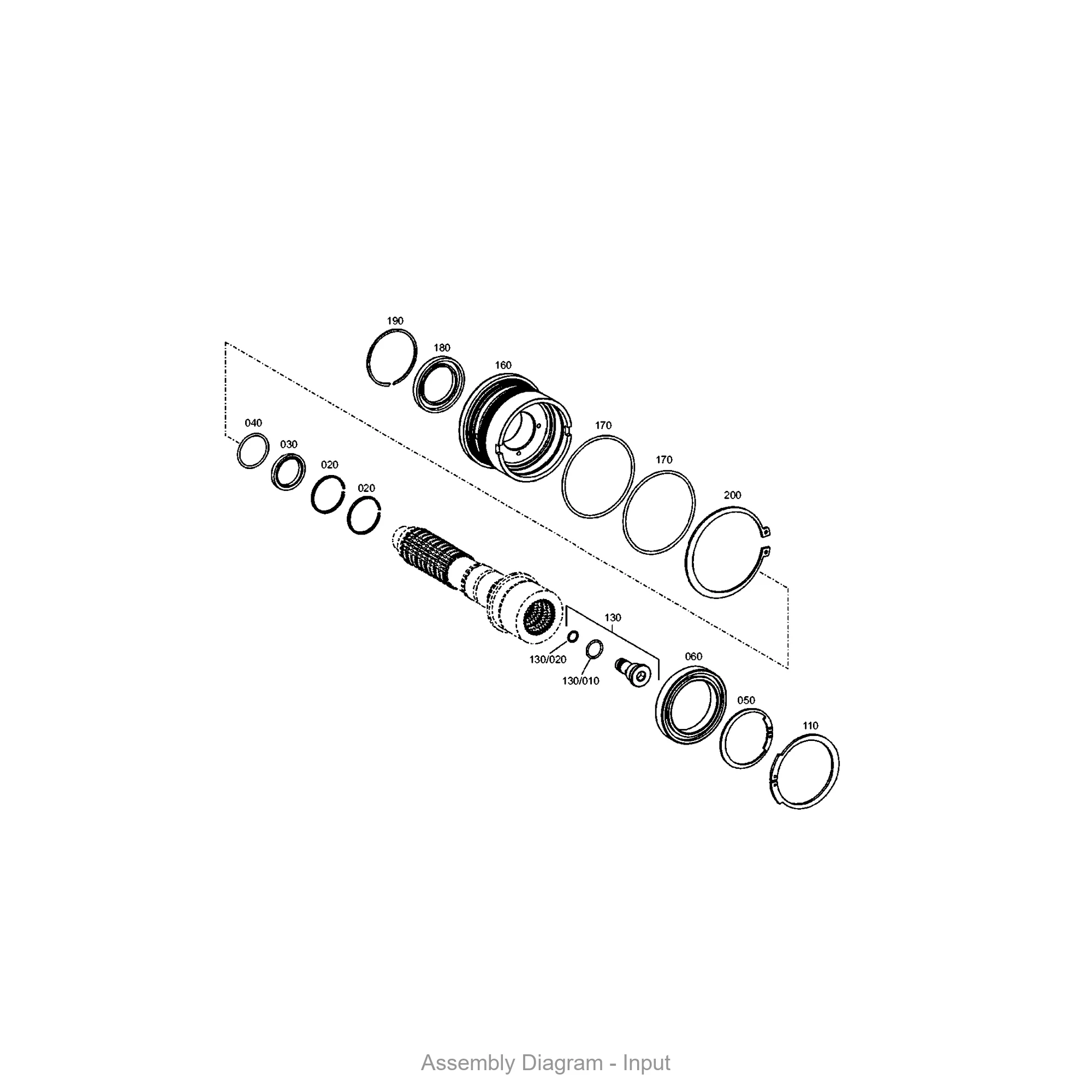

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.513.006 is located within the transmission assembly.
