ZF 0636.101.026 CAP SCREW
ZF Part Number: 0636.101.026 (also written as 0636101026 / 0636.101.026 / 0636 101 026)
Compatible ZF Transmission Models
This cap screw is used in the following ZF transmission models:
- ZF 4 WG 250(2)
- ZF 4 WG 260
- ZF 4 WG 308
- ZF 6 WG 200
- ZF 6 WG 200(555/3)
- ZF 6 WG 250
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Housing | 310 | 1 |
| Pump Drive | 680 | 1 |
| Pump Drive | 720 | 1 |
| Transmission Housing | 01.100 | 3 |
| Transmission Housing | 548 | 1 |
Related Parts in Same Assembly
- 5838.300.734 — REAR AXLE HOUS. (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 2093.309.087 — ADJUSTMENT PLATE (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
Frequently Asked Questions
What is ZF part number 0636.101.026?
ZF 0636.101.026 is an OEM cap screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 250(2), 4 WG 260, 4 WG 308, 6 WG 200, 6 WG 200(555/3). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0636.101.026?
This cap screw is found in 6 ZF transmission variants, including: 4 WG 250(2), 4 WG 260, 4 WG 308, 6 WG 200, 6 WG 200(555/3), 6 WG 250. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0636.101.026 installed in the transmission?
This cap screw is located in the housing, pump drive, transmission housing area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 310 in the Housing section.
How do I look up ZF part 0636.101.026?
This part can be found under several formats: 0636101026 / 0636.101.026 / 0636 101 026. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0636.101.026).
Where can I buy ZF 0636.101.026?
You can purchase genuine ZF 0636.101.026 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

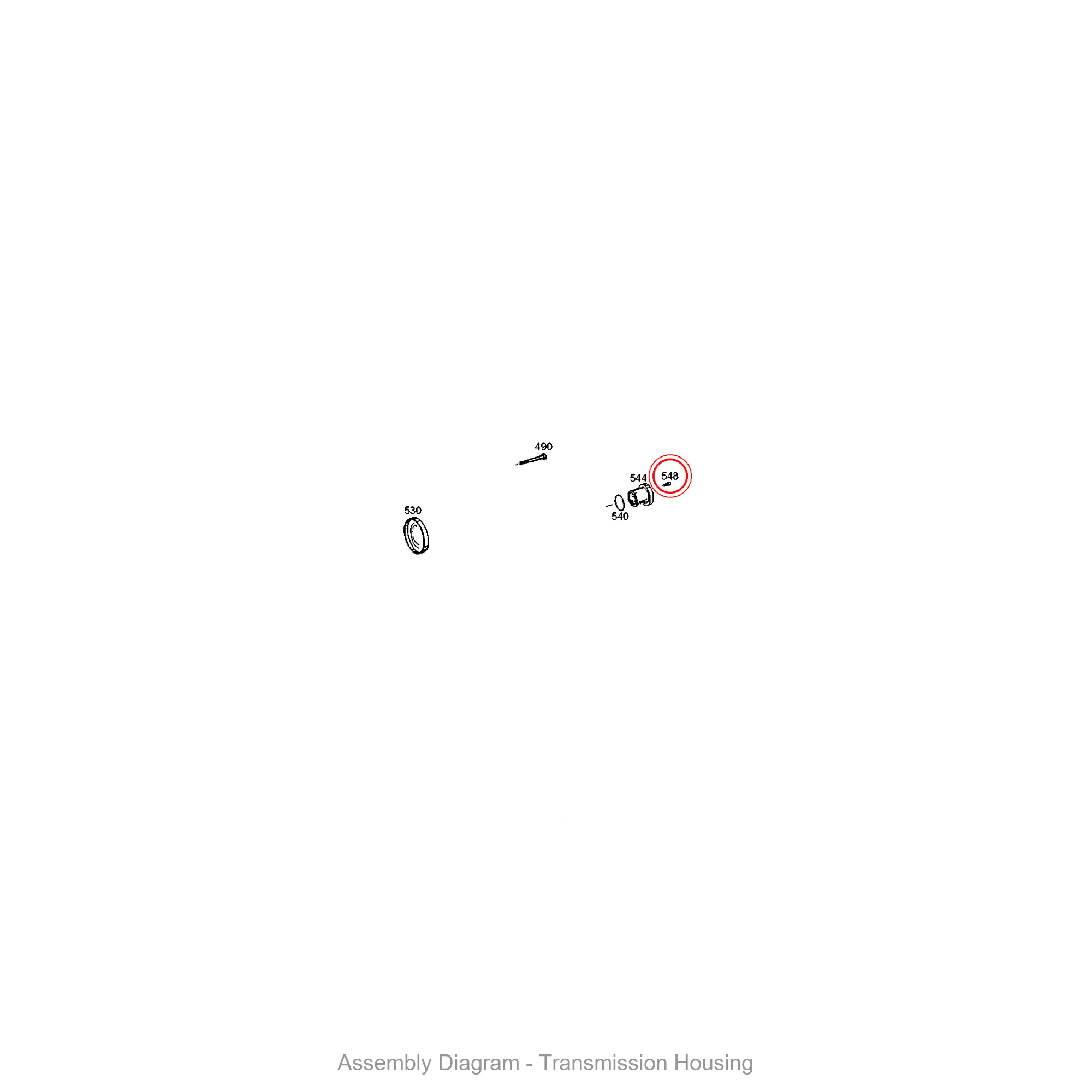

Exploded View / Assembly Diagram
The diagram below shows where ZF 0636.101.026 is located within the transmission assembly.
