ZF 0636.101.031 CAP SCREW
ZF Part Number: 0636.101.031 (also written as 0636101031 / 0636.101.031 / 0636 101 031)
OEM Cross Reference / Interchange Numbers
ZF 0636.101.031 (CAP SCREW) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运 | 860143881 | OEM Cross Ref |
| 山东临工 | 7200002242 | OEM Cross Ref |
| 柳工 | SP100110 | OEM Cross Ref |
| 柳工 | SP100110RE | OEM Cross Ref |
This ZF part (0636.101.031) directly replaces the following OEM numbers: 徐工铲运: 860143881; 山东临工: 7200002242; 柳工: SP100110, SP100110RE. All listed cross-reference numbers are confirmed compatible with ZF 0636.101.031.
Compatible ZF Transmission Models
This cap screw is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 180(555)
- ZF 4 WG 200
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 4 WG 208
- ZF 4 WG 208 B
- ZF 4 WG 250(2)
- ZF 4 WG 65
- ZF 4 WG 65 II(D)
…and 11 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Housing | 820 | 1 |
| Loose Parts | 070 | 2 |
| Loose Parts | 390 | 2 |
| Motor | 020 | 7 |
| Oil Pipe | 21.614 | 2 |
| Oil Pipe | 560 | 2 |
| Oil Pipe | 614 | 2 |
| Oil Supply | 110 | 2 |
| Oil Supply | 180 | 4 |
| Oil Supply | 234 | 3 |
| Oil Supply | 370 | 2 |
| Pump Drive | 220 | 4 |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0636.101.031?
ZF 0636.101.031 is an OEM cap screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 100(400), 4 WG 100(500), 4 WG 150, 4 WG 180. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0636.101.031?
This cap screw is found in 26 ZF transmission variants, including: 3 WG 200, 4 WG 100(400), 4 WG 100(500), 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 4 WG 200, 4 WG 200(555), 4 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0636.101.031 installed in the transmission?
This cap screw is located in the oil supply, pump drive area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 820 in the Housing section.
How do I look up ZF part 0636.101.031?
This part can be found under several formats: 0636101031 / 0636.101.031 / 0636 101 031. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0636.101.031).
Where can I buy ZF 0636.101.031?
You can purchase genuine ZF 0636.101.031 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

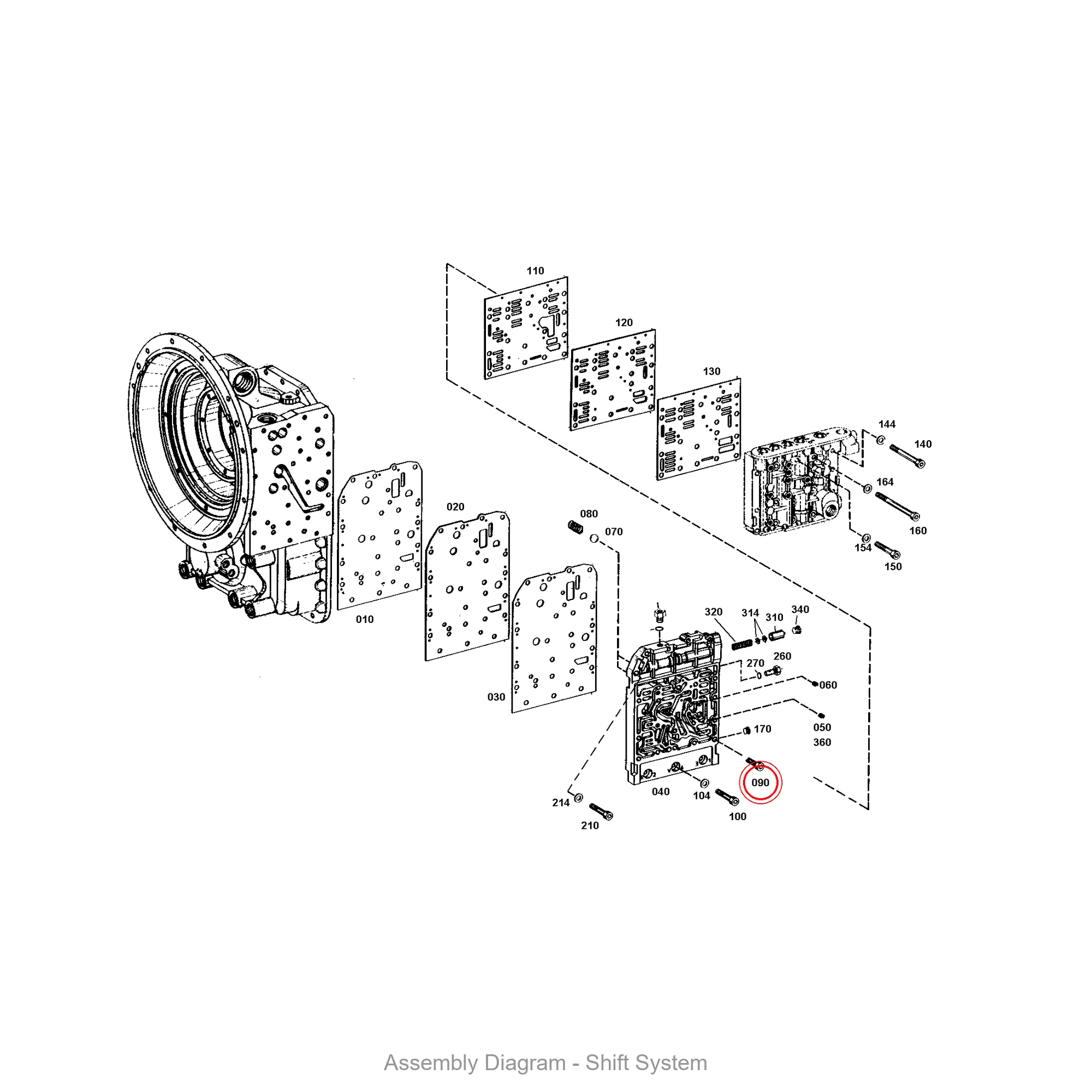

Exploded View / Assembly Diagram
The diagram below shows where ZF 0636.101.031 is located within the transmission assembly.
