ZF 0730.109.398 SHIM
ZF Part Number: 0730.109.398 (also written as 0730109398 / 0730.109.398 / 0730 109 398)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Splitter Box | 730/016 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 2093.005.092 | SPLITTER BOX | — |
| 2093.005.094 | SPLITTER BOX | — |
| 2093.005.130 | SPLITTER BOX | — |
| 2093.005.131 | SPLITTER BOX | — |
| 2093.005.132 | SPLITTER BOX | — |
| 2093.005.133 | SPLITTER BOX | — |
| 2093.005.134 | SPLITTER BOX | — |
| 2093.005.135 | SPLITTER BOX | — |
| 2093.005.136 | SPLITTER BOX | — |
| 2093.005.138 | SPLITTER BOX | — |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0730.109.398?
ZF 0730.109.398 is an OEM shim produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 0730.109.398 installed in the transmission?
This shim is located in the splitter box area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 730/016 in the Splitter Box section.
How do I look up ZF part 0730.109.398?
This part can be found under several formats: 0730109398 / 0730.109.398 / 0730 109 398. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0730.109.398).
Where can I buy ZF 0730.109.398?
You can purchase genuine ZF 0730.109.398 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

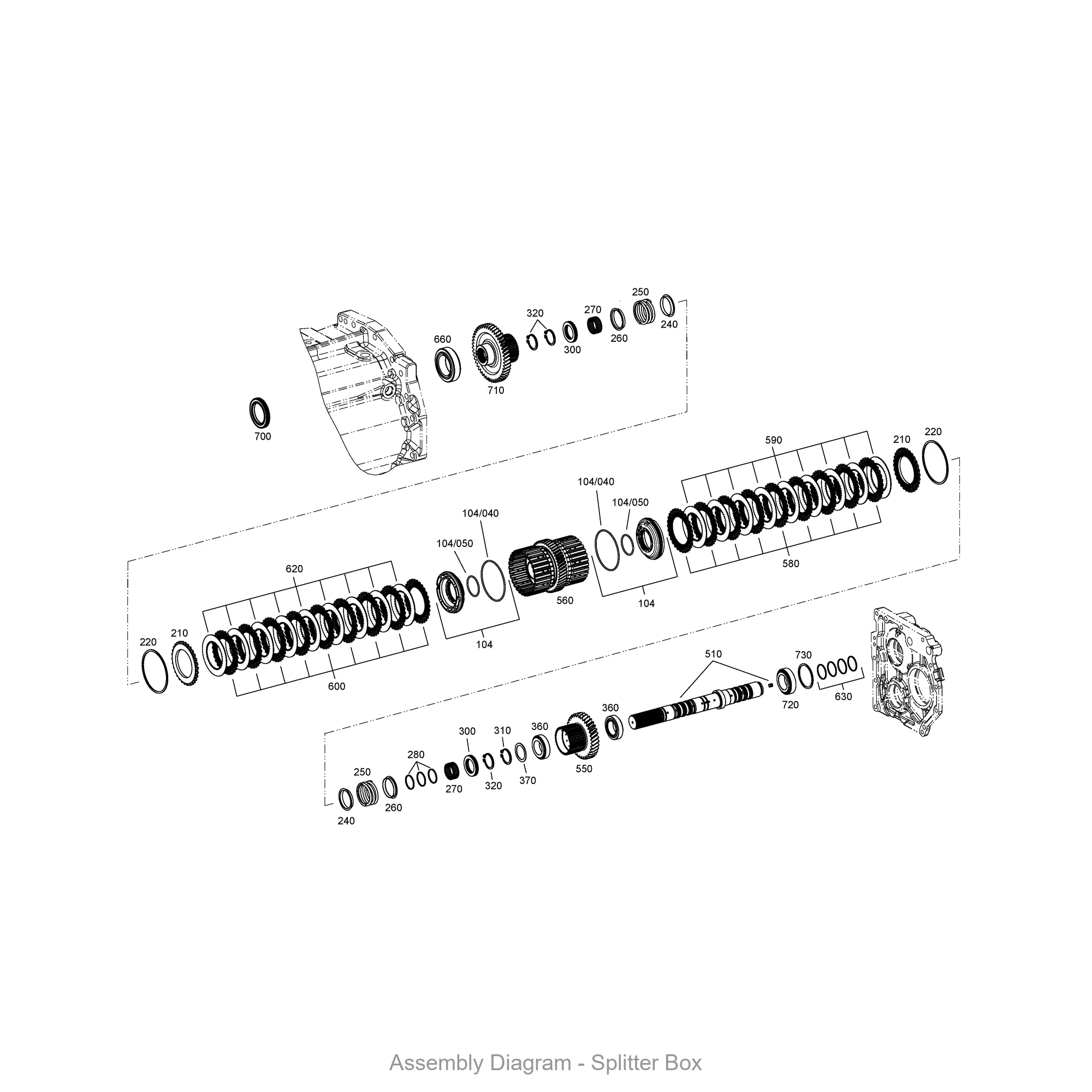

Exploded View / Assembly Diagram
The diagram below shows where ZF 0730.109.398 is located within the transmission assembly.
