ZF 4139.320.009 SPRING SEAT
ZF Part Number: 4139.320.009 (also written as 4139320009 / 4139.320.009 / 4139 320 009)
Compatible ZF Transmission Models
This spring seat is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 4 WG 65
- ZF 6 WG 200(555/5)
- ZF 6 WG 260
- ZF 6 WG 260(4)
- ZF 6 WG 310
- ZF 6 WG 65
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Pressure Regulator | 280 | 3 |
| Retarder | 200 | 3 |
| Retarder | 62.200 | 3 |
Related Parts in Same Assembly
- 4616.101.111 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.405 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.048 — INPUT (Qty: 1)
- 4616.102.420 — INPUT (Qty: 1)
- 4616.103.048 — OUTPUT (Qty: 1)
- 4616.105.047 — OUTPUT (Qty: 1)
- 4616.106.016 — SHIFT SYSTEM (Qty: 1)
- 4616.159.022 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 4139.320.009?
ZF 4139.320.009 is an OEM spring seat produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 3 WG 310, 4 WG 65, 6 WG 200(555/5), 6 WG 260. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4139.320.009?
This spring seat is found in 8 ZF transmission variants, including: 3 WG 260, 3 WG 310, 4 WG 65, 6 WG 200(555/5), 6 WG 260, 6 WG 260(4), 6 WG 310, 6 WG 65. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4139.320.009 installed in the transmission?
This spring seat is located in the retarder area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 280 in the Pressure Regulator section.
How do I look up ZF part 4139.320.009?
This part can be found under several formats: 4139320009 / 4139.320.009 / 4139 320 009. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4139.320.009).
Where can I buy ZF 4139.320.009?
You can purchase genuine ZF 4139.320.009 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

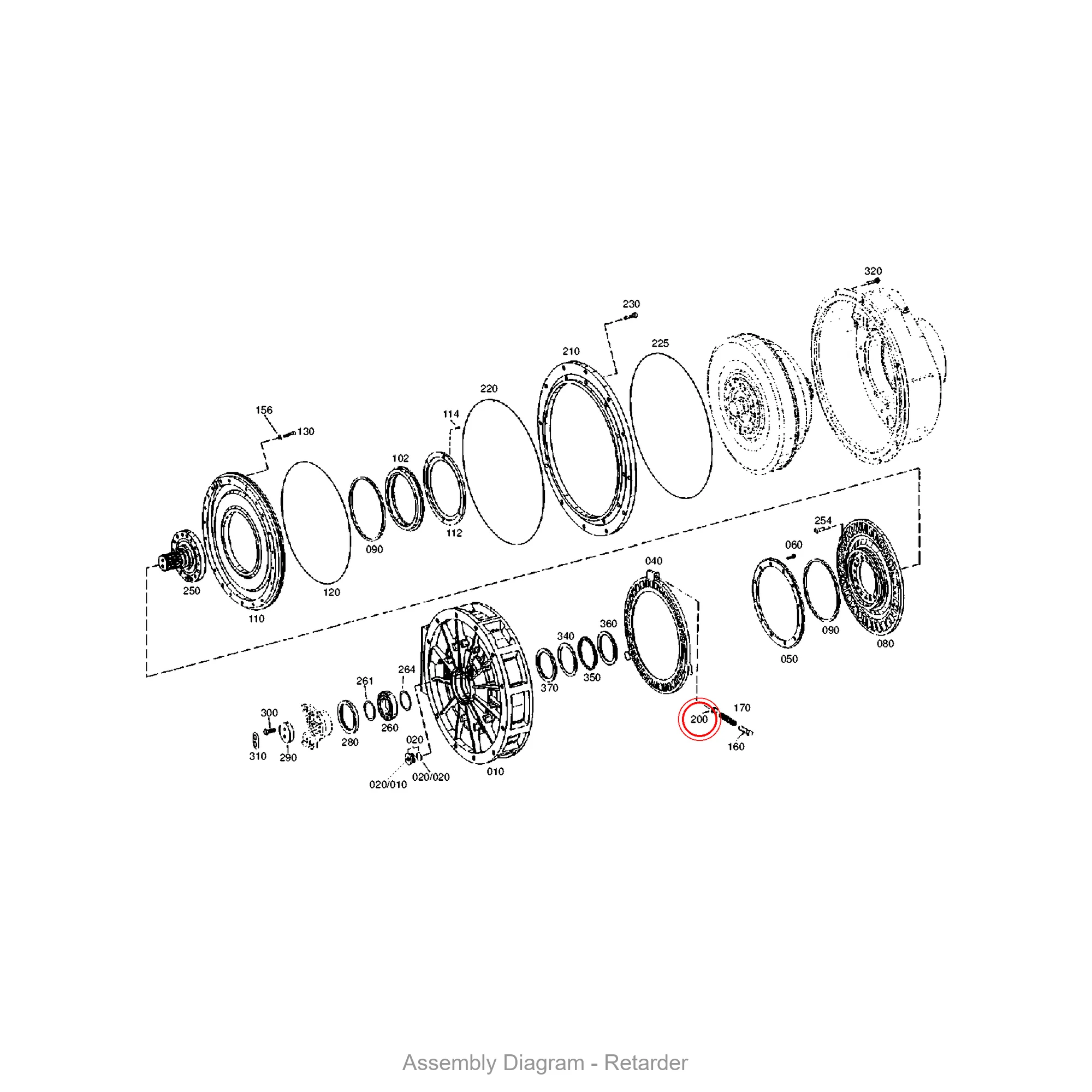

Exploded View / Assembly Diagram
The diagram below shows where ZF 4139.320.009 is located within the transmission assembly.
