ZF 4166.336.286 PLATE PISTON
ZF Part Number: 4166.336.286 (also written as 4166336286 / 4166.336.286 / 4166 336 286)
Compatible ZF Transmission Models
This plate piston is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 200(555/5)
- ZF 6 WG 200
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 090 | 1 |
| Converter | 32.090 | 1 |
Related Parts in Same Assembly
- 0501.317.159 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4644.221.200 — SUCTION TUBE (Qty: 1)
- 4644.301.346 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.245 — INPUT SHAFT (Qty: 1)
- 4644.303.566 — OUTPUT SHAFT (Qty: 1)
- 4644.305.023 — HOUSING (Qty: 2)
Frequently Asked Questions
What is ZF part number 4166.336.286?
ZF 4166.336.286 is an OEM plate piston produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 200(555/5), 6 WG 200, 6 WG 200(500), 6 WG 200(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4166.336.286?
This plate piston is found in 7 ZF transmission variants, including: 3 WG 200, 4 WG 200(555/5), 6 WG 200, 6 WG 200(500), 6 WG 200(555), 6 WG 200(555/4), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4166.336.286 installed in the transmission?
This plate piston is located in the converter area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 090 in the Converter section.
How do I look up ZF part 4166.336.286?
This part can be found under several formats: 4166336286 / 4166.336.286 / 4166 336 286. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4166.336.286).
Where can I buy ZF 4166.336.286?
You can purchase genuine ZF 4166.336.286 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.
Exploded View / Assembly Diagram

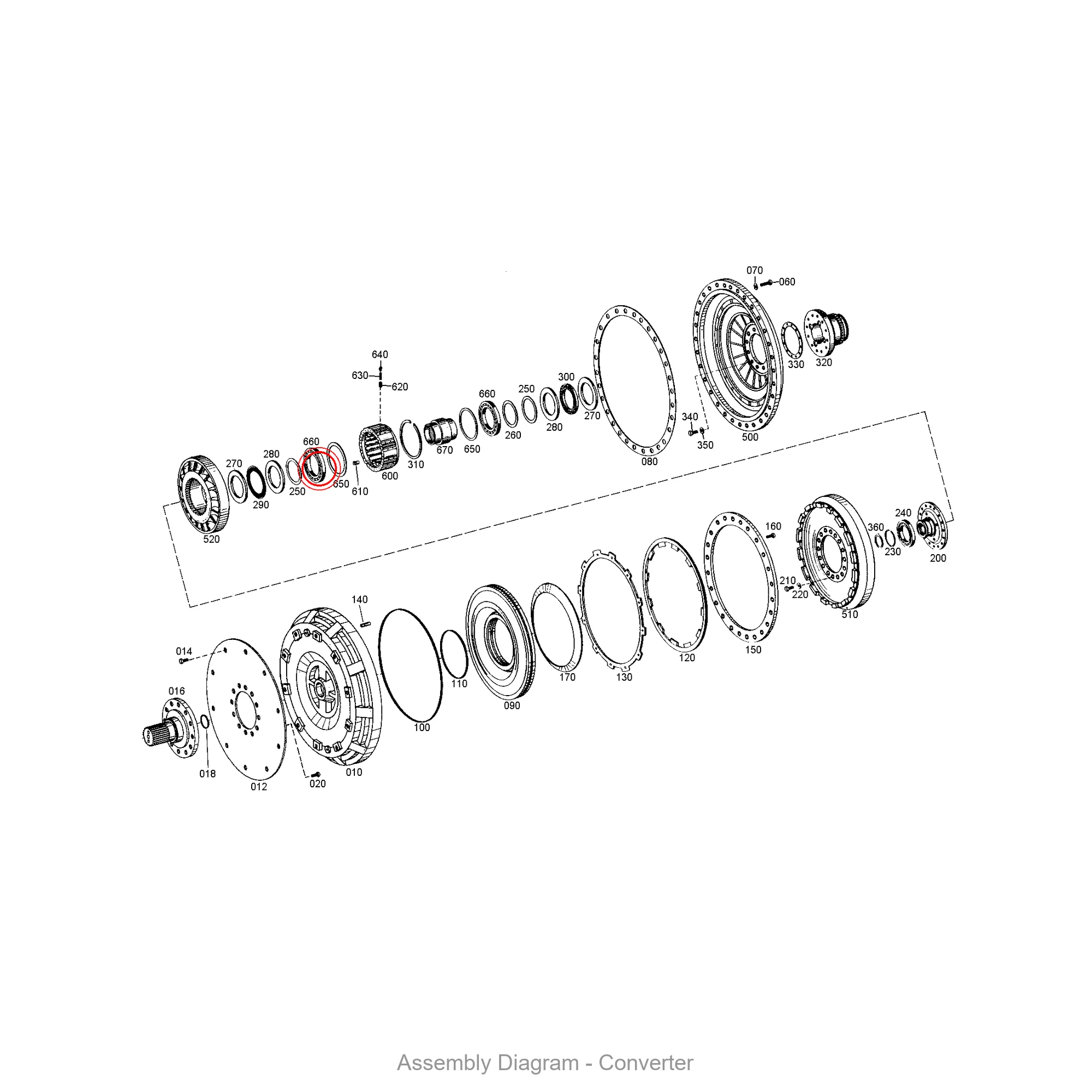

The diagram below shows where ZF 4166.336.286 is located within the transmission assembly.
