ZF 4644.302.250 OIL FEED FLANGE
ZF Part Number: 4644.302.250 (also written as 4644302250 / 4644.302.250 / 4644 302 250)
OEM Cross Reference / Interchange Numbers
ZF 4644.302.250 (OIL FEED FLANGE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工筑路 | 800352289 | OEM Cross Ref |
| 徐工铲运RZ | 860325020 | OEM Cross Ref |
| 徐工铲运RZ | 860325040 | OEM Cross Ref |
| 徐工铲运 | 860116380 | OEM Cross Ref |
| 徐工铲运 | 860106884 | OEM Cross Ref |
| 山东临工 | 7200001479 | OEM Cross Ref |
| 柳工 | SP100431 | OEM Cross Ref |
| 柳工 | SP100431RE | OEM Cross Ref |
This ZF part (4644.302.250) directly replaces the following OEM numbers: 徐工筑路: 800352289; 徐工铲运RZ: 860325020, 860325040; 徐工铲运: 860116380, 860106884. All listed cross-reference numbers are confirmed compatible with ZF 4644.302.250.
Compatible ZF Transmission Models
This oil feed flange is used in the following ZF transmission models:
- ZF 4 WG 158
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 180(555)
- ZF 6 WG 158
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Input | 080 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4044.319.023 — DRIVER (Qty: 1)
- 4168.030.107 — CONVERTER (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.301.301 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.302.250?
ZF 4644.302.250 is an OEM oil feed flange produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 158, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 6 WG 158. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.302.250?
This oil feed flange is found in 5 ZF transmission variants, including: 4 WG 158, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 6 WG 158. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.302.250 installed in the transmission?
This oil feed flange is located in the input area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 080 in the Input section.
How do I look up ZF part 4644.302.250?
This part can be found under several formats: 4644302250 / 4644.302.250 / 4644 302 250. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.302.250).
Where can I buy ZF 4644.302.250?
You can purchase genuine ZF 4644.302.250 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

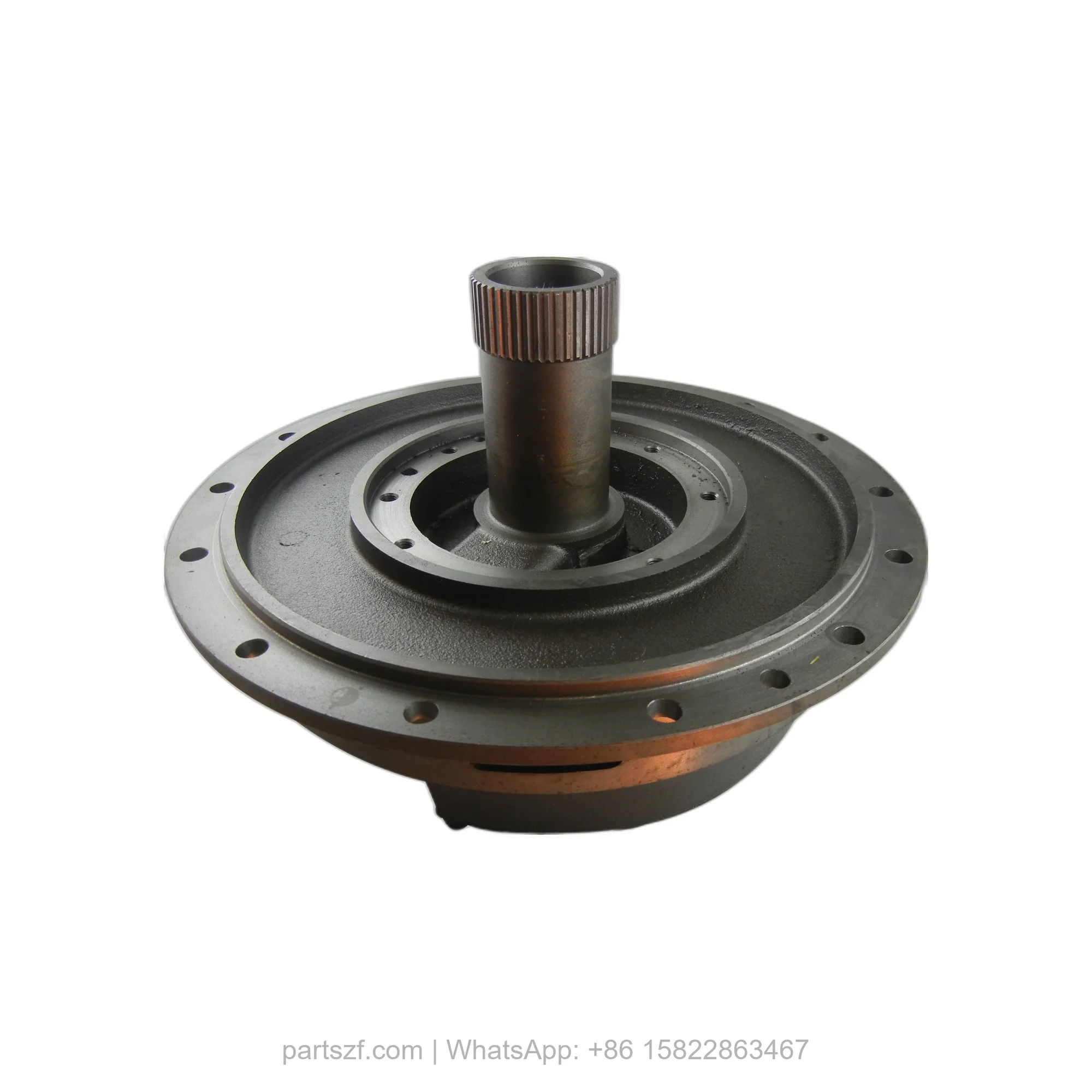

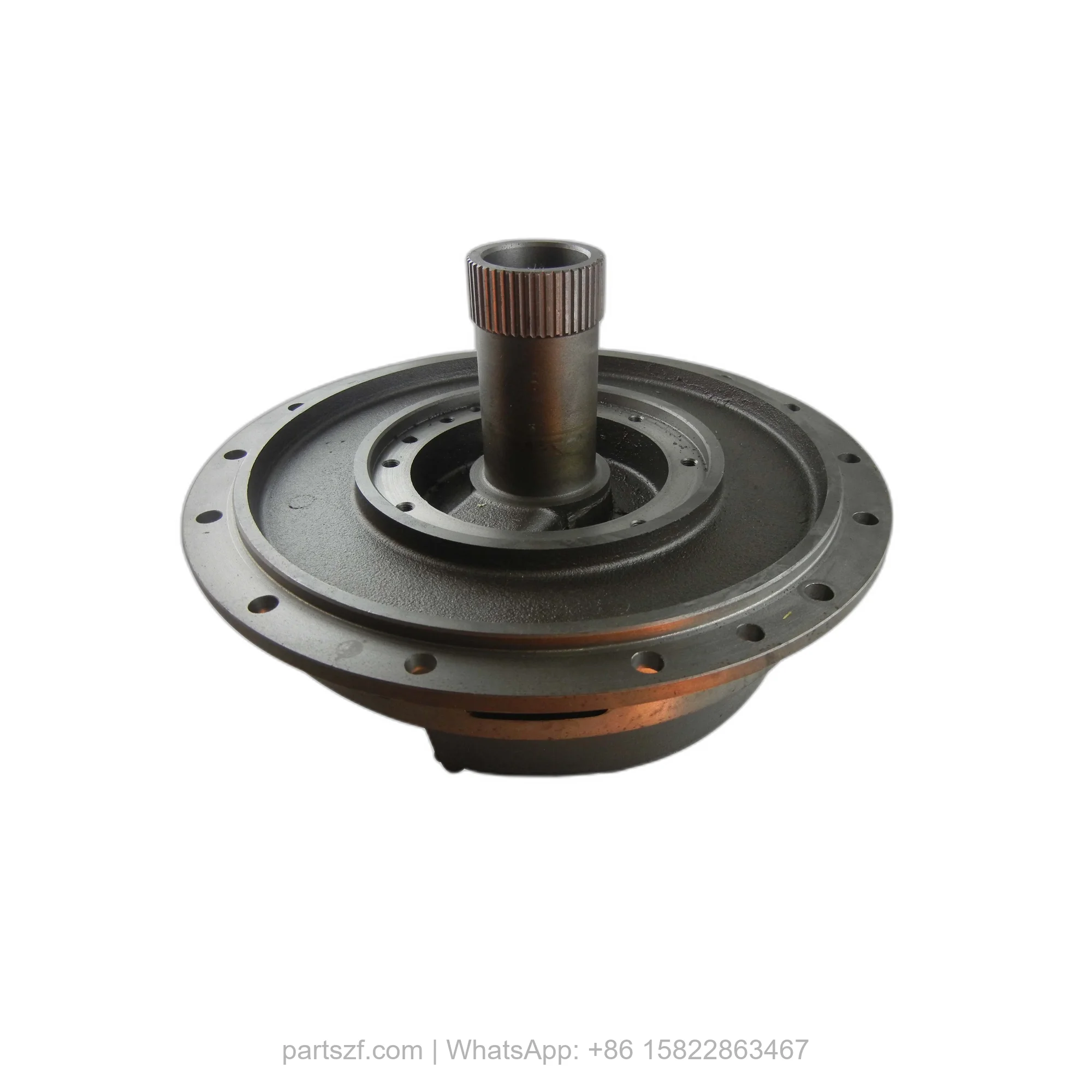

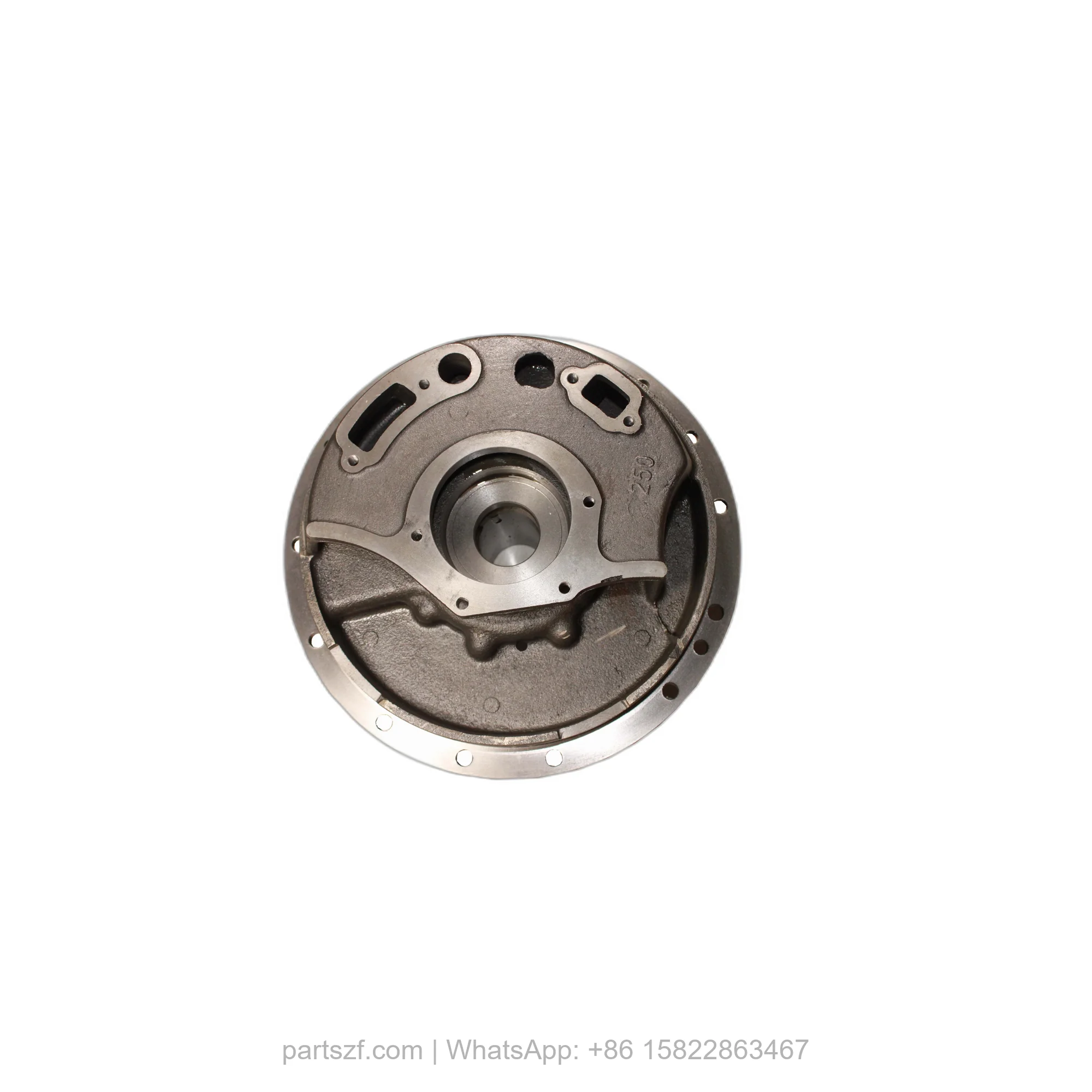

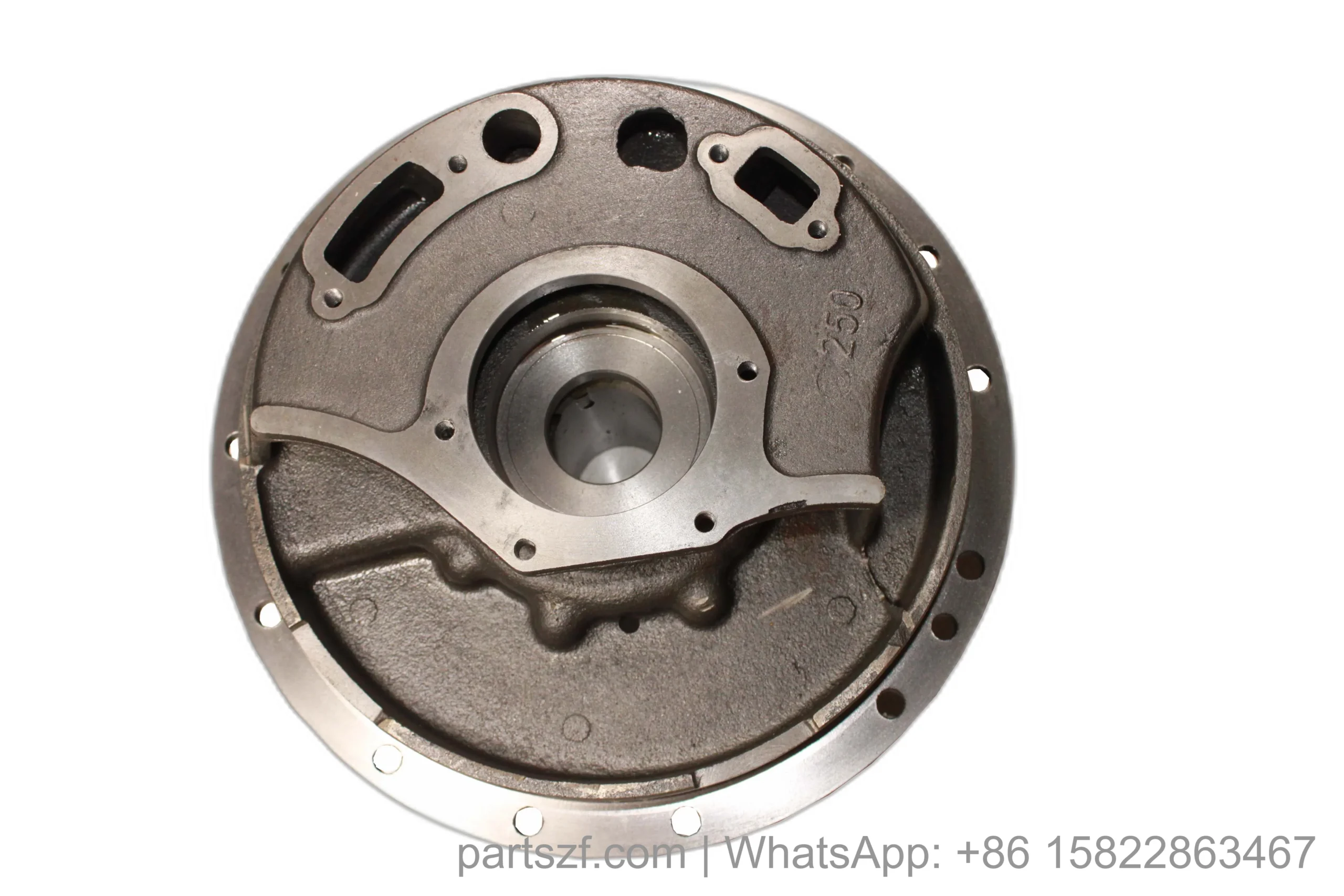

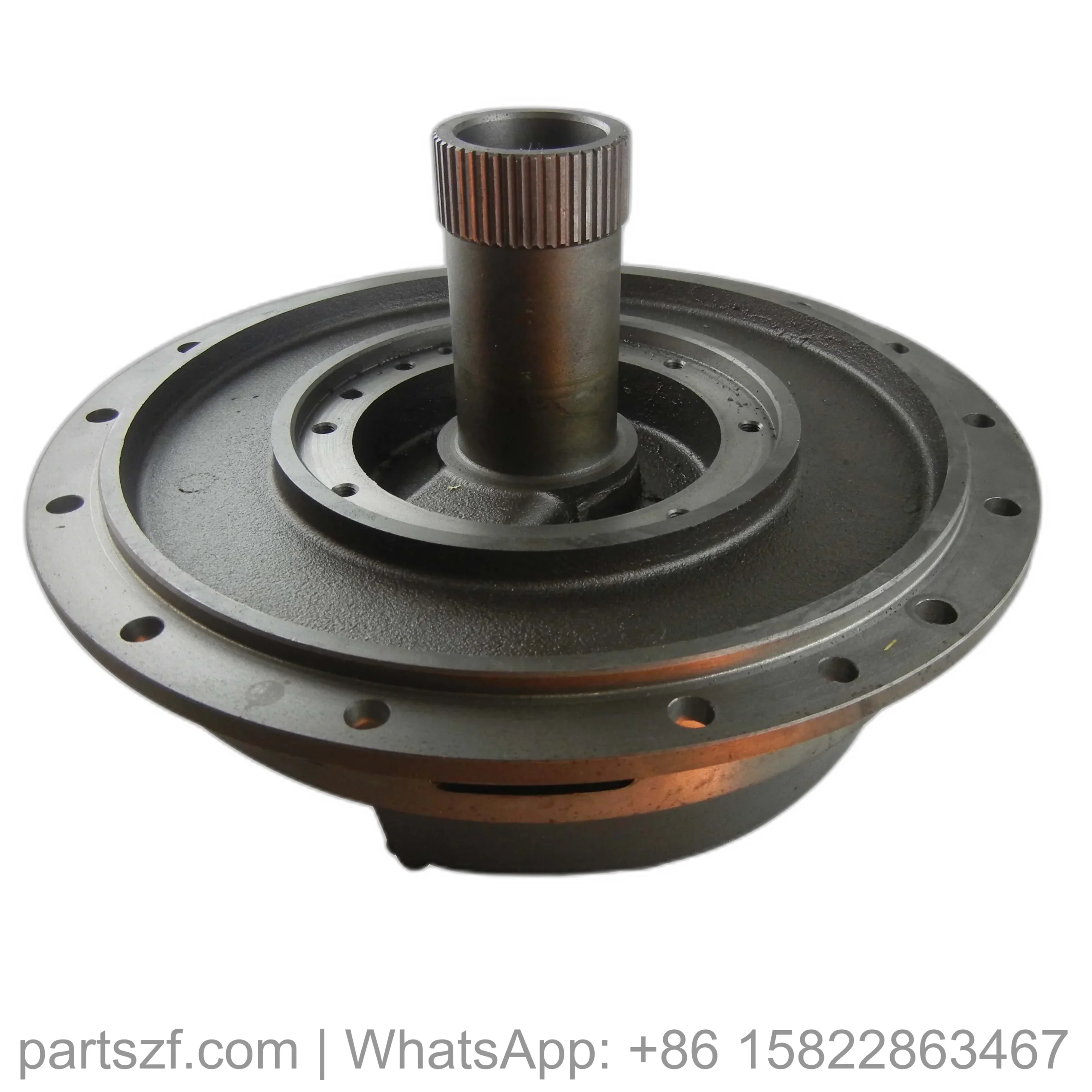

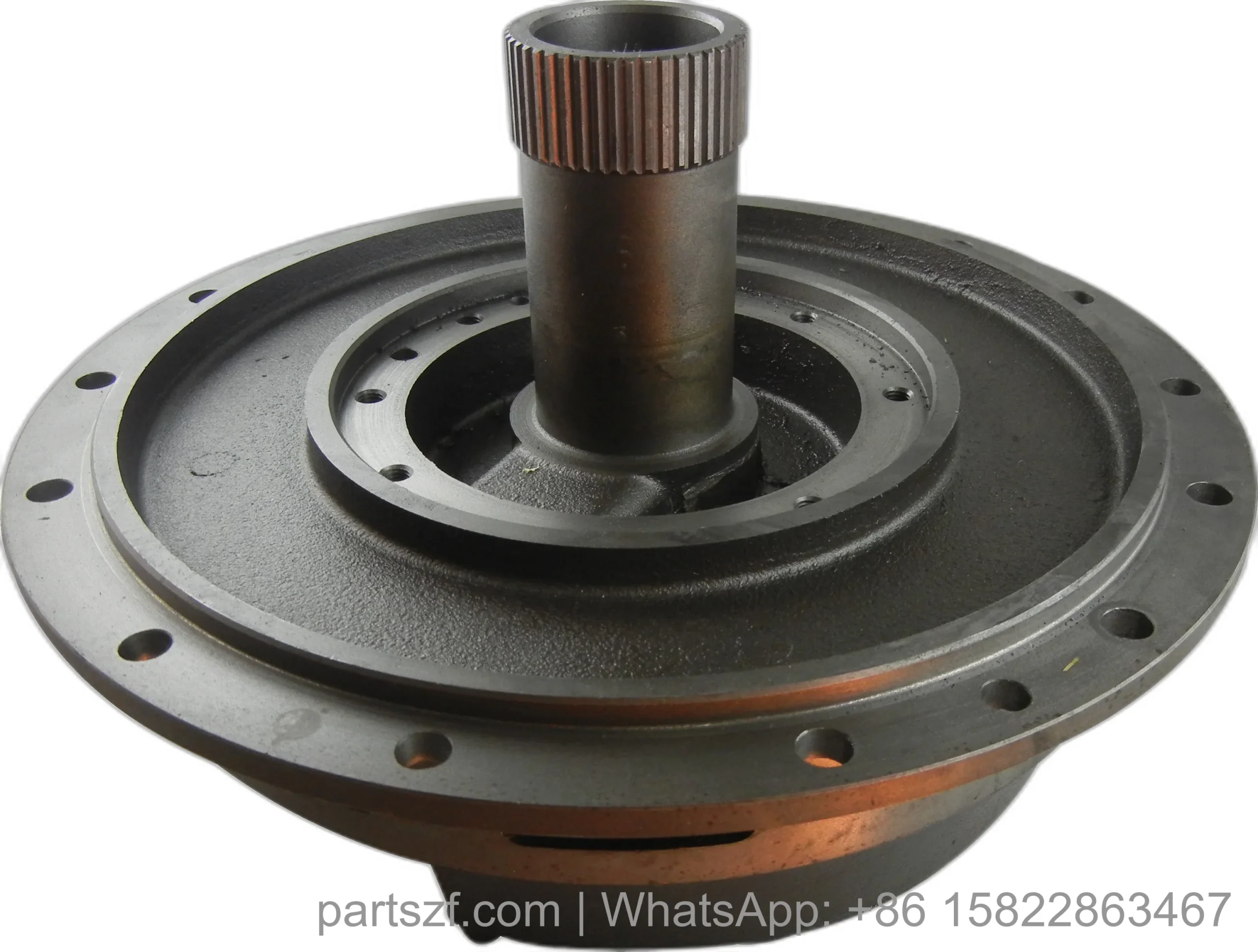

Product Photos

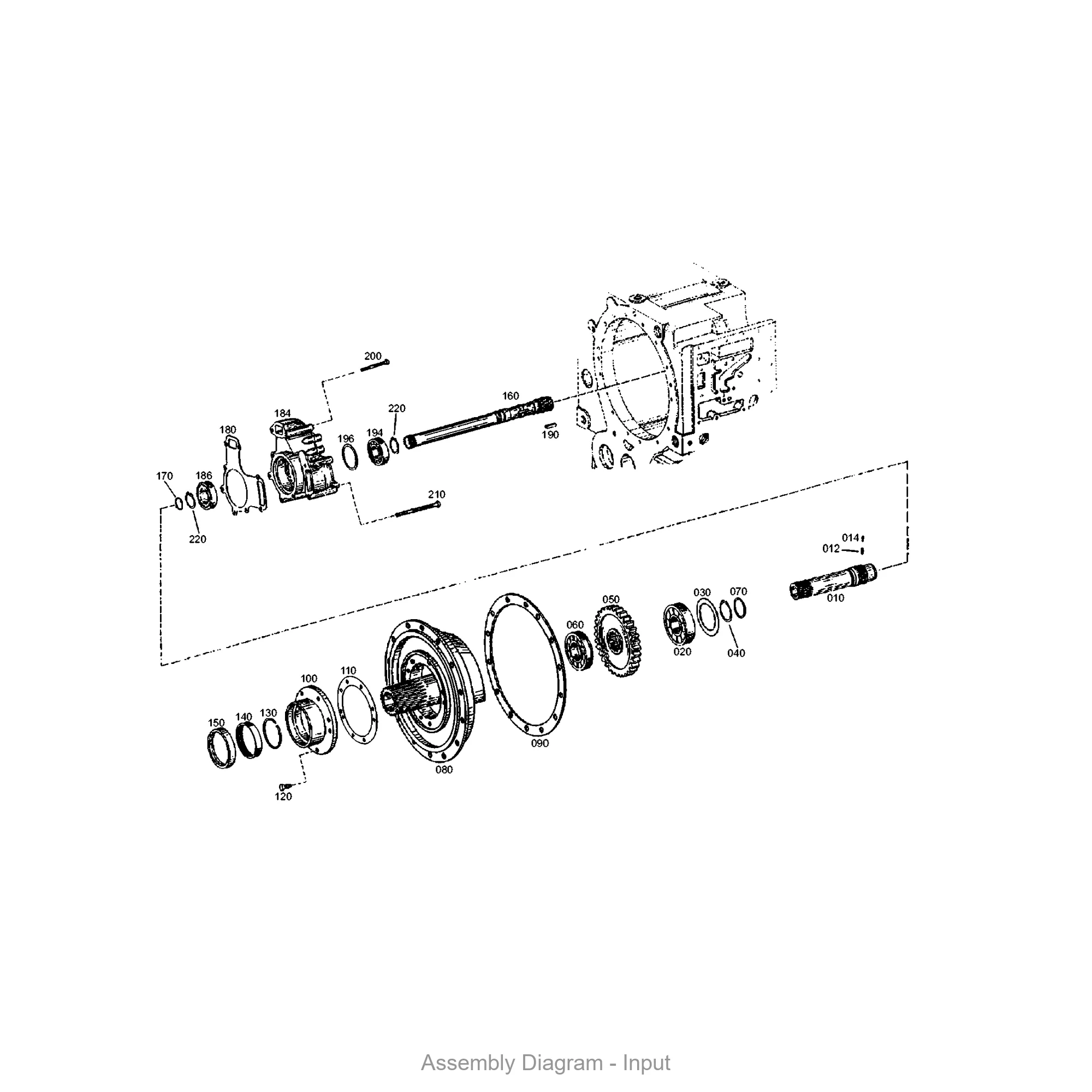

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.302.250 is located within the transmission assembly.
ZF 4644.302.250 Part Context
ZF 4644.302.250 is listed in the local BOM as OIL FEED FLANGE. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
4 WG 158, 4 WG 180, 4 WG 180(500), 4 WG 180(555), 6 WG 158
Cross Reference
800352289, 860325020, 860325040, 860116380, 860106884, 7200001479, SP100431, SP100431RE
Replacement Scenario
Use this oil feed flange listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 4644.302.250 |
|---|---|
| Name | OIL FEED FLANGE |
| Sections | INPUT |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
Fact sources: zf_bom.db:parts_master, zf_bom.db:illustration_items, zf_bom.db:assembly_model_map, zf_bom.db:part_cross_references, zf_bom.db:media_library, data/online_product_map_cache.json
