ZF 4644.306.234 STOP PLATE
ZF Part Number: 4644.306.234 (also written as 4644306234 / 4644.306.234 / 4644 306 234)
Compatible ZF Transmission Models
This stop plate is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 4 WG 200(555/3)
- ZF 4 WG 200(555/5)
- ZF 6 WG 100(500)
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/3)
- ZF 6 WG 201
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Hydr.Control | 150 | 1 |
| Shift System | 130 | 1 |
| Shift System | 180 | 1 |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 4644.306.234?
ZF 4644.306.234 is an OEM stop plate produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 100(400), 4 WG 100(500), 4 WG 150, 4 WG 180. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.306.234?
This stop plate is found in 14 ZF transmission variants, including: 3 WG 200, 4 WG 100(400), 4 WG 100(500), 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555/3), 4 WG 200(555/5), 6 WG 100(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.306.234 installed in the transmission?
This stop plate is located in the hydr.control area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 150 in the Hydr.Control section.
How do I look up ZF part 4644.306.234?
This part can be found under several formats: 4644306234 / 4644.306.234 / 4644 306 234. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.306.234).
Where can I buy ZF 4644.306.234?
You can purchase genuine ZF 4644.306.234 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

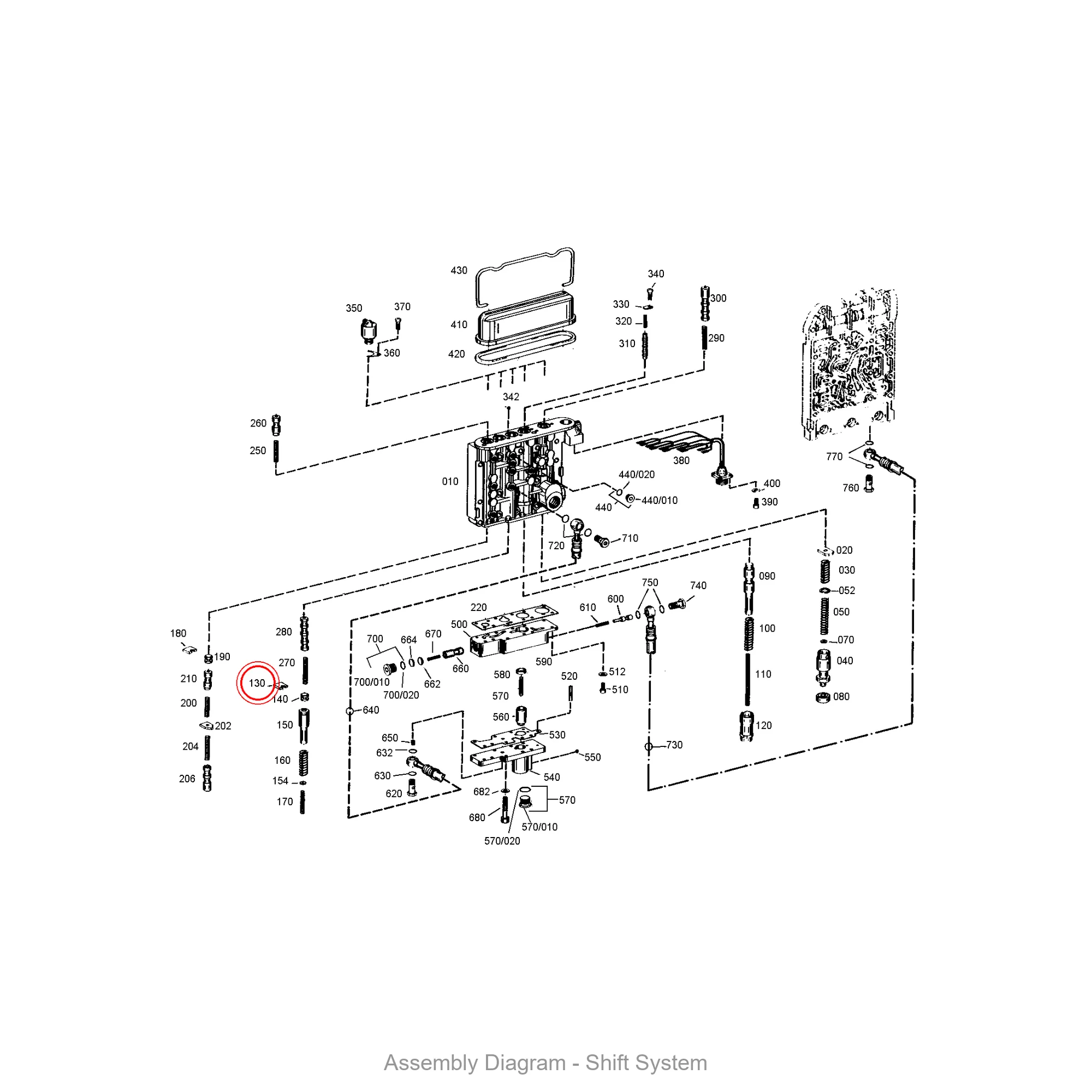

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.306.234 is located within the transmission assembly.
