ZF 4644.309.008 FIXING PLATE
ZF Part Number: 4644.309.008 (also written as 4644309008 / 4644.309.008 / 4644 309 008)
OEM Cross Reference / Interchange Numbers
ZF 4644.309.008 (FIXING PLATE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 7200002203 | OEM Cross Ref |
| 柳工 | SP100471 | OEM Cross Ref |
| 柳工 | SP100471RE | OEM Cross Ref |
This ZF part (4644.309.008) directly replaces the following OEM numbers: 山东临工: 7200002203; 柳工: SP100471, SP100471RE. All listed cross-reference numbers are confirmed compatible with ZF 4644.309.008.
Compatible ZF Transmission Models
This fixing plate is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 158
- ZF 4 WG 180(555)
- ZF 4 WG 200
- ZF 4 WG 200(555/5)
- ZF 4 WG 208
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Parking Brake | 160 | 1 |
Related Parts in Same Assembly
- 0501.008.070 — BRAKE (Qty: 1)
- 0501.224.618 — BRAKE BLOCK (Qty: 2)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 2)
- 4168.030.105 — CONVERTER (Qty: 1)
- 4644.221.196 — SUCTION TUBE (Qty: 1)
- 4644.231.179 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.402 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.309.008?
ZF 4644.309.008 is an OEM fixing plate produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 158, 4 WG 180(555), 4 WG 200, 4 WG 200(555/5). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.309.008?
This fixing plate is found in 6 ZF transmission variants, including: 3 WG 200, 4 WG 158, 4 WG 180(555), 4 WG 200, 4 WG 200(555/5), 4 WG 208. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.309.008 installed in the transmission?
This fixing plate is located in the parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 160 in the Parking Brake section.
How do I look up ZF part 4644.309.008?
This part can be found under several formats: 4644309008 / 4644.309.008 / 4644 309 008. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.309.008).
Where can I buy ZF 4644.309.008?
You can purchase genuine ZF 4644.309.008 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

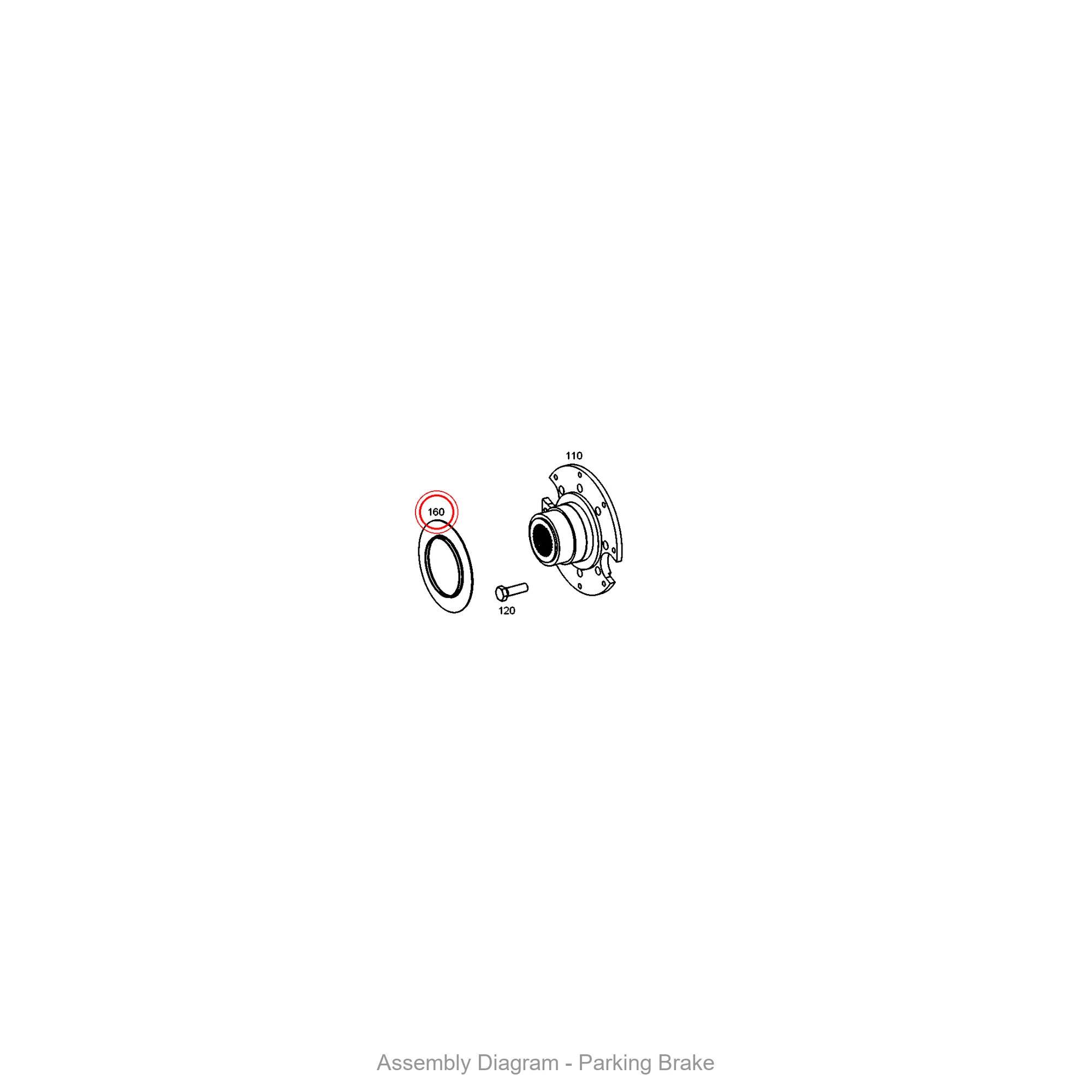

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.309.008 is located within the transmission assembly.
