ZF 4699.100.020 BASIC PARTS
ZF Part Number: 4699.100.020 (also written as 4699100020 / 4699.100.020 / 4699 100 020)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Gp21 | 010 | 1 |
| Viewer Gp21 Table 0 | 010 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 4699.023.002 | BASIC PARTS | — |
| 4699.023.002 | Viewer_GP21_table_0 | — |
| 4699.823.002 | BASIC PARTS | — |
| 4699.823.002 | GP21 | — |
| 4699.823.046 | BASIC PARTS | — |
| 4699.823.046 | GP21 | — |
| 4699.823.047 | BASIC PARTS | — |
| 4699.823.047 | GP21 | — |
| 4699.823.071 | BASIC PARTS | — |
| 4699.823.071 | GP21 | — |
Related Parts in Same Assembly
- 4699.300.136 — HOUSING (Qty: 1)
- 4699.302.037 — DRIVE PINION (Qty: 1)
- 4699.309.058 — HOUSING COVER (Qty: 1)
- 4699.109.015 — BRAKE PARTS (Qty: 1)
- 4699.203.063 — BRAKE LEVER (Qty: 1)
- 4699.300.155 — WHEEL SHAFT (Qty: 1)
- 4699.302.038 — SPUR GEAR (Qty: 1)
- 0501.340.273 — OUTER CLUTCH DISK (Qty: 4)
Frequently Asked Questions
What is ZF part number 4699.100.020?
ZF 4699.100.020 is an OEM basic parts produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 4699.100.020 installed in the transmission?
This basic parts is located in the basic parts, gp21, viewer_gp21_table_0 area of the transmission. It appears in 10 different assembly configurations. In the service manual, look for position number 010 in the Gp21 section.
How do I look up ZF part 4699.100.020?
This part can be found under several formats: 4699100020 / 4699.100.020 / 4699 100 020. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4699.100.020).
Where can I buy ZF 4699.100.020?
You can purchase genuine ZF 4699.100.020 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

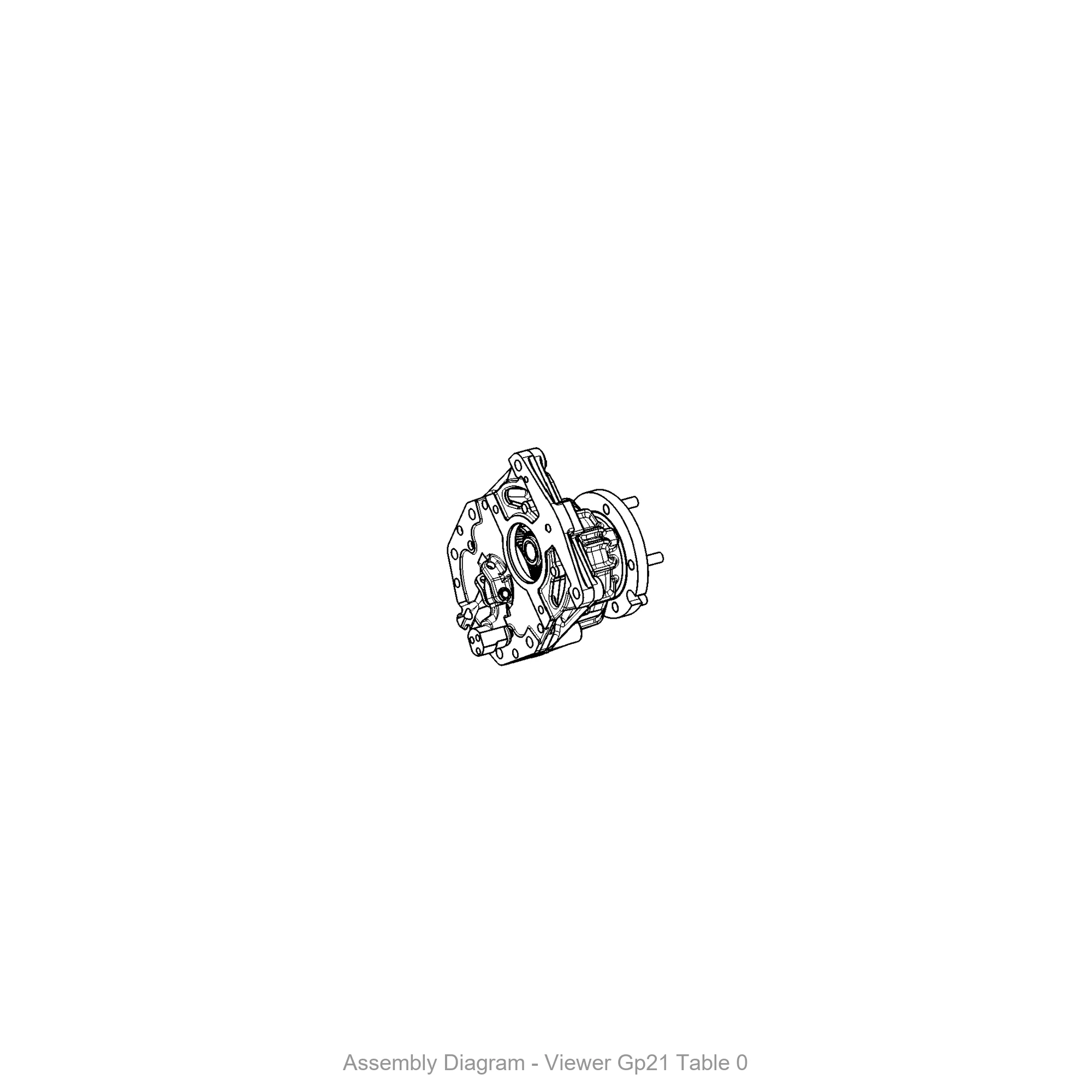

Exploded View / Assembly Diagram
The diagram below shows where ZF 4699.100.020 is located within the transmission assembly.
