What you need to know: A rattling sound in your ZF 6WG210 transmission often indicates worn bearings, gears, or low oil levels. Inspect the transmission for leaks and damage. Replace worn parts using genuine ZF replacement part when necessary. For reliable ZF parts, contact XiaoHang Machinery or visit partszf.com.
* **What’s causing the rattle?** Common causes include worn bearings, damaged gears, insufficient lubrication, or loose components within the transmission.
* **Is it safe to operate?** Continuing to operate with a rattling transmission can lead to further damage and potential failure. Stop operation and investigate.
* **Can I fix it myself?** Depending on your mechanical expertise, some repairs are possible. However, complex issues may require a qualified technician.
* **What ZF transmission models does this apply to?** While this guide focuses on the 6WG210, the principles apply to other ZF powershift transmissions.
* **Where can I get parts?** You can source genuine ZF parts from reputable suppliers like Tianjin XiaoHang Construction Machinery Co., Ltd.
* **Is it safe to operate?** Continuing to operate with a rattling transmission can lead to further damage and potential failure. Stop operation and investigate.
* **Can I fix it myself?** Depending on your mechanical expertise, some repairs are possible. However, complex issues may require a qualified technician.
* **What ZF transmission models does this apply to?** While this guide focuses on the 6WG210, the principles apply to other ZF powershift transmissions.
* **Where can I get parts?** You can source genuine ZF parts from reputable suppliers like Tianjin XiaoHang Construction Machinery Co., Ltd.
Engineering Details
The ZF 6WG210 transmission is a complex piece of machinery. Rattling sounds usually indicate mechanical distress within the unit. This distress creates vibration, which you hear as a rattle. Here’s a breakdown of potential causes and their diagnostic characteristics:
| Possible Cause | Symptoms | Diagnostic Steps |
|---|---|---|
| Worn Bearings | Rattling or whining noise, increases with RPM. May be louder under load. | Listen with a stethoscope. Check oil for metallic particles. Inspect bearings for play and damage during disassembly. |
| Damaged Gears | Grinding, clicking, or rattling, often gear-specific. | Drain oil and inspect for metal shavings. Visually inspect gears for chipped or broken teeth during disassembly. |
| Low Oil Level | Generalized rattling or knocking sound, especially during maneuvers. | Check oil level using dipstick or sight glass. Inspect for leaks. The ZF 6WG210 transmission has specific fill level requirements. |
| Loose Components | Intermittent rattling, may change with vibration or load. | Visually inspect external components. Check mounting bolts and hardware. |
| Damaged Clutch Packs | Rattling sound accompanied by slipping or erratic shifting. | Perform pressure tests. Inspect clutch packs for wear and damage during disassembly. |
| Torque Converter Issues | Rattling, buzzing, or humming noise, most noticeable at low speeds. | Stall test the torque converter. Inspect for damage during disassembly. |
STEP-BY-STEP: Diagnosing and Fixing a Rattling ZF 6WG210 Transmission
- Safety First: Park the machine on a level surface, engage the parking brake, and chock the wheels. Allow the transmission to cool down.
- Initial Inspection: Visually inspect the transmission for any external damage, leaks, or loose components.
- Check Oil Level and Condition: Use the dipstick or sight glass to verify the oil level. Examine the oil for metal particles or a burnt smell. Low oil and/or contaminated oil are major red flags.
- Listen Carefully: Start the engine and listen to the transmission. Try to pinpoint the location and type of noise. Does it change with RPM or gear selection?
- Oil Analysis: If possible, send an oil sample to a lab for analysis. This can identify specific wear metals and indicate the source of the problem.
- Pressure Testing: Perform hydraulic pressure tests according to the ZF service manual. Abnormal pressures can indicate problems with pumps, valves, or seals.
- Transmission Removal (If Necessary): If the problem cannot be diagnosed externally, remove the transmission from the machine. Consult the service manual for proper procedures.
- Disassembly and Inspection: Disassemble the transmission carefully, following the service manual. Inspect all components for wear, damage, or breakage. Pay close attention to bearings, gears, shafts, and clutch packs.
- Component Replacement: Replace any worn or damaged components with genuine ZF replacement part. This includes bearings, gears, seals, and clutch plates.
- Cleaning and Reassembly: Clean all parts thoroughly before reassembling the transmission. Use new gaskets and seals. Follow the service manual for proper torque specifications and procedures.
- Installation and Testing: Reinstall the transmission in the machine. Fill with the correct type and amount of oil. Start the engine and test the transmission for proper operation.
- Final Check: After a short period of operation, check the oil level again and inspect for leaks.
Our technicians at XiaoHang Machinery warn: Never reuse old seals or gaskets. Always replace them with new ones during reassembly. Improper torqueing of bolts can also lead to leaks or component failure. Finally, ensure the replacement parts are genuine ZF or high-quality OEM equivalents. Inferior parts can lead to premature failure and further damage.
| Part Number | Name | Application | Notes |
|---|---|---|---|
| 4644306322 | PISTON | 6 WG 210 transmission | check availability |
| 4699003053 | GK20 II | 6 WG 210 transmission | |
| 4657109426 | 6 WG 210 transmission | ||
| 4657056133 | 6 WG 210 | Complete Transmission | |
| 0634303091 | O-RING | Various Locations | O-RING (0634303091) |
| 4657372015 | 6 WG 210 transmission | ||
| 4657155009 | POWER TAKE-OFF | 6 WG 210 transmission | |
| 4681101016 | TRANSMISSION HOUSING | 6 WG 210 transmission | |
| 4699205017 | ASSEMBLY PARTS | 6 WG 210 transmission | |
| 4644303179 | SPUR GEAR | 6 WG 210 transmission | |
| 2095346106 | DISC CARRIER | 6 WG 210 transmission | |
| 4661101835 | HOUSING | 6 WG 210 transmission | |
| 0750147037 | HOSE PIPE | 6 WG 210 transmission | |
| 0501232648 | FLANGE | 6 WG 210 transmission | |

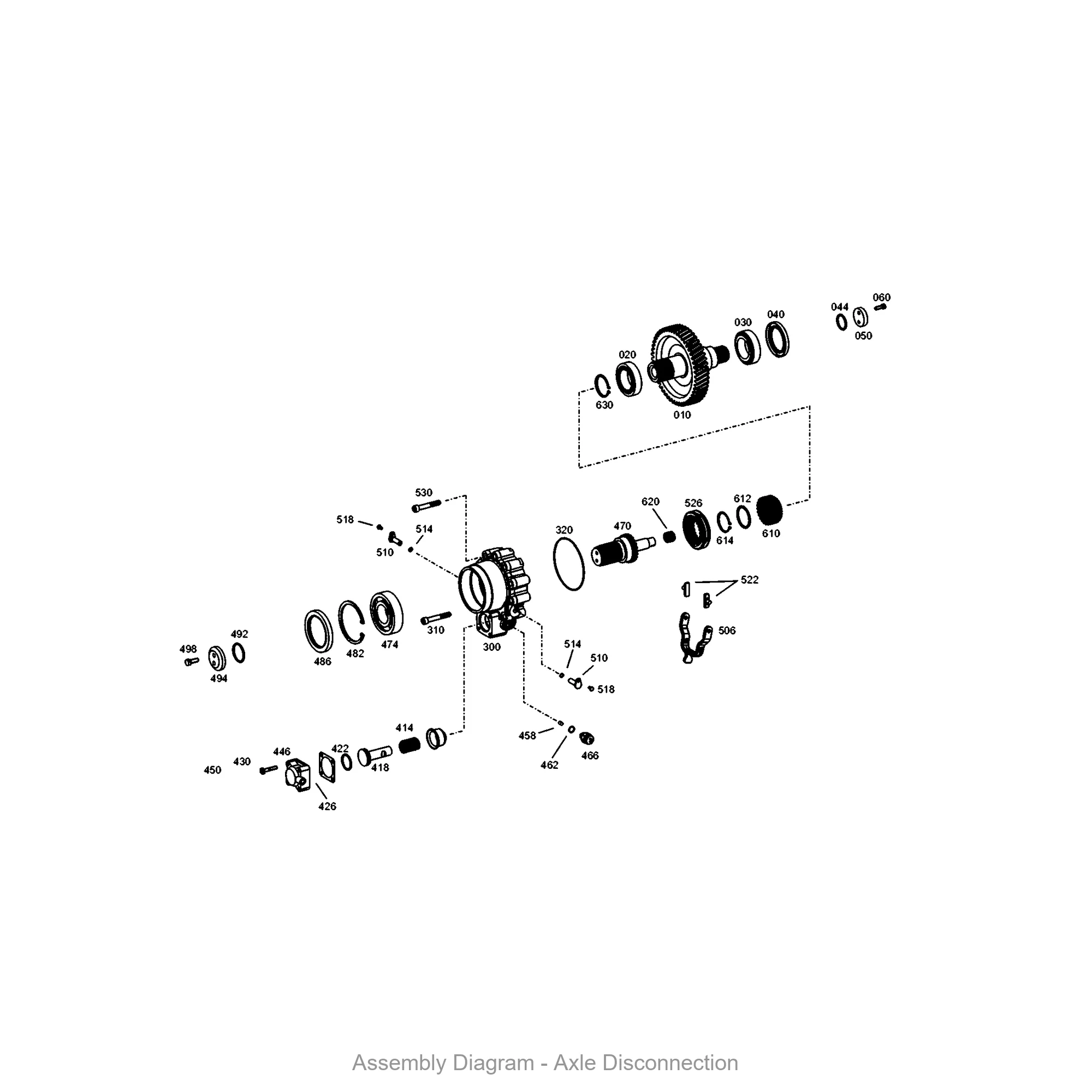

| 0630531076 | RETAINING RING | 6 WG 210 transmission |
