ZF 0634.801.152 SEALING RING
ZF Part Number: 0634.801.152 (also written as 0634801152 / 0634.801.152 / 0634 801 152)
OEM Cross Reference / Interchange Numbers
ZF 0634.801.152 (SEALING RING) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 柳工 | SP107544 | OEM Cross Ref |
| 山东临工 | 4110001671095 | OEM Cross Ref |
This ZF part (0634.801.152) directly replaces the following OEM numbers: 柳工: SP107544; 山东临工: 4110001671095. All listed cross-reference numbers are confirmed compatible with ZF 0634.801.152.
Compatible ZF Transmission Models
This sealing ring is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 3 WG 310(4)
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 181
- ZF 4 WG 200(500)
- ZF 4 WG 200(555/3)
- ZF 4 WG 200(555/5)
- ZF 4 WG 65
- ZF 4 WG 65 II(D)
- ZF 6 WG 150
- ZF 6 WG 180(500)
…and 10 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Control Unit | 030 | 2 |
| Control Unit | 210 | 2 |
| Countershaft | 200 | 8 |
| Loose Parts | 602 | 1 |
| Loose Parts | 99.290 | 2 |
| Loose Parts | 99.602 | 1 |
| Oil Pipe | 068 | 1 |
| Oil Pipe | 21.560 | 3 |
| Oil Pipe | 21.590 | 2 |
| Oil Pipe | 21.744 | 2 |
| Oil Pipe | 570 | 4 |
| Power Take Off | 350 | 3 |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0634.801.152?
ZF 0634.801.152 is an OEM sealing ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 3 WG 310(4), 4 WG 100(400), 4 WG 100(500), 4 WG 150. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0634.801.152?
This sealing ring is found in 25 ZF transmission variants, including: 3 WG 200, 3 WG 310(4), 4 WG 100(400), 4 WG 100(500), 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 181, 4 WG 200(500), 4 WG 200(555/3). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0634.801.152 installed in the transmission?
This sealing ring is located in the control unit area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 030 in the Control Unit section.
How do I look up ZF part 0634.801.152?
This part can be found under several formats: 0634801152 / 0634.801.152 / 0634 801 152. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0634.801.152).
When should I replace ZF 0634.801.152?
Replace this seal during every transmission overhaul or if you notice oil leakage at the seal location. Seals are wear items and should not be reused after removal.
Can I reuse ZF 0634.801.152 after disassembly?
No. ZF recommends always installing new seals during reassembly. Reusing seals may result in leaks and premature failure.
Where can I buy ZF 0634.801.152?
You can purchase genuine ZF 0634.801.152 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

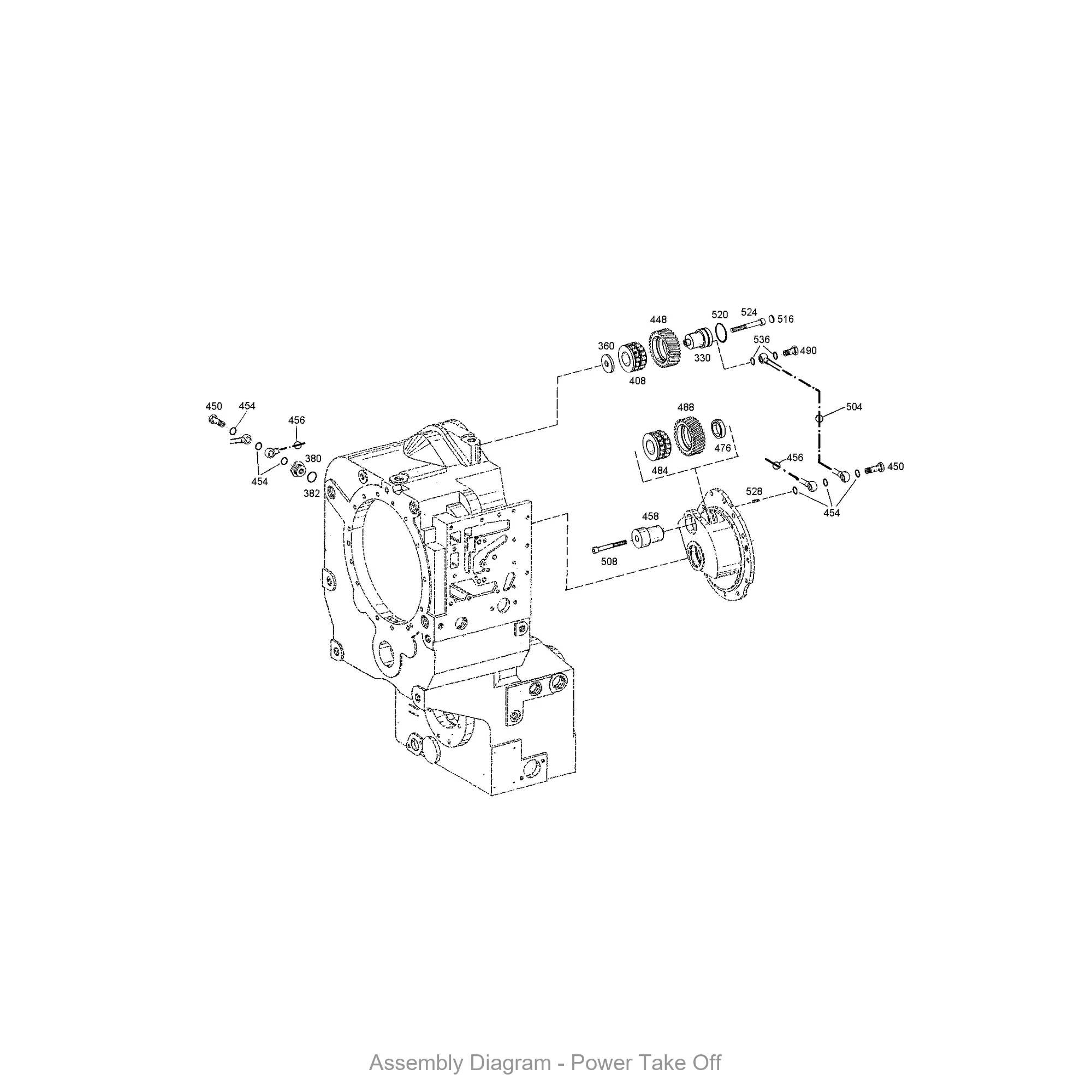

Exploded View / Assembly Diagram
The diagram below shows where ZF 0634.801.152 is located within the transmission assembly.
